Page 20 Installation manual for the CD72/95/15012
CD9031 EXPANDER
Cable entry from
top
Fixing hole
Fixing hole
Fixing hole
Fixing hole
Lid tamper
with lid tamper = Link 1-2
without lid tamper = Link 2-3
Expander Address
setting switches
Cable entry from
back
Cable entry from
bottom
Reverse
tampering
Zones
Outputs Four-wire bus
connection
Cover
tampering
Processor
AC BD
OAOB
TAM
1
2
3
4
5
6
7
8

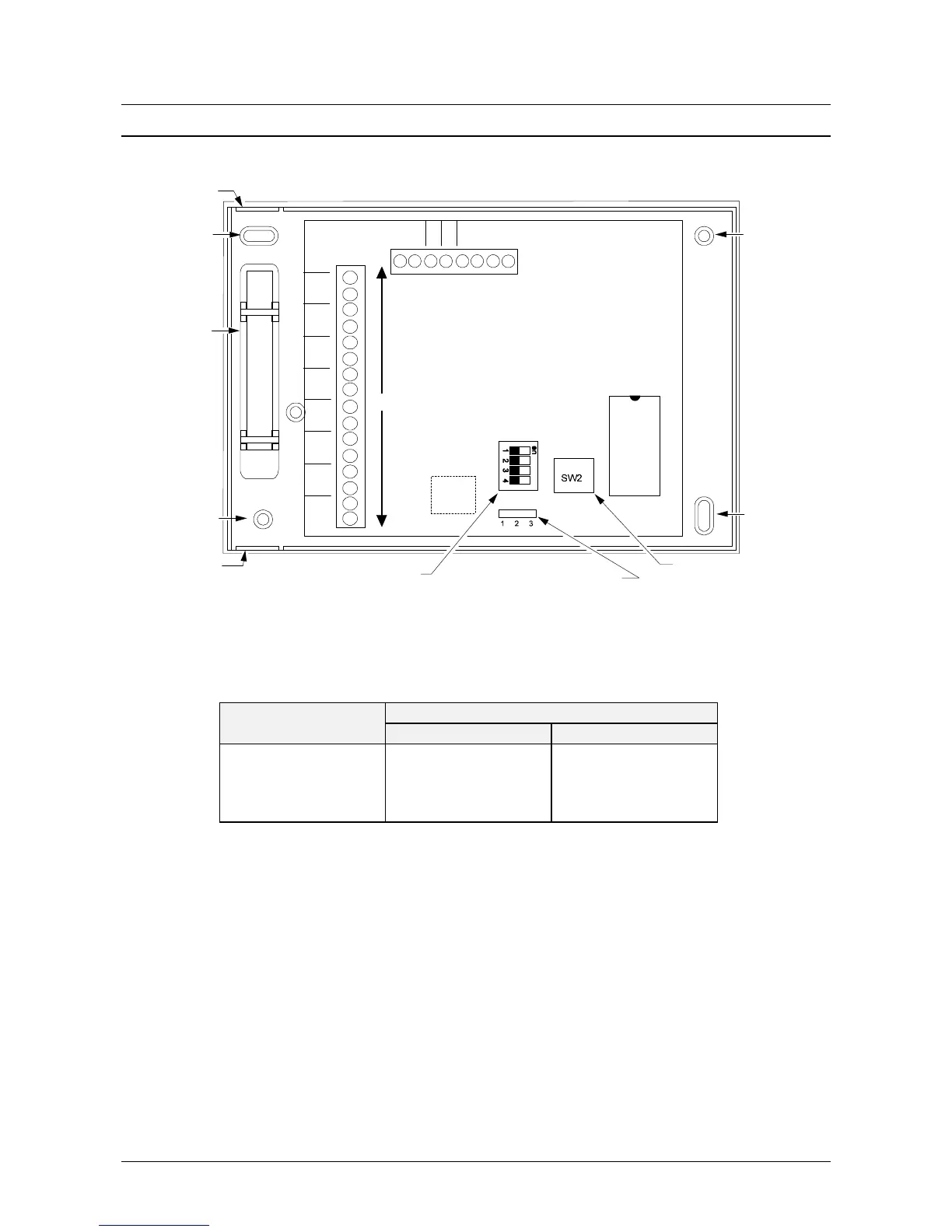

Figure 14. CD9031 expander
Remote Connection to
connections CD 72 CD 95/150
A 38 50
B 37 49
C 36 48
D 35 47
