Installation manual for CD72/95/15012 Page 9
2. Set the DIP switches of all the remote keypads and expanders.
Remote 1 must be a keypad.
CD72, remotes 2 to 4 must be keypads and remotes 5 and 6 expanders.
CD95/150, remotes 2 to 8 can be keypads or expanders but remotes 9 to 16 must be expanders.
1
2
3
4
ON
SD
Keypad 1
Keypad 1
(all off)
1
2
3
4
ON
SD
Remote 2
Keypad 2
1
2
3
4
ON
SD
Remote 3
Keypad 3
1
2
3
4
ON
SD
Remote 4
Keypad 4
CD95/150
CD72
1
2
3
4
ON
SD
Remote 5
Expander 1
1
2
3
4
ON
SD
Remote 6
Expander 2
1
2
3
4
ON
SD
Remote 7
1
2
3
4
ON
SD
Remote 8
CD95/150
CD72
1
2
3
4
ON
SD
Expander 9
1
2
3
4
ON
SD
Expander 10
1
2
3
4
ON
SD
Expander 11
1
2
3
4
ON
SD
Expander 12
CD95/150
only
1
2
3
4
ON
SD
Expander 13
1
2
3
4
ON
SD
Expander 14
1
2
3
4
ON
SD
Expander 15
1
2
3
4
ON
SD
Expander 16
CD95/150
only

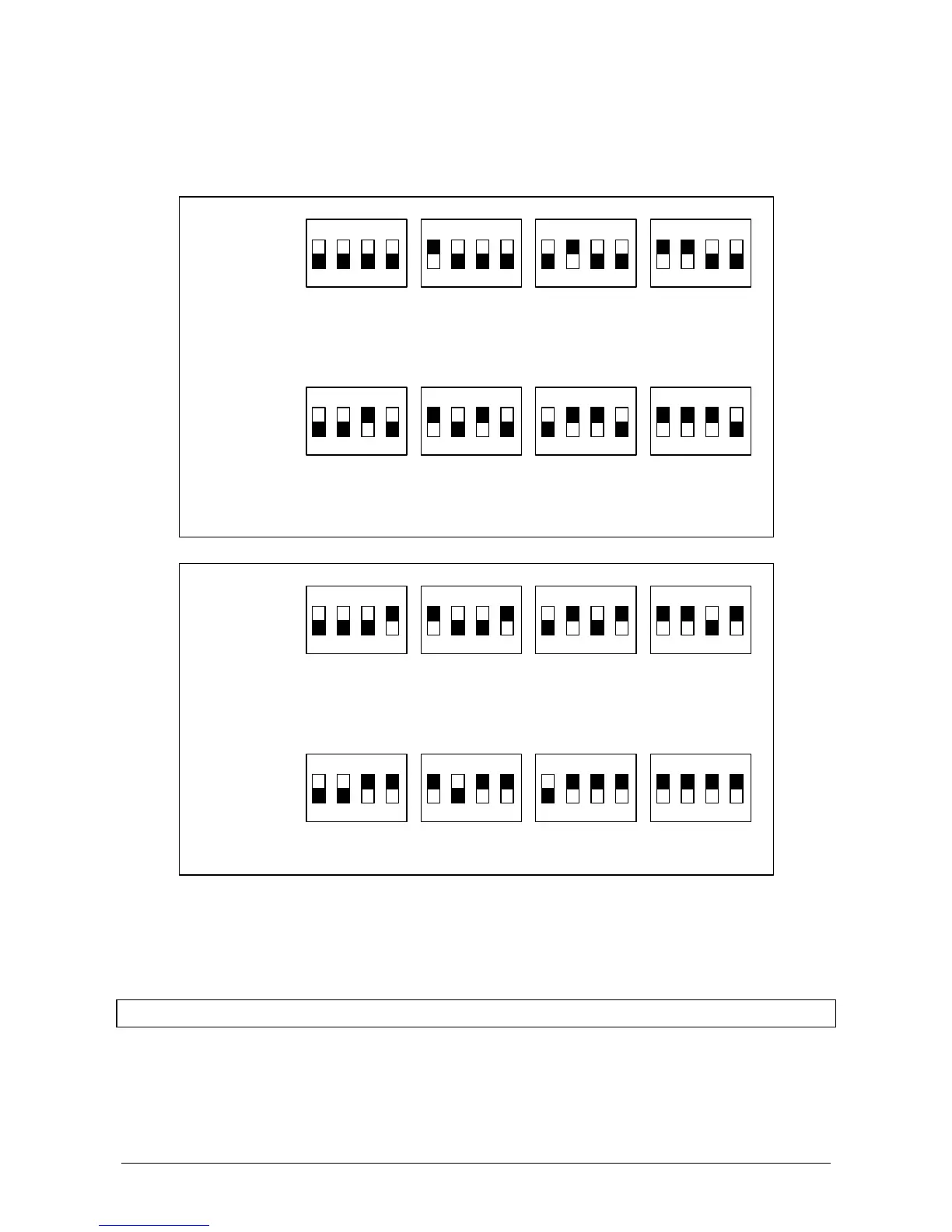

Figure 3. Overview of the dipswitches on remotes
3. Close the tamper switches on the remote keypads, expanders and the control panel. Also close all
zones which can cause a direct alarm. If this is not done, the system will be triggered as soon as it is
switched on.
4. Remove link LK1 or JP1 from the PCB so that it returns to default settings.
