ASROCK PHANTOM GAMING 4 B550 User Manual

B550 Phantom Gaming 4
9
English

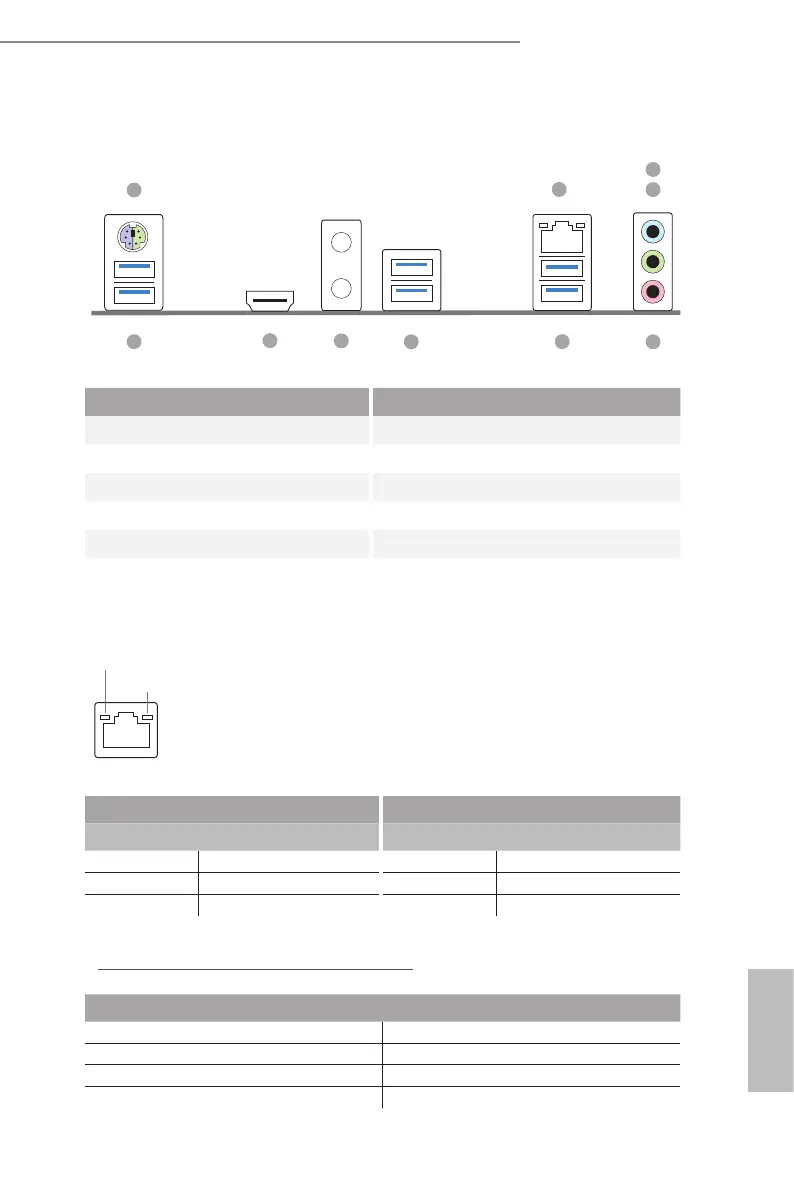

1.4 I/O Panel
1
10
6
7
2
5
4
3
8
9
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 6 USB 3.2 Gen1 Ports (USB3_5_6)
2 LAN RJ-45 Port* 7 USB 3.2 Gen1 Ports (USB3_3_4)
3 Line In (Light Blue)** 8 Antenna Bracket
4 Front Speaker (Lime)** 9 HDMI Port
5 Microphone (Pink)** 10 USB 3.2 Gen1 Ports (USB3_1_2)
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

ASROCK PHANTOM GAMING 4 B550 Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Maximum Memory	128GB
SATA 6Gb/s Ports	6
RAID Support	RAID 0, 1, 10
Memory Slots	4
M.2 Slots	2
USB 3.2 Gen2 Ports	2
LAN	Gigabit Ethernet
Audio	Realtek ALC1200 7.1-Channel High Definition Audio
Memory Speed	DDR4 4733MHz (OC)
Multi-GPU Support	AMD CrossFireX
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
