2.10 M.2 WiFi/BT Module Installation Guide (M2_2)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT module.
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module

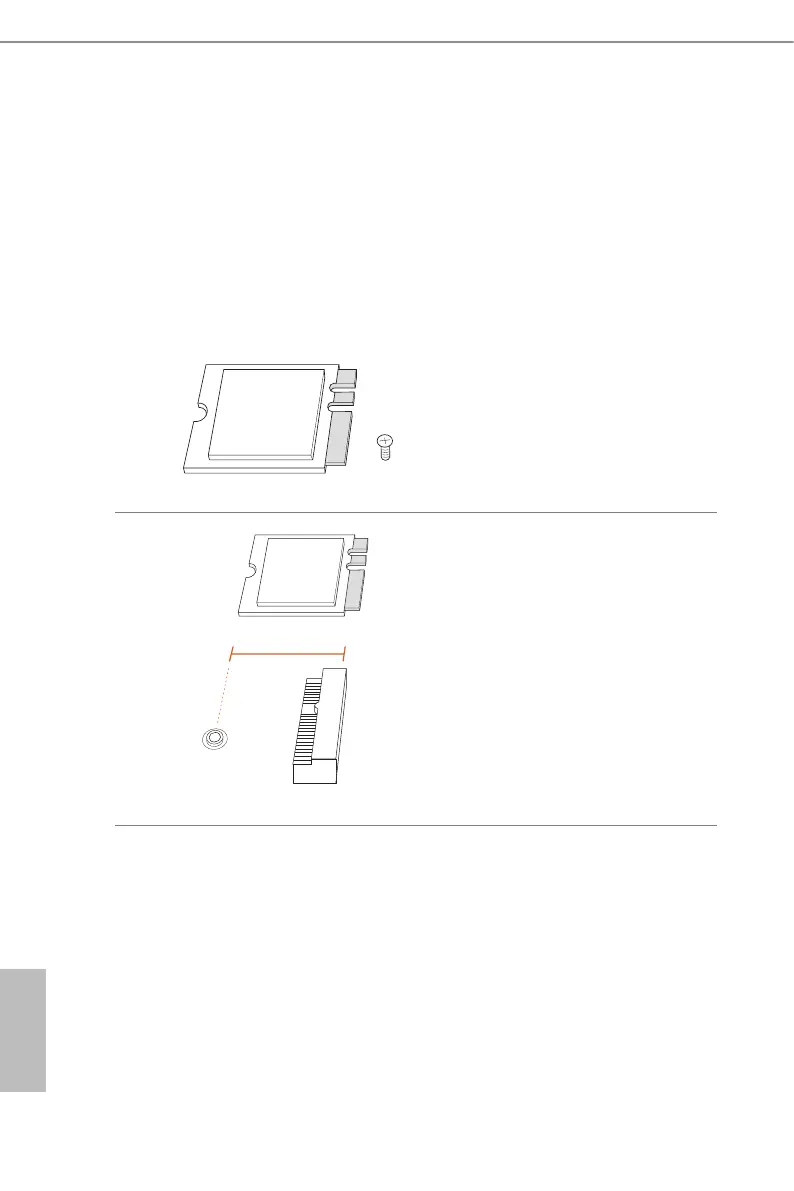

Step 1
Prepare a type 2230 WiFi/BT module
and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.

ASROCK PHANTOM GAMING 4 B550 Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Maximum Memory	128GB
SATA 6Gb/s Ports	6
RAID Support	RAID 0, 1, 10
Memory Slots	4
M.2 Slots	2
USB 3.2 Gen2 Ports	2
LAN	Gigabit Ethernet
Audio	Realtek ALC1200 7.1-Channel High Definition Audio
Memory Speed	DDR4 4733MHz (OC)
Multi-GPU Support	AMD CrossFireX
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
