ASROCK PHANTOM GAMING 4 B550 User Manual

English
40
2.11 M.2_SSD (NGFF) Module Installation Guide (M2_3)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket
(M2_
3) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express
module up to Gen3 x2 (16 Gb/s).
* M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be
disabled.

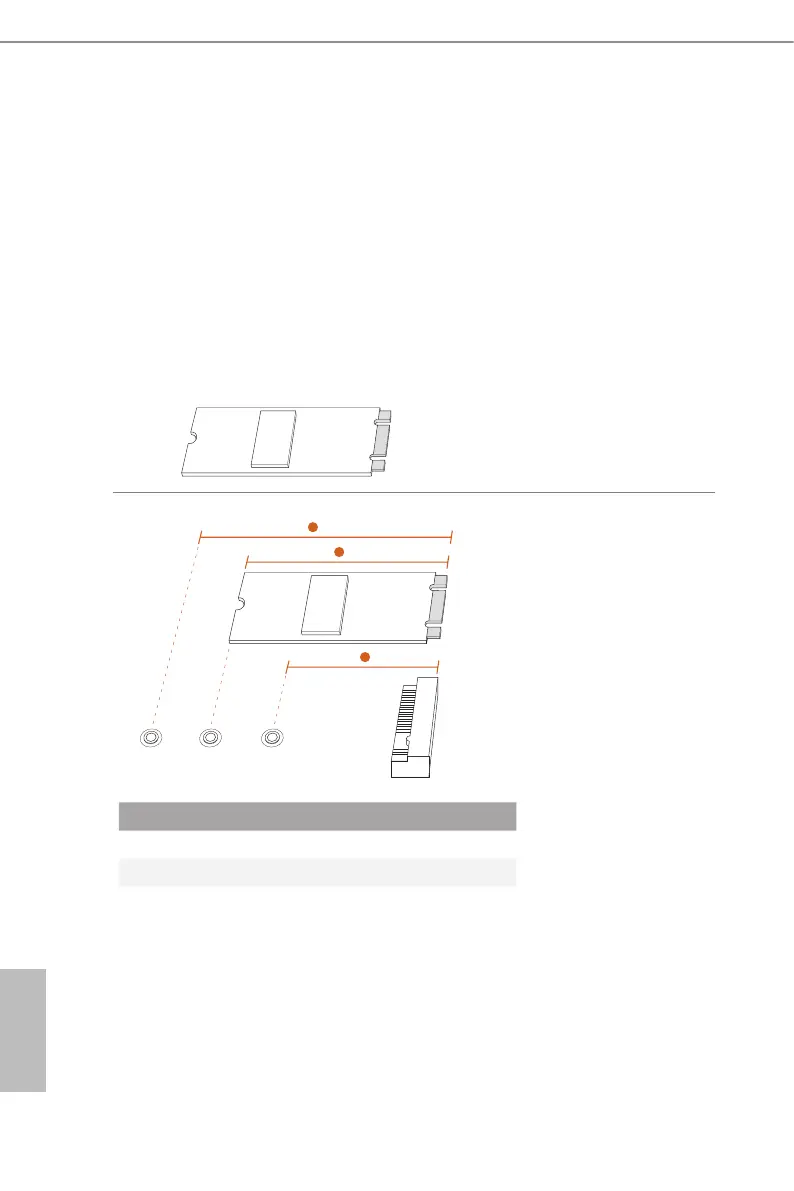

Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3
Nut Location A B C
PCB Length 4.2cm 6cm 8cm
Module Type Type 224 2 Type2260 Type 228 0
1
2
3
ABC

ASROCK PHANTOM GAMING 4 B550 Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Maximum Memory	128GB
SATA 6Gb/s Ports	6
RAID Support	RAID 0, 1, 10
Memory Slots	4
M.2 Slots	2
USB 3.2 Gen2 Ports	2
LAN	Gigabit Ethernet
Audio	Realtek ALC1200 7.1-Channel High Definition Audio
Memory Speed	DDR4 4733MHz (OC)
Multi-GPU Support	AMD CrossFireX
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
