ASUS DSBV-DX Series 2-21
The FB-DIMMs generate heat during continued operation. To ensure optimum
thermal condition and performance, install the optional MemCool FB-DIMM fan.
To install the optional FB-DIMM fan:

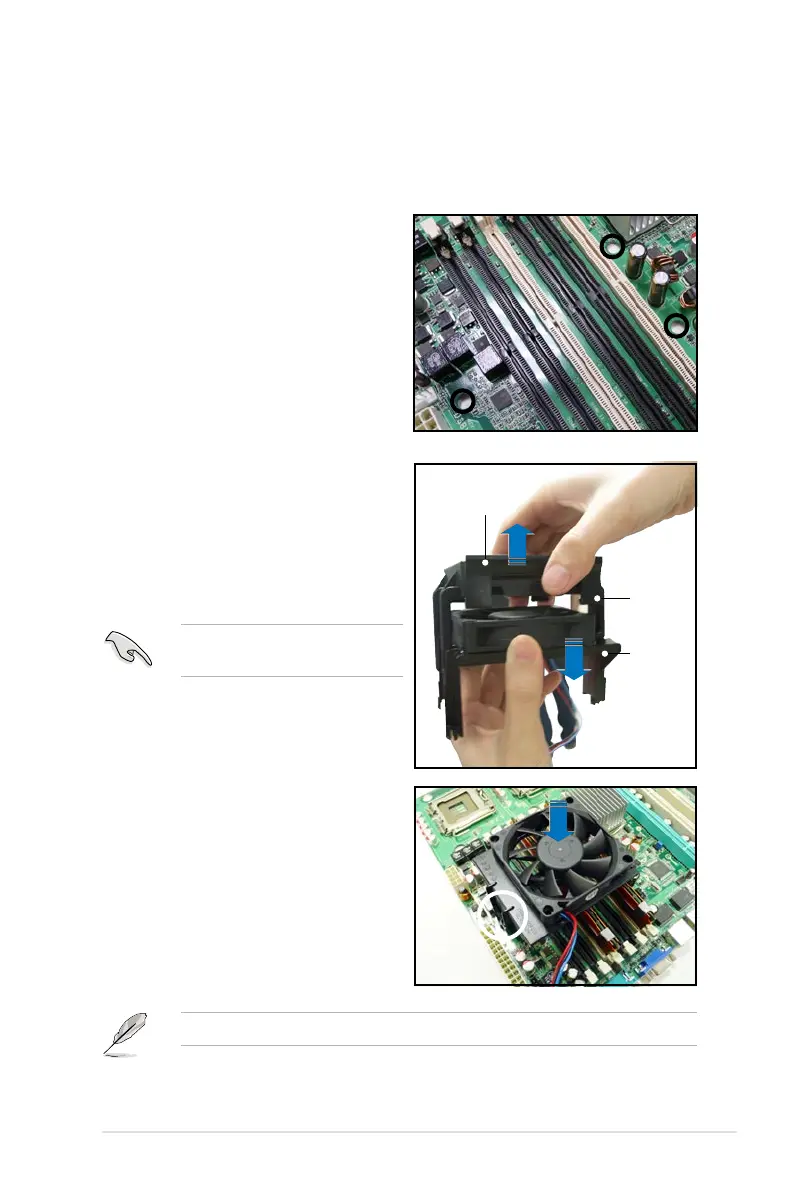

1. Locate the three FB-DIMM fan holes
on the motherboard.
2.4.6 Installing the MemCool FB-DIMM fan (opional)
2. Disengage the fan top cover from the
fan base. You can do this by rmly
gripping the top cover by the clamps
to release the hooks, then pull up the
top cover carefully until it separates
from the fan base.
DO NOT remove the fan from the
fan base.
3. Position the fan base over the
DIMMs, and insert the fan base
legs into the FB-DIMM holes until
the legs are securely in place.
For instructional purposes only, no FB-DIMM is installed on any of the slots.
Top cover
hook
Top cover
clamp
Fan
base
