ASUS DSBV-DX Series 2-33
2.7 Connectors

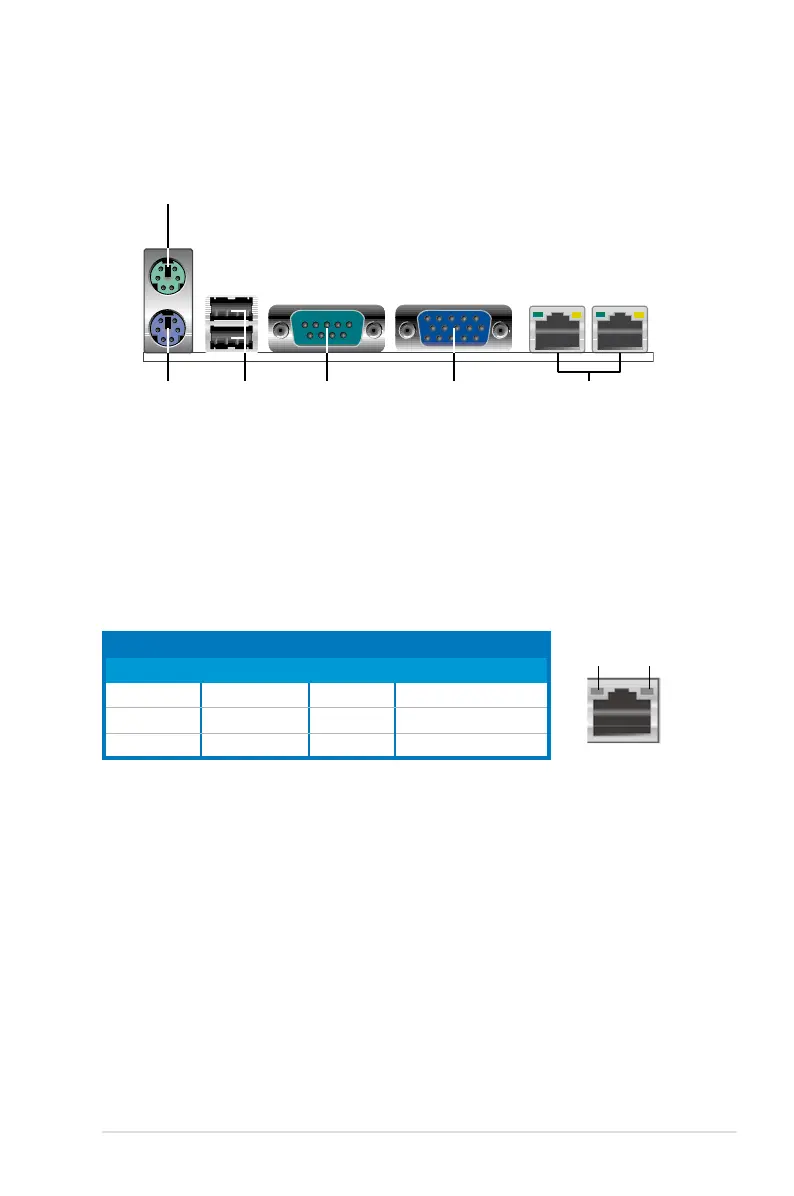

2.7.1 Rear panel connectors
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
4. Serial (COM1) port
. This 9-pin communication port is for pointing devices or
other serial devices.
5. Video Graphics Adapter port
. This port is for a VGA monitor or other VGA-
compatible devices.
6. LAN (RJ-45) ports
. These ports allow Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
1. PS/2
mouse port (green)
. This port is for a PS/2 mouse.
2. PS/2
keyboard port (purple)
. This port is for a PS/2 keyboard.
3.
USB 2.0 ports 1 and 2
. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
Activity/Link Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
