Asus M4N68T-M LE User Manual

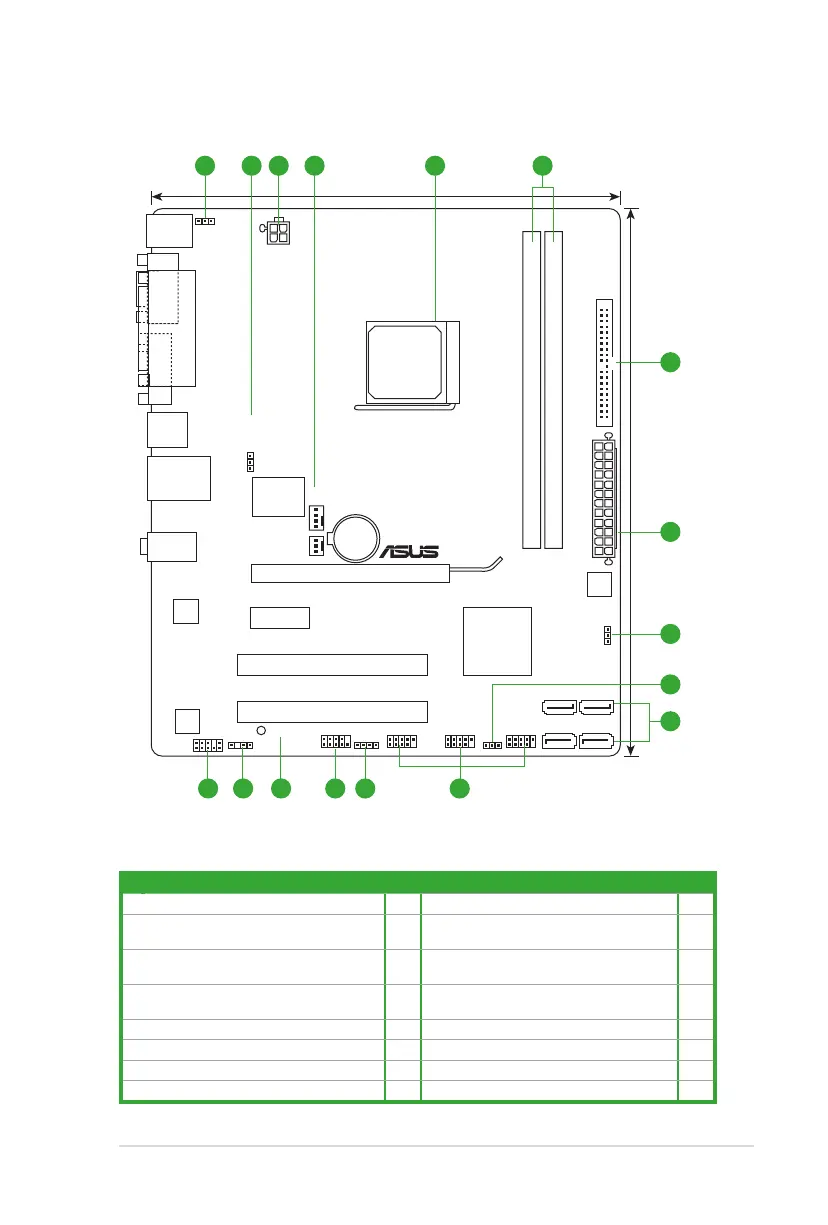

1.5.3 Motherboard layout
1.5.4 Layout contents
M4N68T-M LE
PCIEX16
PCIEX1_1
PCI1
PCI2
PRI_IDE
USB910
USB78USB56
AAFP
SPDIF_OUT
SPEAKER
ATX12V
EATXPWR
CPU_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8211CL
KB/MS
COM1
LPT
8Mb
BIOS
SB_PWR
CLRTC
USBPW5-10
USBPW1-4
KBPWR
NVIDIA
®
MCP68 SE
SOCKET AM3
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA1 SATA3
SATA2 SATA4
AUDIO
LAN1_USB12
USB34
CHA_FAN
F_PANEL
VGA
20.8cm(8.2in)
24.4cm(9.6in)
3 42 5
7
1 6
10111215 14 13
3
9
8
2
Connectors/Jumpers/Slots Page Connectors/Jumpers/Slots Page
1. Keyboard power (3-pin KBPWR) 1-19 9. Serial ATA connectors (7-pin SATA1-4) 1-24
2. USB device wake-up (3-pin USBPW1-4,
USBPW5-10)
1-19 10. USB connectors (10-1 pin USB56, USB78,
USB910)
1-26
3. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
1-22 11. Internal speaker connector (4- pin SPEAKER) 1-24
4. CPU and chassis fan connectors (4-pin
CPU_FAN and 3-pin CHA_FAN)
1-27 12. System panel connector (10-1 pin F_PANEL) 1-25
5. AMD CPU socket 1-8 13. Onboard LED 1-5
6. DDR3 DIMM sockets 1-11 14. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
7. IDE connector (40-1 pin PRI_IDE) 1-23 15. Front panel audio connector (10-1 pin AAFP) 1-21
8. Clear RTC RAM (CLRTC) 1-18
ASUS M4N68T-M LE 1-7

Asus M4N68T-M LE Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025 / nForce 630a
CPU Socket	AM3
Maximum Memory	8GB
Memory Type	DDR3
Storage Interface	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC662
LAN	10/100/1000Mbps
Video Ports	1 x VGA
CPU Type	Phenom II, Athlon II, Sempron
Memory Slots	2
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Audio	6-channel HD Audio
LAN Chipset	Realtek 8211CL
PS/2	2 (keyboard/mouse)
Dimensions	24.4cm x 18.8cm
Power Pin	24-pin ATX
USB Ports	10 x USB 2.0 (4 rear, 6 internal)

Summary

Chapter 1: Product introduction

Welcome!

Provides a brief welcome message to the user.

Package contents

Lists all items included in the motherboard package.

Special features

Highlights key features and technologies of the motherboard.

Before you proceed

Offers essential precautions before installing or changing settings.

Motherboard overview

Details the physical layout and components of the motherboard.

Central Processing Unit (CPU)

Covers installation and requirements for the CPU.

System memory

Explains system memory installation and configurations.

Expansion slots

Describes different expansion slots available on the motherboard.

Jumpers

Details the function and configuration of system jumpers.

Connectors

Identifies and describes various motherboard connectors.

Software support

Information on installing operating systems and support DVD contents.

Chapter 2: BIOS information

Managing and updating your BIOS

Guides on how to manage and update the system BIOS.

BIOS setup program

Explains how to enter and navigate the BIOS setup utility.

Main menu

Overview of the BIOS Main menu and basic system information.

Advanced menu

Details advanced BIOS settings for CPU and system devices.

Power menu

Configuration options for ACPI and APM settings.

Boot menu

Options for configuring system boot device priority and settings.

Tools menu

Access to special function utilities within the BIOS.

Exit menu

Options for saving, discarding, or loading BIOS settings.

M4N68T-M LE specifications summary

CPU

Details the CPU socket type and supported processors.

Chipset

Specifies the motherboard chipset information.

Front side bus

Indicates the front side bus speed.

Memory

Describes memory architecture and supported DDR3 modules.

Graphics

Details the integrated graphics capabilities.

Expansion slots

Lists the available expansion slots.

Storage / RAID

Information on SATA connectors and RAID support.

LAN

Specifies the LAN controller and speed.

Audio

Details the onboard audio capabilities.

USB

Information on USB port count and version.

Back panel I/O ports

Lists the ports available on the rear panel.

Internal I/O connectors

Details the internal connectors for I/O devices.

BIOS

Information about the BIOS chip and version.

ASUS special features

Lists unique features and utilities provided by ASUS.

ASUS overclocking features

Details features for CPU and system overclocking.

Accessories

Lists the included accessories with the motherboard.

Support DVD

Content information for the motherboard support DVD.

Form factor

Specifies the physical dimensions of the motherboard.
