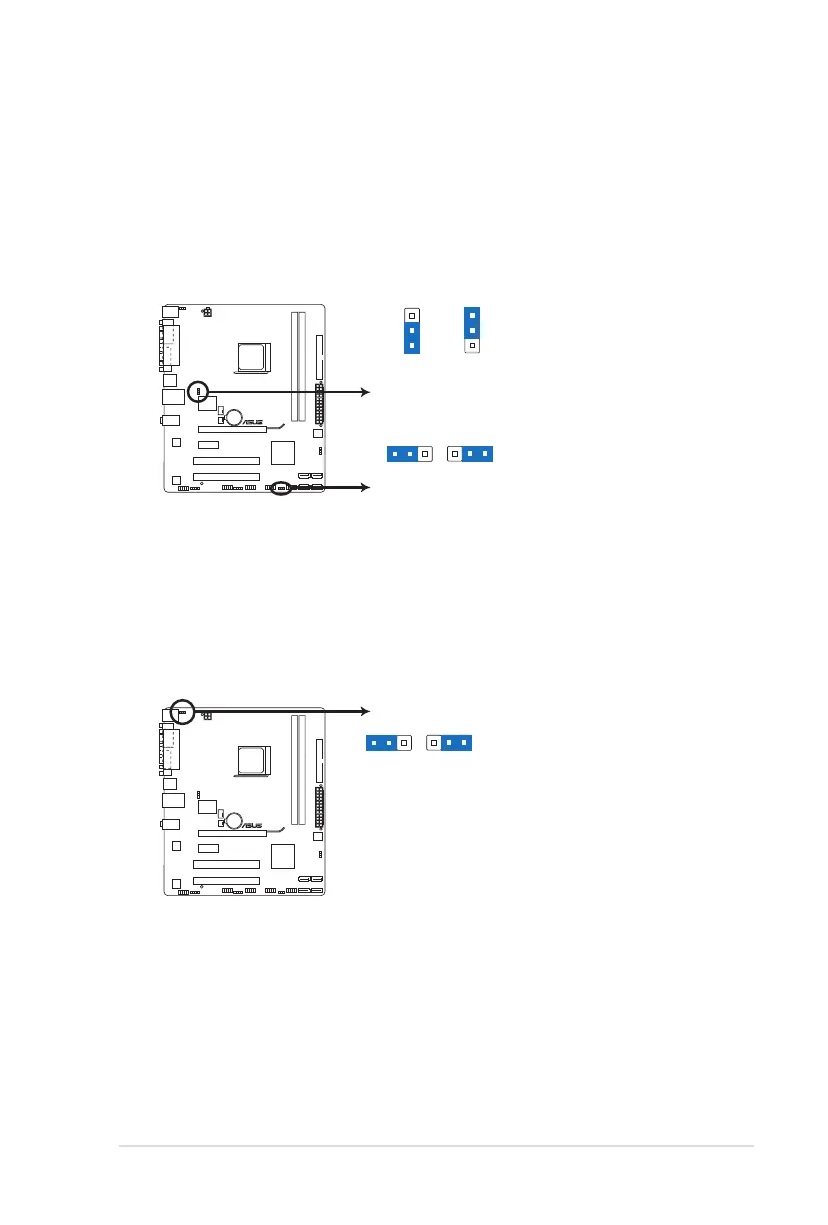

2. USB device wake-up (3-pin USBPW1-4, USBPW5-10)
Set these jumpers to +5V to wake up the computer from S1 sleep mode (CPU stopped,
DRAM refreshed, system running in low power mode) using the connected USB
devices. Set these jumpers to +5VSB to wake up the computer from S3 and S4 sleep
modes (no power to CPU, DRAM in slow refresh, power supply in reduced power
mode).
M4N68T-M LE
M4N68T-M LE USB Device Wake Up
21
2 3
+5V
(Default)
+5VSB
USBPW5-10
21
2 3
+5V
+5VSB
(Default)
USBPW1-4
3. Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up feature. When you
set this jumper to pins 2-3 (+5VSB), you can wake up the computer by pressing a key
on the keyboard (the default is the Space Bar). This feature requires an ATX power
supply that can supply at least 1A on the +5VSB lead, and a corresponding setting in
the BIOS.
M4N68T-M LE
M4N68T-M LE Keyboard Power Setting
21
2 3
+5V
(Default)
+5VSB
KBPWR
ASUS M4N68T-M LE 1-19

Asus M4N68T-M LE Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025 / nForce 630a
CPU Socket	AM3
Maximum Memory	8GB
Memory Type	DDR3
Storage Interface	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC662
LAN	10/100/1000Mbps
Video Ports	1 x VGA
CPU Type	Phenom II, Athlon II, Sempron
Memory Slots	2
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Audio	6-channel HD Audio
LAN Chipset	Realtek 8211CL
PS/2	2 (keyboard/mouse)
Dimensions	24.4cm x 18.8cm
Power Pin	24-pin ATX
USB Ports	10 x USB 2.0 (4 rear, 6 internal)
