Asus M4N68T-M LE User Manual

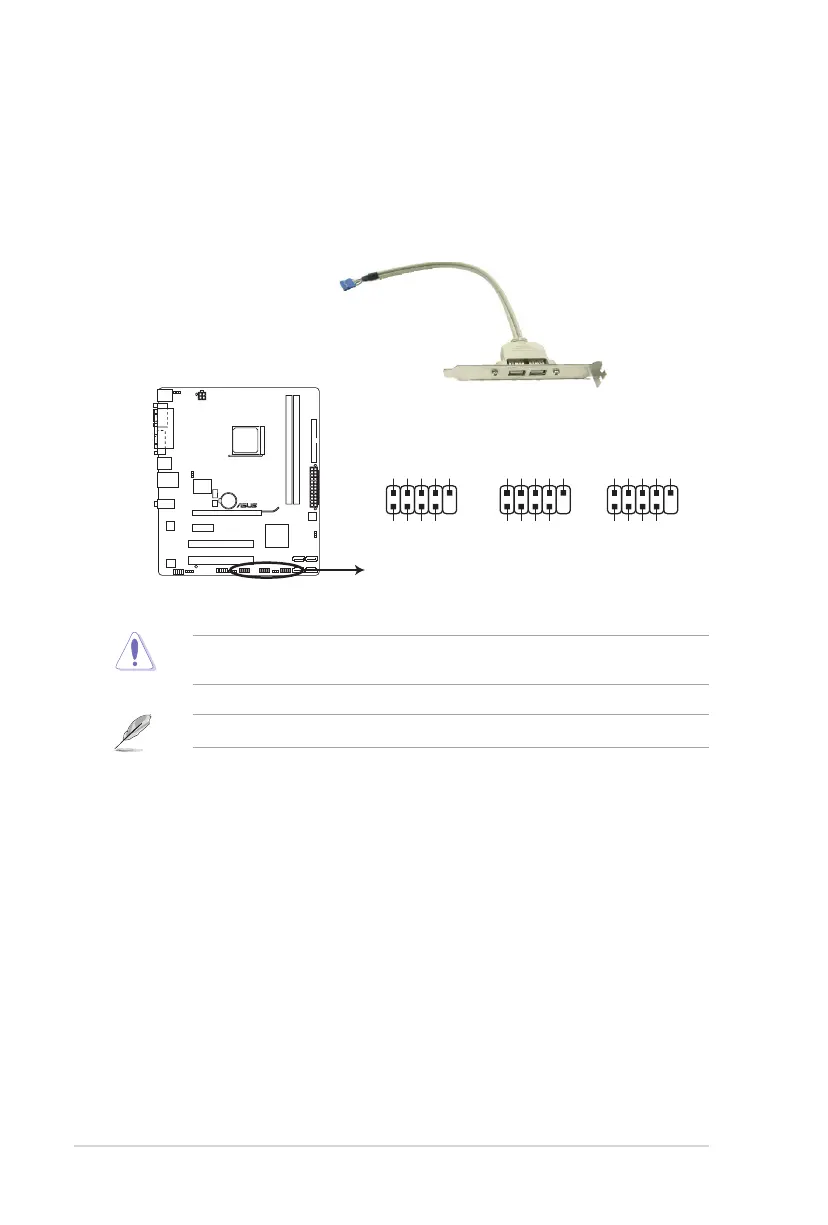

7. USB connectors (10-1 pin USB56, USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
M4N68T-M LE
M4N68T-M LE USB2.0 connectors
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910USB78
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB56
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
Chapter 1: Product introduction1-26

Asus M4N68T-M LE Specifications

General

Form Factor	Micro ATX
Chipset	NVIDIA GeForce 7025 / nForce 630a
CPU Socket	AM3
Maximum Memory	8GB
Memory Type	DDR3
Storage Interface	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC662
LAN	10/100/1000Mbps
Video Ports	1 x VGA
CPU Type	Phenom II, Athlon II, Sempron
Memory Slots	2
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Audio	6-channel HD Audio
LAN Chipset	Realtek 8211CL
PS/2	2 (keyboard/mouse)
Dimensions	24.4cm x 18.8cm
Power Pin	24-pin ATX
USB Ports	10 x USB 2.0 (4 rear, 6 internal)
