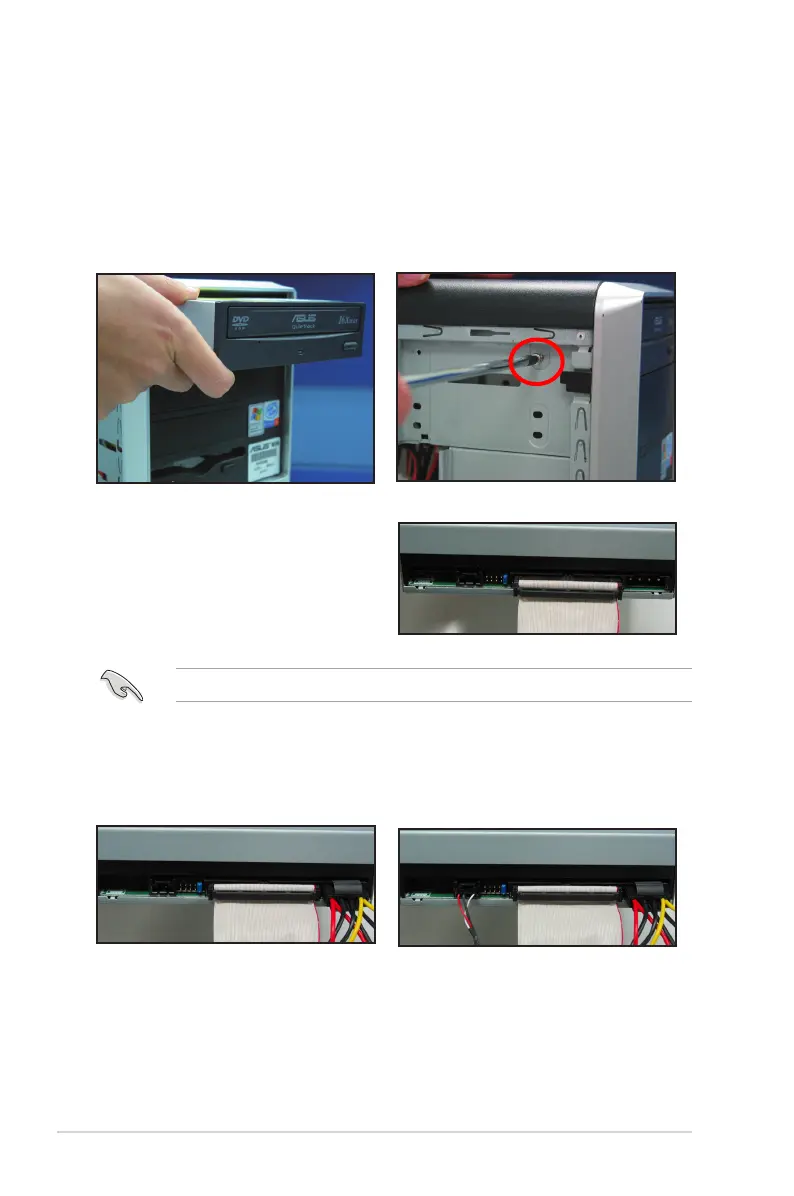

1-18 Chapter 1: Quick Start
1.7 Installing disk drives
1.7.1 PATA optical disk drive
1. Remove the dummy cover and
slide the optical disk drive into the
bay.
2. Align with the screw holes and
secure the disk drive with screws.
3. Orient and plug the IDE cable into
the optical drive. The red stripe on
the IDE cable is the pin1 end and
should match the dimple marking
Pin1 on the optical drive.
4. Connect the 4-pin power cable to
the optical drive.
5. Attach the audio cable to the
connector on the optical drive.
IDE cables are dummy-proof. Never force the IDE cable into the connector.
