ASUS Motherboard installation guide 1-27
1.10 Peripheral devices and accessories

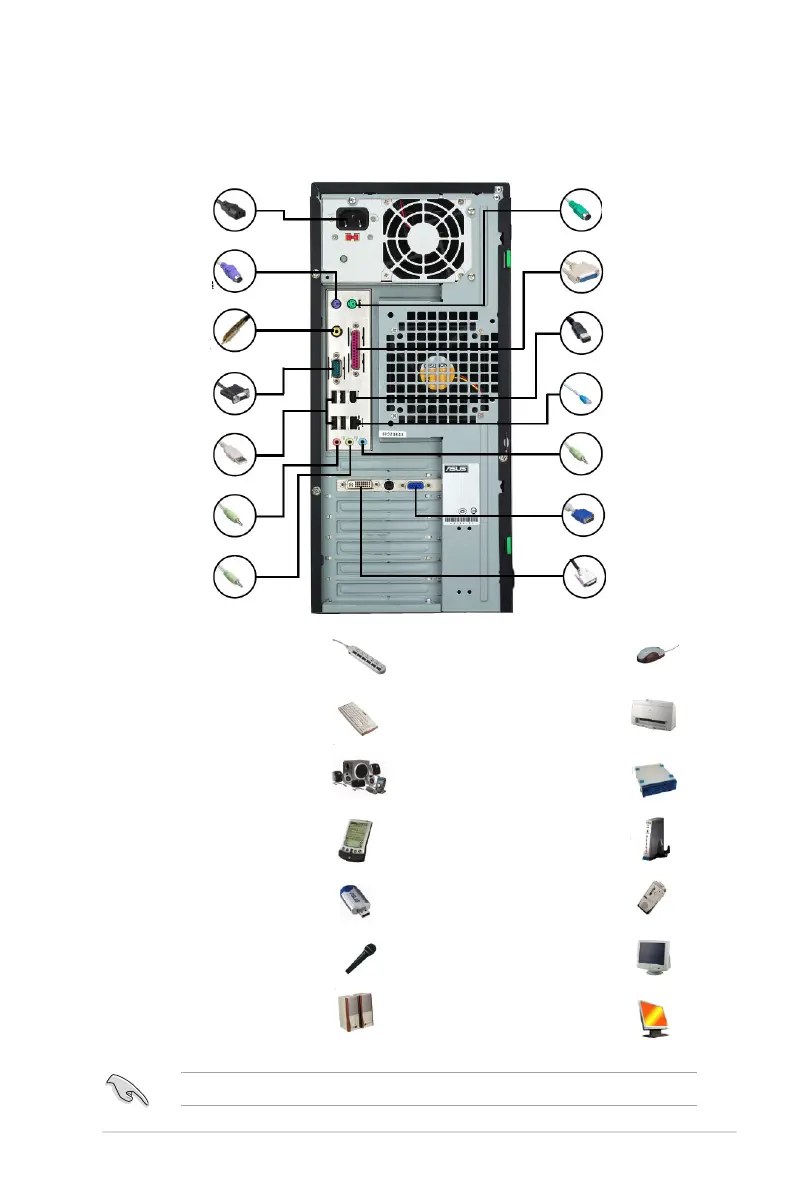

Refer to the gure for connecting the peripheral devices and accessories.
8. PS/2
mouse port
2. PS/2 keyboard
port
1. AC power plug
3. S/PDIF out port
4. Serial port
5. USB port
6. Microphone port
7. Line out port 14. DVI port
13. Video graphics
adapter port
12. Line in port
11. LAN (RJ45) port
10. IEEE1394 port
9. Parallel port
1. AC Power plug + power
extension cord
2. PS/2 keyboard port +
keyboard
3. S/PDIF out port + digital
5.1 speaker system
4. Serial port + PDA dock
5. USB port + USB devices
6. Microphone port +
microphone
7. Line out port + speaker
8. PS/2 mouse port +
mouse
9. Parallel port + printer
10. IEEE1394 port + external
hard disk drive
11. LAN (RJ45) port + modem
12. Line in port + recorder
13. VGA port + CRT monitor
14. DVI port + LCD monitor
The rear panel connectors vary with models. Refer to the user guide for details.
