2-20 Chapter 2: Hardware information
Chapter 2
2.2.8 Internal connectors
1. Intel
®

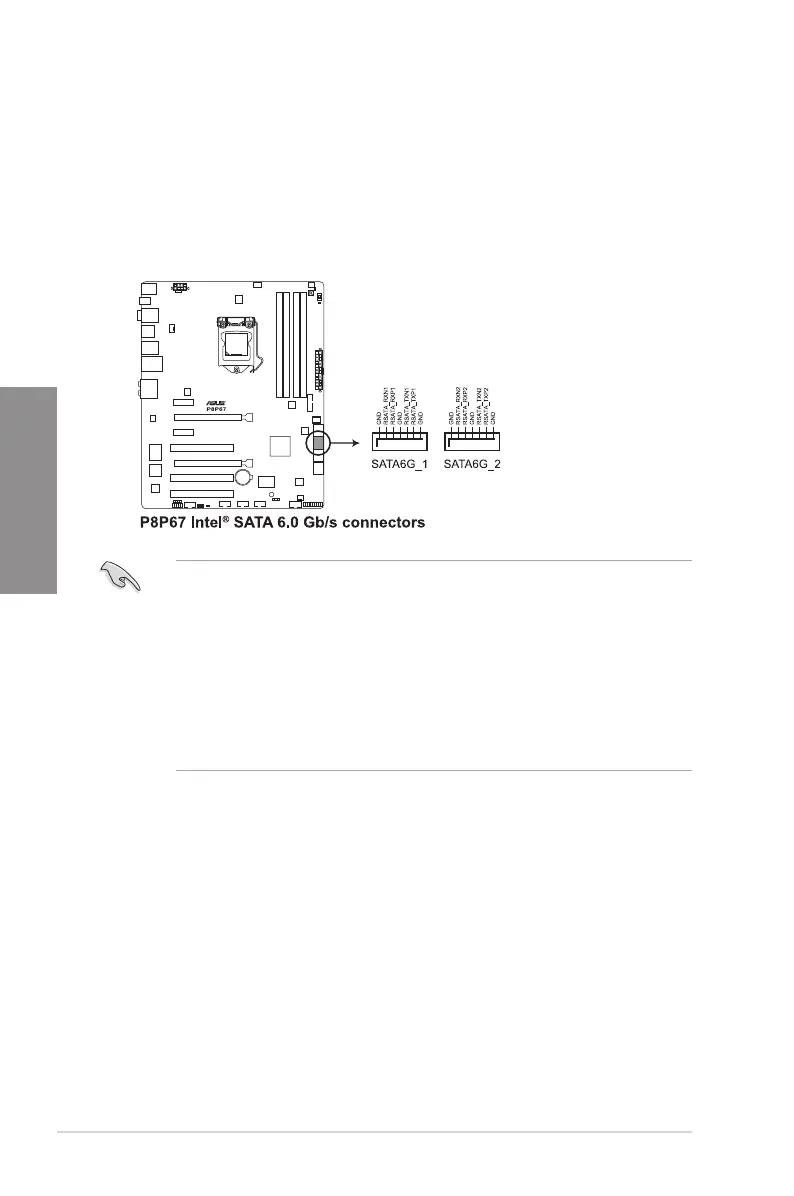

P67 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
conguration with the Intel
®
Rapid Storage Technology through the onboard Intel
®
P67
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the
SATA Mode
item in the BIOS to [RAID
Mode]. Refer to section
3.5.4 SATA Conguration
for details.
• When using hot-plug and NCQ, set the
SATA Mode
item in the BIOS to [AHCI Mode].
Refer to section
3.5.4 SATA Conguration
for details.
• Before creating a RAID set, refer to section
4.4 RAID congurations
or the manual
bundled in the motherboard support DVD.
• You must install Windows
®
XP Service Pack 2 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP2 or later versions.
