Asus P8P67 User Manual

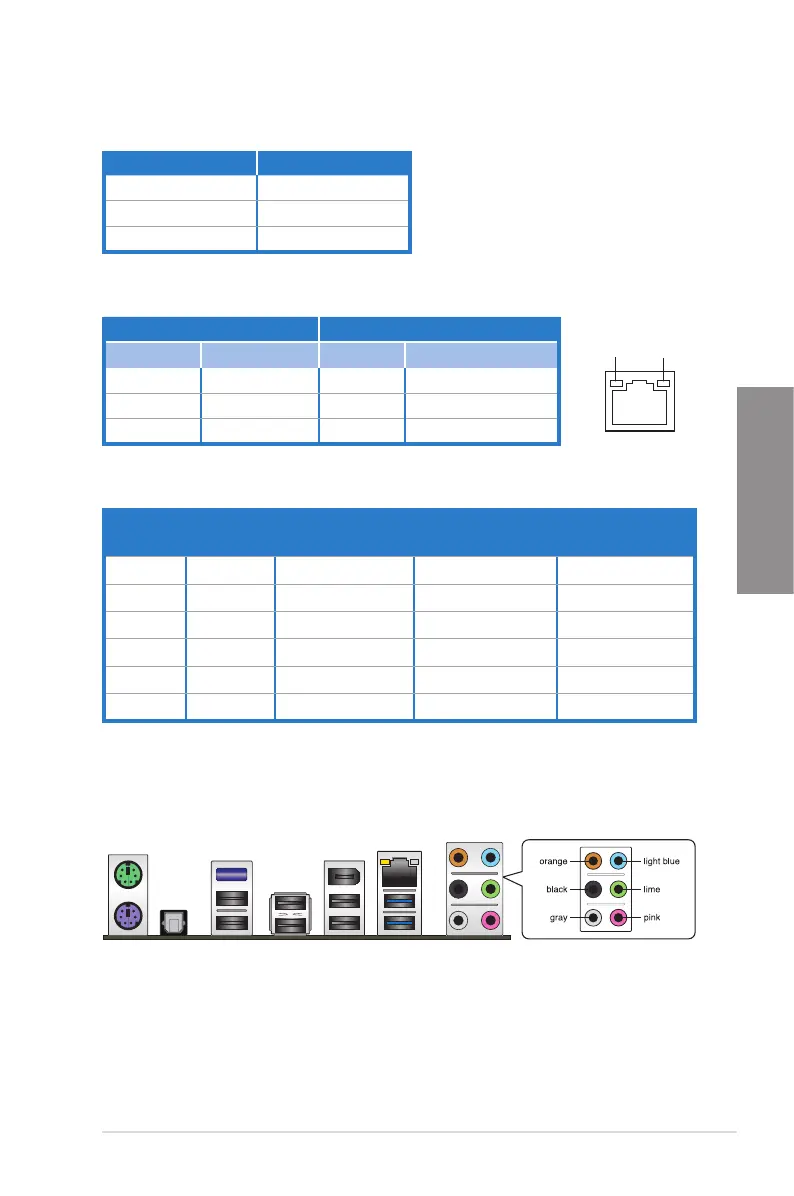

ASUS P8P67 2-43
Chapter 2
2.3.11 Audio I/O connections
Audio I/O ports
***Audio 2, 4, 6, or 8-channel conguration
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
** LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
* Bluetooth module LED indications
Status Description
Off No link
Blue Linked
Blinking Data activity

Asus P8P67 Specifications

General

Chipset	Intel P67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16	2
PCI Express x1 Slots	2
PCIe 3.0 x16	No
PCIe 2.0 x16	2
PCIe 2.0 x1	2
PCI Slots	3
SATA Ports	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
USB Ports	14
USB 2.0 Ports	12
USB 3.0 Ports	2
Form Factor	ATX
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
LAN	Realtek 8111E
