Asus X99-E-10G WS User Manual

3-36
Chapter 3: BIOS Setup
Chapter 3

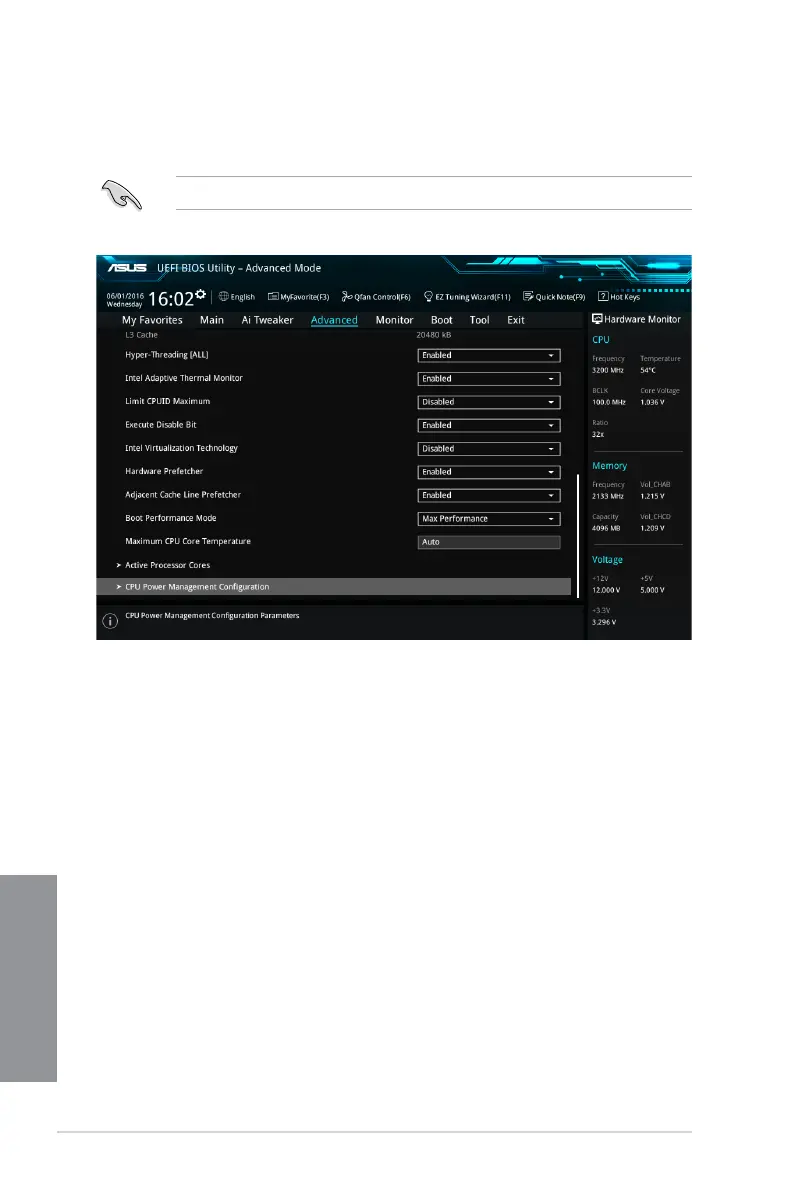

3.6.1 CPU Configuration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items in this menu may vary based on the CPU installed.
Hyper-Threading [ALL] [Enabled]
This item allows you to enable or disable the Hyper-Threading for logical processor threads.
Conguration options: [Disabled] [Enabled]
Intel Adaptive Thermal Monitor [Enabled]
This item allows you to protect the CPU by decreasing its frequency as it reaches the thermal
throttle point. The thermal monitor includes TM1 (Thermal monitor 1), TM2 (Thermal monitor
2), and EMTTM (Enhanced Multi-threaded Thermal Monitoring).
Conguration options: [Disabled] [Enabled]
Limit CPUID Maximum [Disabled]
When set to [Enabled], this item allows the legacy OS to boot even without support for CPUs
with extended CPUID functions.
Conguration options: [Disabled] [Enabled]
Execute Disable Bit [Enabled]
Execute Disable prevents certain classes of malicious buffer overow attacks when combined
with a supporting OS (SuSE Linux 9.2, RedHat Enterprise 3 Update 3).
Conguration options: [Disabled] [Enabled]
Scroll up or down to display other BIOS items.

Asus X99-E-10G WS Specifications

General

ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3333 MHz
HDD size	2.5/3.5 \
PCI Express power connectors (6-pin)	1
Processor socket	LGA 2011-v3
Intel Xeon series	E5-1600, E5-2600
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Graphics card family	AMD, NVIDIA
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
RAID levels	0, 1, 5, 10
Number of HDDs supported	10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Audio chip	Realtek ALC1150
Component for	Workstation
Motherboard chipset	Intel® X99
Audio output channels	7.1 channels
Motherboard form factor	CEB
PCI Express x16 (Gen 3.x) slots	7

Weight and Dimensions

Depth	267 mm
Width	305 mm
