Asus X99-E-10G WS User Manual

ASUS X99-E-10G WS
3-51
Chapter 3

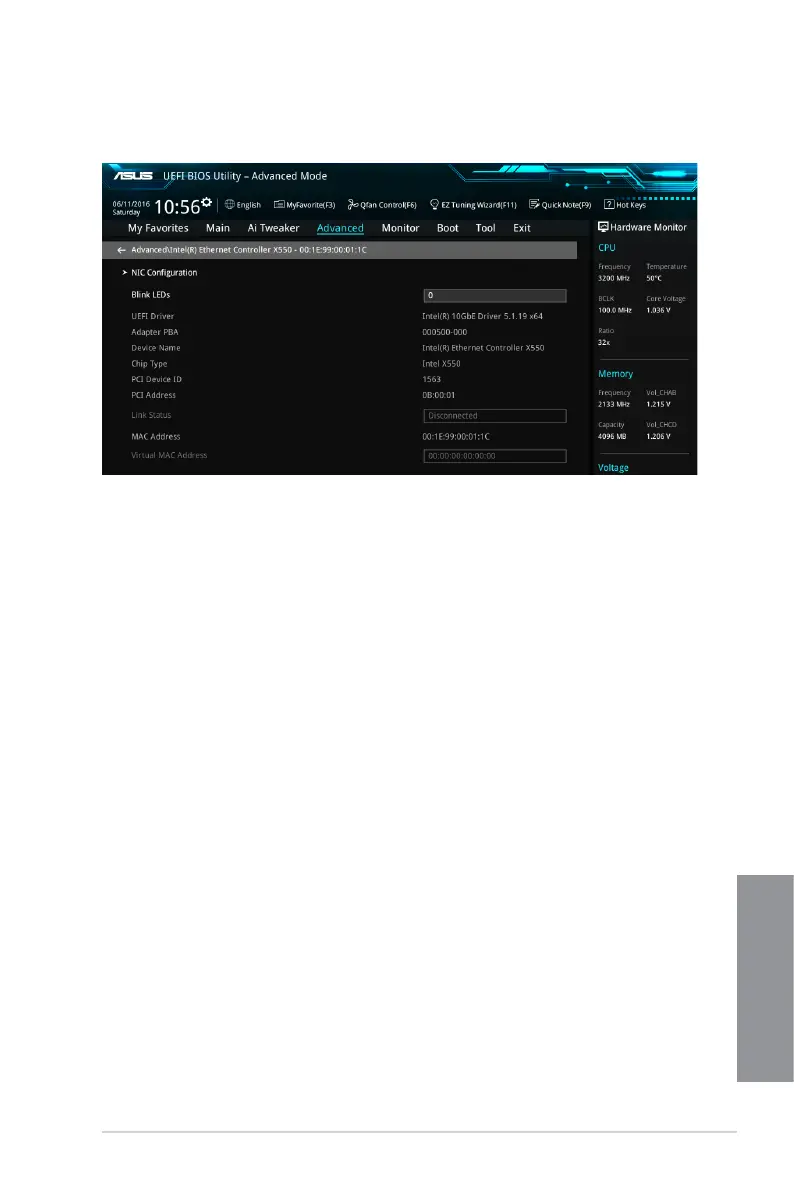

NIC Configuration
The items in this menu allow you to congure the boot protocol, Wake-on LAN, link speed,
and virtual LAN.
Link Speed [Auto Negotiated]
This item allows you to specify the port speed used for the selected boot protocol.
Conguration options: [Auto Negotiated] [10 Mbps Half] [10 Mbps Full] [100 Mbps Half]
[100 Mbps Full]
Wake On LAN [Enabled]
This item allows you enable/disable the server to be powered on using an in-band
magic packet.
Blink LEDs [0]
This item allows you to identify the physical network port with the blinking associated LEDs.
Use the number keys to key in the number. The values range from 0 to 15.
3.6.12 Intel(R) Ethernet Controller - 00:1E:99:00:01:1C
This menu allows you to congure the parameters of the 10 Gigabit Ethernet device

Asus X99-E-10G WS Specifications

General

ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3333 MHz
HDD size	2.5/3.5 \
PCI Express power connectors (6-pin)	1
Processor socket	LGA 2011-v3
Intel Xeon series	E5-1600, E5-2600
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Graphics card family	AMD, NVIDIA
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
RAID levels	0, 1, 5, 10
Number of HDDs supported	10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Audio chip	Realtek ALC1150
Component for	Workstation
Motherboard chipset	Intel® X99
Audio output channels	7.1 channels
Motherboard form factor	CEB
PCI Express x16 (Gen 3.x) slots	7

Weight and Dimensions

Depth	267 mm
Width	305 mm
