Chapter 6
4. Alignandrmlyinsertthe3-waySLI
bridgeconnectortothegoldngerson
each graphics card. Ensure that the
connectorisrmlyinplace.
5. Connect three independent auxiliary
power sources from the power supply
to the three graphics cards separately.
6. ConnectaVGAoraDVIcabletothe
graphics card.

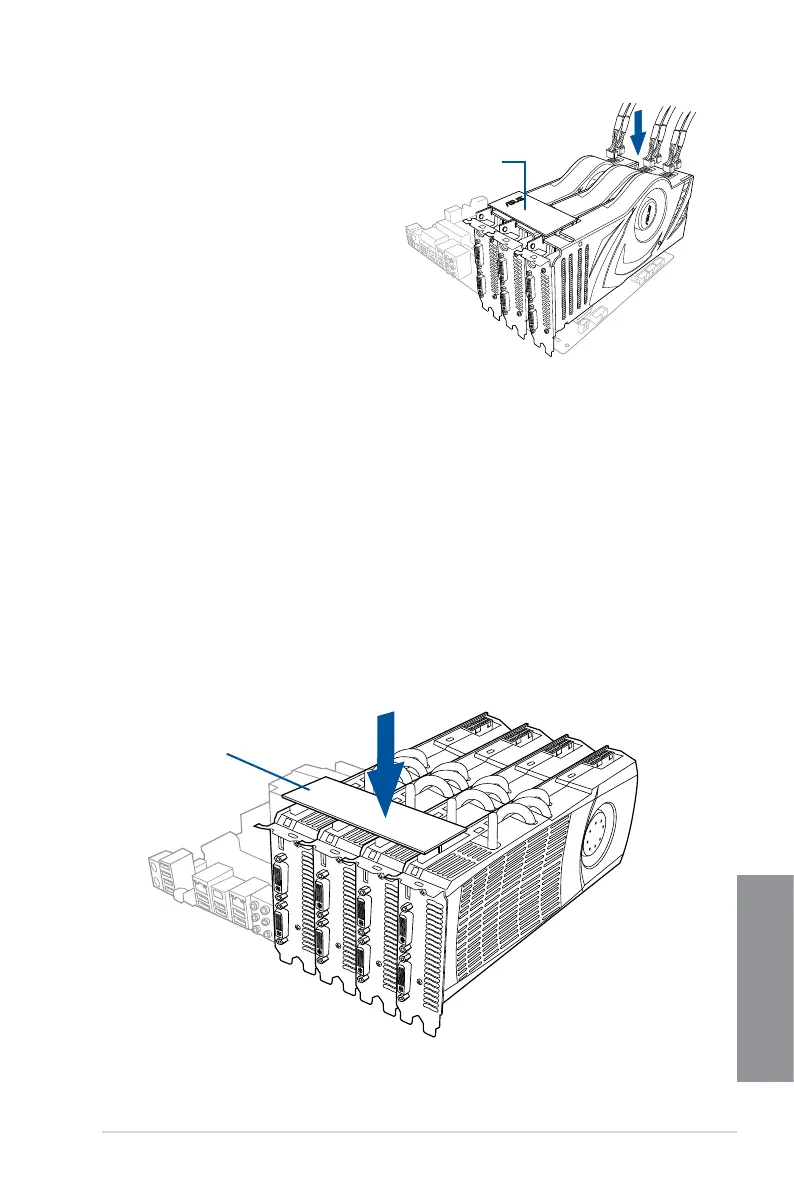

3-way SLI bridge
6.2.4 Installing four SLI-ready graphics cards
To install four SLI-ready graphics cards:
1. Prepare four SLI-ready graphics cards.
2. Insert the four graphics cards into the PCIEX16 slots. If your motherboard has more
than two PCIEX16 slots, refer to Chapter 1 in this user manual for the locations of the
PCIEX16 slots recommended for multi-graphics card installation.
3. Ensure that the cards are properly seated on the slots.
4. Alignandrmlyinsertthe4-waySLIbridgeconnectortothegoldngersoneach
graphicscard.Ensurethattheconnectorisrmlyinplace.
5. Connect four independent auxiliary power sources from the power supply to the four
graphics cards separately.
6. ConnectaVGAoraDVIcabletothegraphicscard.
4-way SLI bridge

Asus X99-E-10G WS Specifications

General

ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3333 MHz
HDD size	2.5/3.5 \
PCI Express power connectors (6-pin)	1
Processor socket	LGA 2011-v3
Intel Xeon series	E5-1600, E5-2600
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Graphics card family	AMD, NVIDIA
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
RAID levels	0, 1, 5, 10
Number of HDDs supported	10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Audio chip	Realtek ALC1150
Component for	Workstation
Motherboard chipset	Intel® X99
Audio output channels	7.1 channels
Motherboard form factor	CEB
PCI Express x16 (Gen 3.x) slots	7

Weight and Dimensions

Depth	267 mm
Width	305 mm
