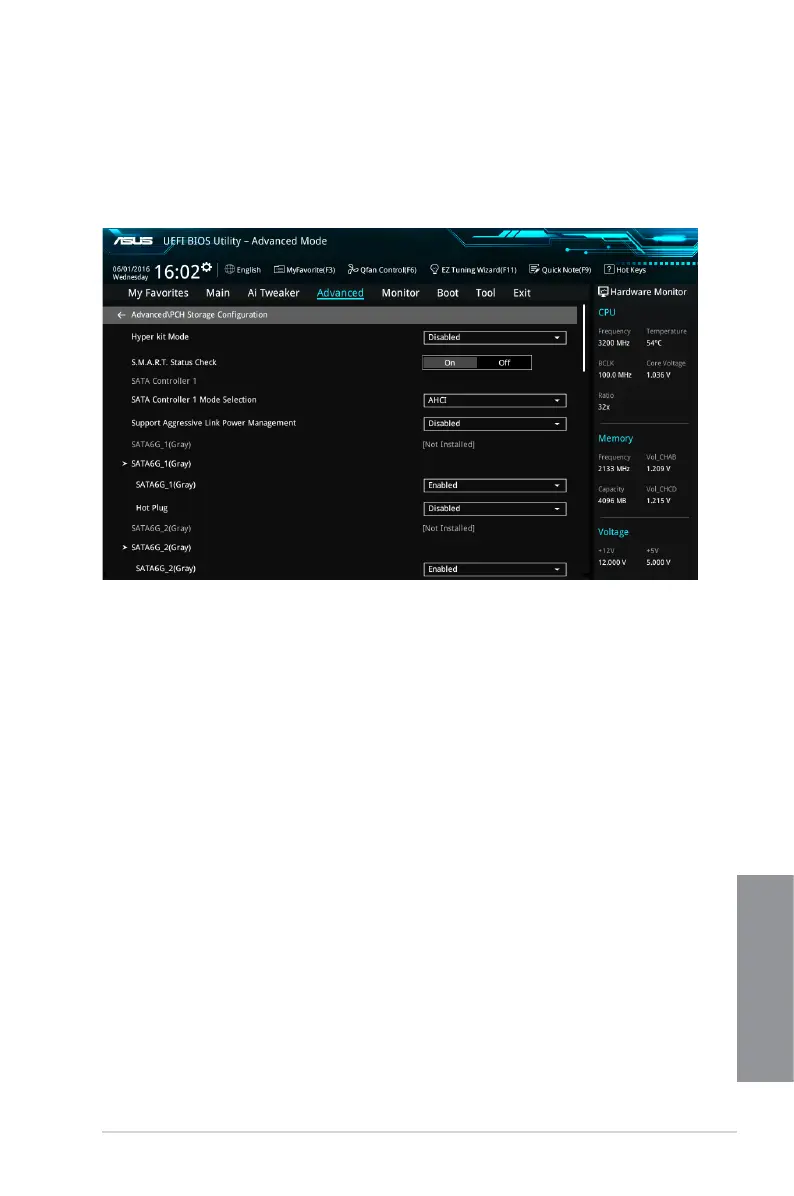

3.6.3 PCH Storage Configuration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The
SATA Port items show [Not Installed] if no SATA device is installed to the corresponding
SATA port.
Scroll up or down to display other BIOS items.
Hyper kit Mode [Disabled]
Disable this option for M.2 devices. Enable this option for “ASUS Hyper kit” card.
Conguration options: [Disabled] [Enabled]
S.M.A.R.T. Status Check [On]
SMART (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system that
shows a warning message during POST (Power-On Self Test) when an error occurs in the
hard disks.
Conguration options: [On] [Off]
SATA Controller 1
SATA Controller 1 Mode Selection [AHCI]
This item allows you to set the SATA conguration.
[Disabled] Disable the SATA function.
[IDE] Use SATA hard disk as Parallel ATA storage devices
[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard storage
driver to enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to internally
optimize the order of commands.
[RAID] Set to [RAID] when you want to create a RAID conguration from the SATA
hard disk drives.

Asus X99-E-10G WS Specifications

General

ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3333 MHz
HDD size	2.5/3.5 \
PCI Express power connectors (6-pin)	1
Processor socket	LGA 2011-v3
Intel Xeon series	E5-1600, E5-2600
Processor manufacturer	Intel
Compatible processor series	Intel® Xeon®
Graphics card family	AMD, NVIDIA
Parallel processing technology support	4-Way CrossFireX, 4-Way SLI
RAID levels	0, 1, 5, 10
Number of HDDs supported	10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Audio chip	Realtek ALC1150
Component for	Workstation
Motherboard chipset	Intel® X99
Audio output channels	7.1 channels
Motherboard form factor	CEB
PCI Express x16 (Gen 3.x) slots	7

Weight and Dimensions

Depth	267 mm
Width	305 mm
