Asus Z97-P User Manual

1-2
Chapter 1: Product introduction
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.

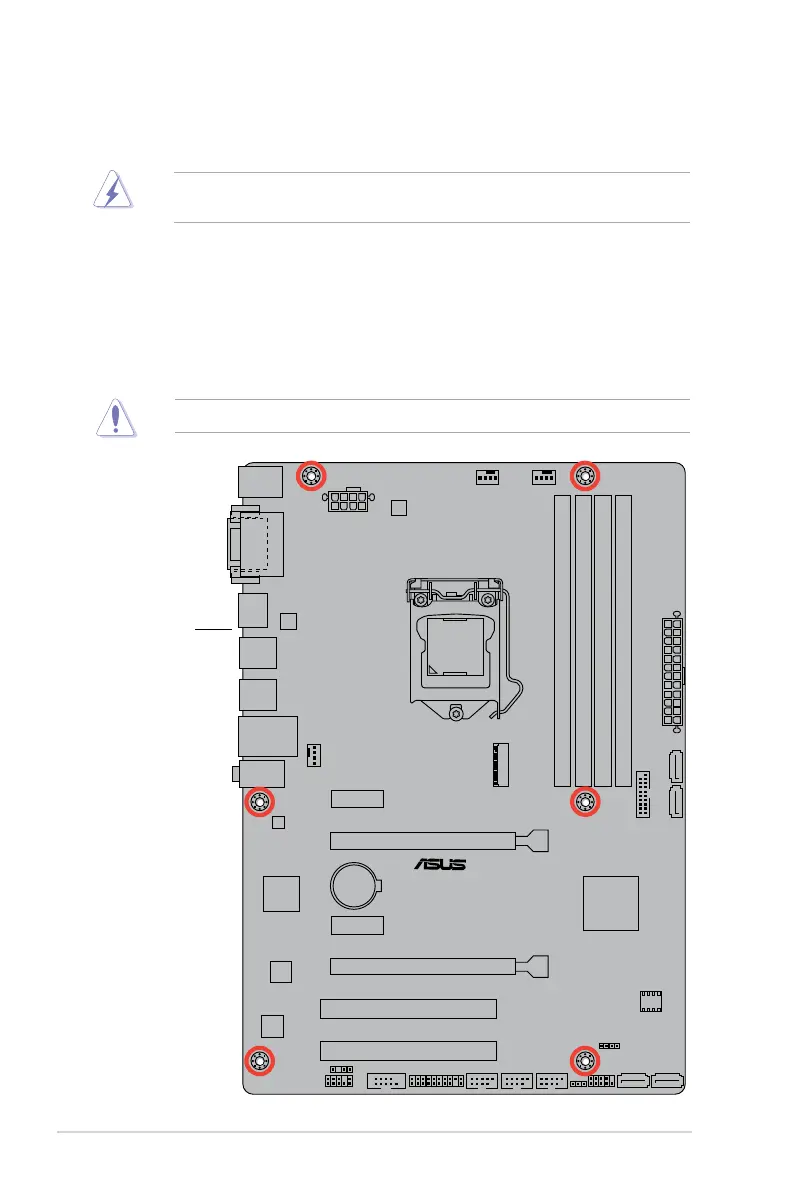

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.
Place this side
towards the rear
of the chassis
Z97-P

Asus Z97-P Specifications

General

Form Factor	ATX
Chipset	Intel Z97
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	2
PCIe x1 Slots	2
PCI Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111GR, 1 x Gigabit LAN Controller(s)
RAID Support	Yes
Memory Standard	DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 MHz
SATA Express Ports	1 x SATA Express
M.2 Slot	1
USB 2.0 Ports	8 x USB 2.0
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 at mid-board)
