2.7 Monitor menu

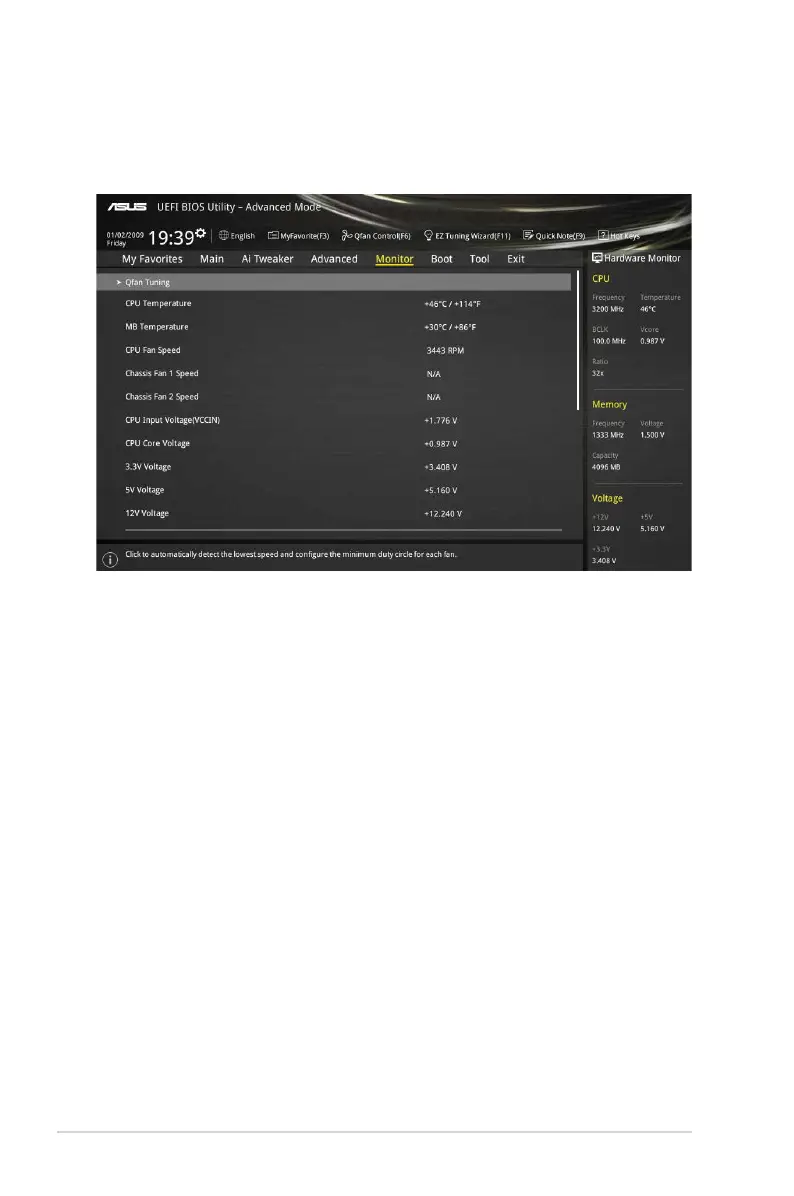

The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
2.7.1 Qfan Tuning
Click this item to automatically detect the lowest speed and congure the minimum duty cycle
for each fan.
2.7.2 CPU/ MB Temperature [xxxºC/xxxºF]/ [Ignore]
The onboard hardware monitor automatically detects and displays the CPU and motherboard
temperatures. Select [Ignore] if you do not wish to display the detected temperatures.
2.7.3 CPU Fan/ Chassis Fan 1/2 Speed [xxxx RPM]/ [Ignore]/
[N/A]
The onboard hardware monitor automatically detects and displays the CPU and chassis fan
1/2 speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the
eld shows N/A. Select [Ignore] if you do not wish to display the detected speed.
2.7.4 CPU Input Voltage (VCCIN), CPU Core Voltage, 3.3V
Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select [Ignore] if you do not want to detect this item.
2.7.5 CPU Q-Fan Control [Enabled]
[Enabled] Enables the CPU Q‑Fan control feature.
[Disabled] Disables the CPU Q‑Fan control feature.
Scroll down to display the other BIOS items.
2-40 Chapter 2: Getting started

Asus Z97-P Specifications

General

Form Factor	ATX
Chipset	Intel Z97
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	2
PCIe x1 Slots	2
PCI Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111GR, 1 x Gigabit LAN Controller(s)
RAID Support	Yes
Memory Standard	DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 MHz
SATA Express Ports	1 x SATA Express
M.2 Slot	1
USB 2.0 Ports	8 x USB 2.0
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 at mid-board)
