Chapter 1: Product introduction
3. Intel
®
Z97 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/ssignalcables.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,1,5,and10
congurationwiththeIntel
®
RapidStorageTechnologythroughtheonboardIntel
®
Z97
chipset.
• Theseconnectorsaresetto[AHCI]bydefault.IfyouintendtocreateaSerialATA
RAIDsetusingtheseconnectors,settheSATAModeSelection itemintheBIOSto
[RAID].Seesection2.6.3 PCH Storage Configuration for details.
• BeforecreatingaRAIDset,refertotheRAIDSupplementaryGuideincludedinthe
foldernamedManualinthesupportDVD.
• Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto
[AHCI].
• TheCPU_FANconnectorsupportstheCPUfanofmaximum1A(12W)fanpower.
• TheCPU_FANandCHA_FANconnectorssupporttheASUSFANXpert2+feature.
• ThechassisfanconnectorssupportDCandPWMmodes.TosetthesefanstoDCor
PWM,gotoAdvanced Mode > Monitor > Chassis Fan 1/2 Q-Fan Control items in
BIOS.
SATA6G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA6G_4
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
SATA6G_3
GND
RSATA_RXP3
RSATA_RXN3
GND
RSATA_TXN3
RSATA_TXP3
GND
Z97-P

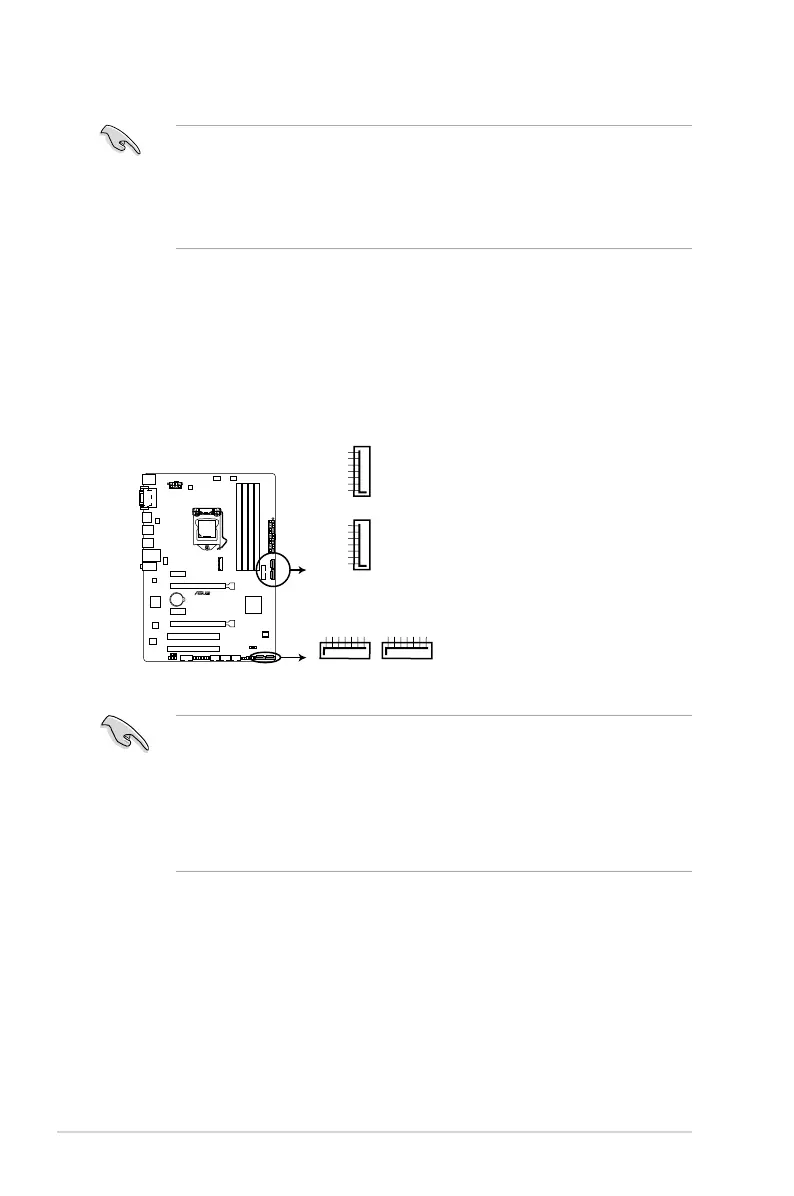

Z97-P SATA 6.0Gb/s connectors

Asus Z97-P Specifications

General

Form Factor	ATX
Chipset	Intel Z97
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32GB
Memory Type	DDR3
PCIe x16 Slots	2
PCIe x1 Slots	2
PCI Slots	2
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Realtek 8111GR, 1 x Gigabit LAN Controller(s)
RAID Support	Yes
Memory Standard	DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333 MHz
SATA Express Ports	1 x SATA Express
M.2 Slot	1
USB 2.0 Ports	8 x USB 2.0
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
USB 3.0 Ports	4 x USB 3.0 (2 at back panel, 2 at mid-board)
