ATI Technologies 2H User Manual

A-4. RS-232 COMMUNICATION
The 2H serial output is formatted as a continuous string of ASCII numeric characters. The
recommended method for capturing this data is to use the DAS1 or DAS2 data acquisition system

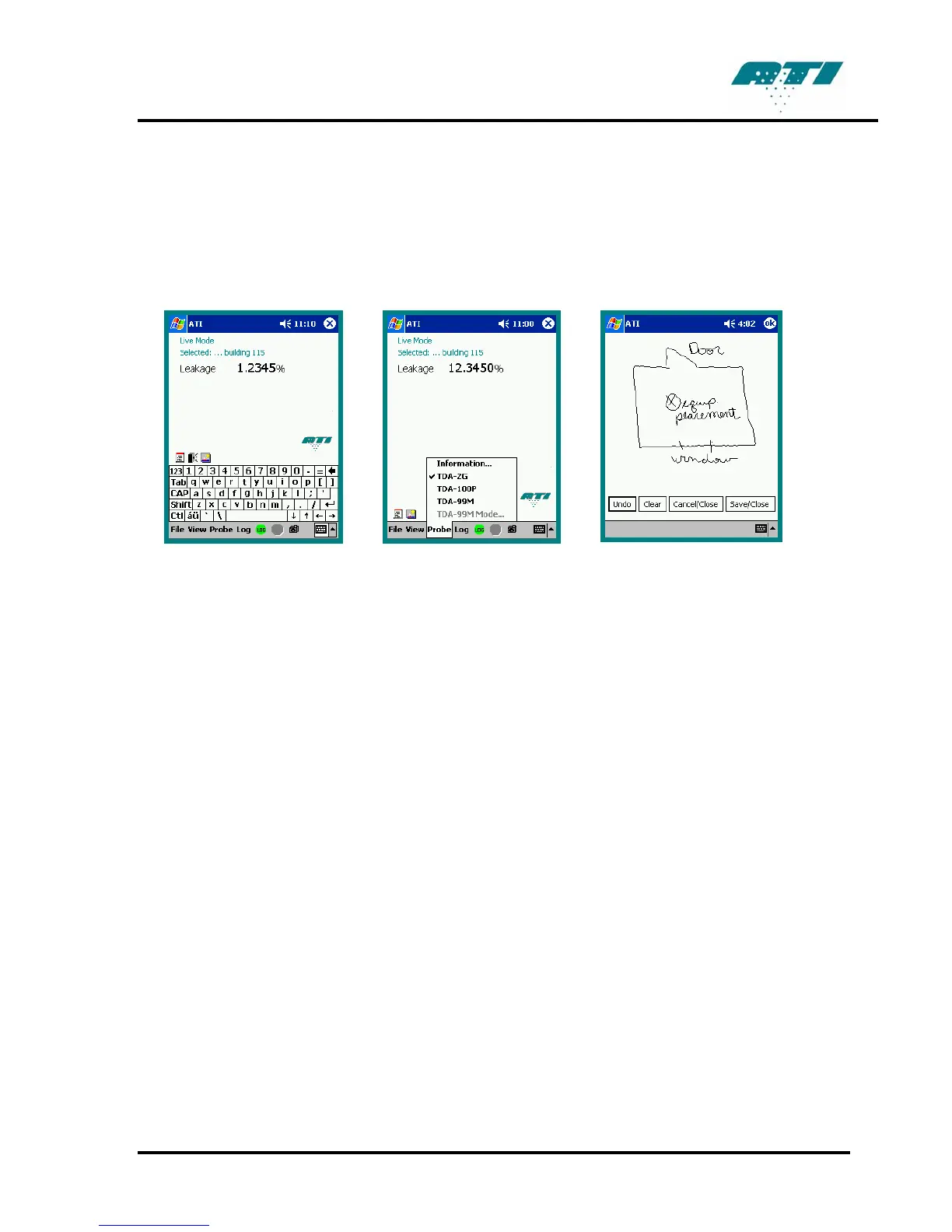

from ATI. Shown below are screenshots from the DAS1 on a pocket PC. Contact ATI customer
service for details and other information.
Alternatively, this data can be captured with a generic terminal. The required port protocol is:
2400, N, 8, 1.
Revision A
26
