Instruction manual
2954 2100 01 27

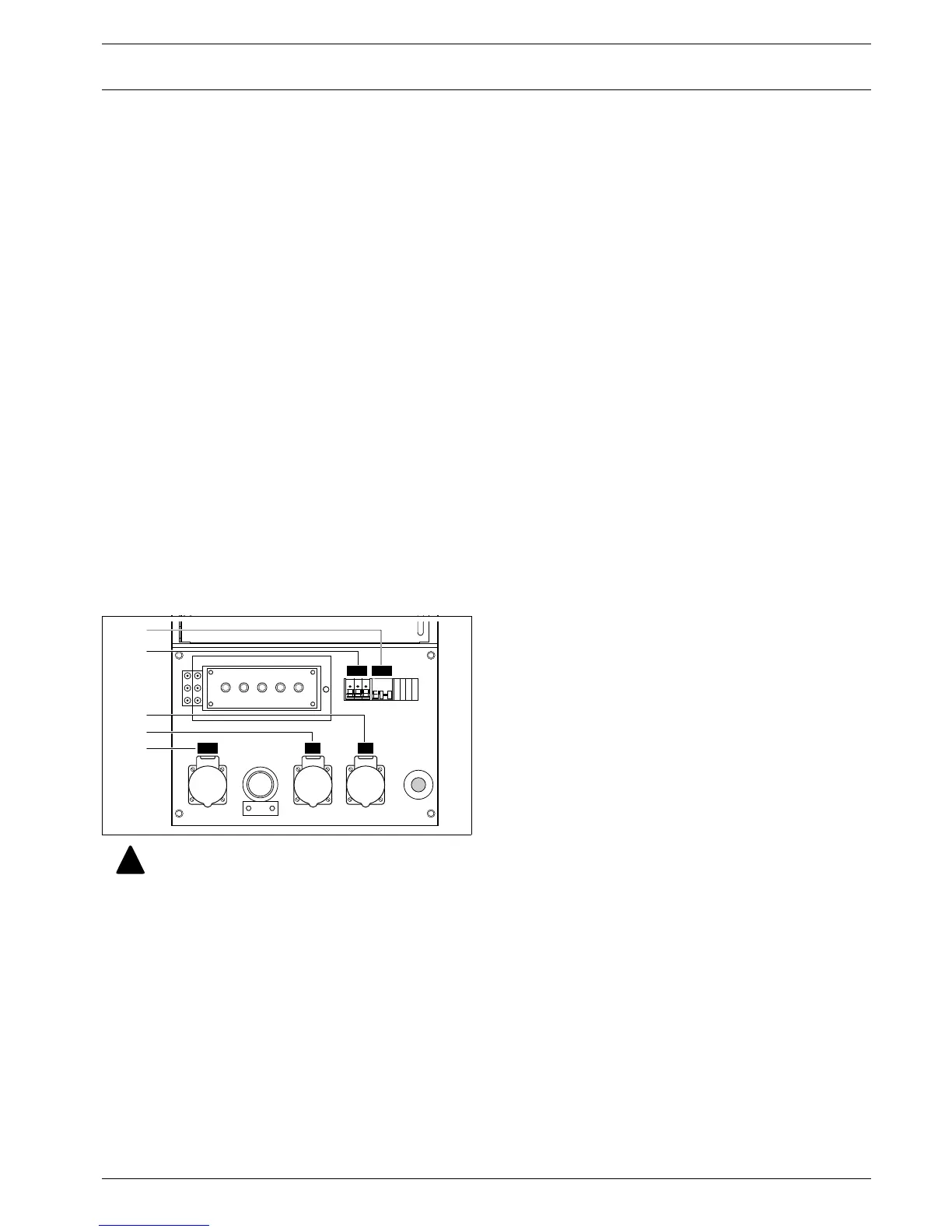

2.7 Outlet sockets (S)
A brief description of all outlet sockets and circuit breakers
provided on the generator is given hereafter:
X1.2...3-phase outlet socket (400 V AC)
Provides phases L1, L2 and L3, neutral and earthing.
X3......3-phase outlet socket (400 V AC)
Provides phases L1, L2 and L3, neutral and earthing.
X4......1-phase outlet socket (230 V AC)
Provides phase L3, neutral and earthing.
Q3......Circuit breaker for X3
Interrupts the power supply to X3 when a short-circuit occurs
at the load side, or when the overcurrent protection (16 A) is
activated. When activated, Q3 interrupts the three phases
towards X3. It can be activated again after eliminating the
problem.
Q4......Circuit breaker for X4
Interrupts the power supply to X4 when a short-circuit occurs
at the load side, or when the overcurrent protection (16 A) is
activated. When activated, Q4 interrupts phase L3 and the
neutral towards X4. It can be activated again after eliminating
the problem.
2.8 Spillage free
A Spillage free skid with forklift slots allows the customer to
transport the generator easily with a forklift.
It avoids accidential spilling of engine fluids.
Circuit breaker Q1 does not only interrupt the
power supply towards X1.2, but also towards X3
and X4.
Make sure to switch on circuit breakers Q1, Q3 and
Q4 after starting the generator when power supply
is done by means of X3 or X4.
Q3 Q4
X1.2 X3 X4
Q4
Q3
X1.2
X3
X4
!
