Instruction manual

2954 2100 01 9

2.2 Bodywork

The alternator, the engine, the cooling system, etc. are enclosed in

a sound-insulated bodywork that can be opened by means of side

doors (and service plates).

The recess in the roof has a lifting rod in the middle.

To be able to lift the generator by means of a forklift, rectangular

holes are provided in the frame.

The earthing rod, connected to the generator’s earth terminal is

located at the side of the frame.

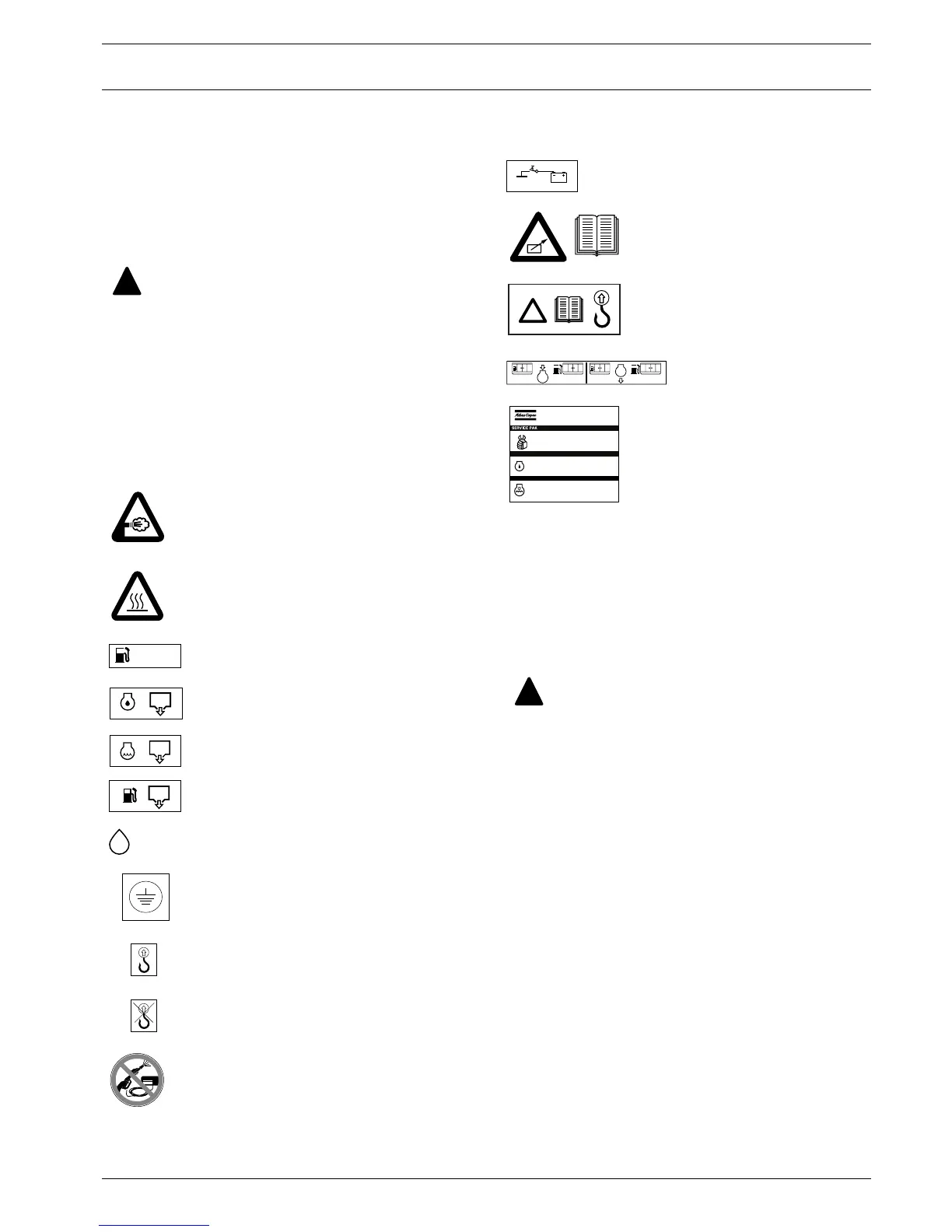

2.3 Markings

A brief description of all markings provided on the generator is

given hereafter.

2.4 Drain plugs and filler caps

The drain holes for the engine oil, the coolant and the plug for the

fuel, are located and labelled on the frame; the fuel drain plug at the

front, the others at the service side.

The drain flexible for engine oil can be brought to the outside of the

generator through the drain hole.

The filler cap for the engine coolant is accessible via an opening in

the roof. The fuel filler cap is located in the side panel.

Never use the guiding rods to lift the generator.

Indicates that the engine exhaust is a hot and harmful

gas, which is toxic in case of inhalation. Always make

sure that the unit is operated outside or in a well-venti-

lated room.

Indicates that these parts can become very hot during

operation (e.g. engine, cooler, etc.). Always make sure

that these parts are cooled down before touching them.

Indicates that the generator may be refuelled with die-

sel fuel only.

Indicates the drain for the engine oil.

Indicates the drain for the coolant.

Indicates the drain plug for the engine fuel.

Use 15W40 oil only.

Indicates the different earthing connections on the gen-

erator.

Indicates the lifting eye of the generator

Indicates that the guiding rods may not be used to lift

the generator. Always use the lifting rod in the roof of

the generator to lift it.

Indicates that the alternator should not be cleaned with

high pressurised water.

diesel

15W40

PAROIL

Indicates the battery switch

Indicates that the unit may start automatically

and that the instruction book has to be consult-

ed prior to use.

Read the instruction manual before using the

lifting eye.

Indicates the 3-way valve.

Indicates the partnumbers of the different

service packs and of the engine oil.

These parts can be ordered to the factory.

The drain hole can also be used to guide external fuel

tank connections. When connecting an external

fueltank, use the 3-way valves. Refer to “External

fueltank connection (with/without quick couplings)”.

QAS 14 Pd, QAS20 Pd

Engine oil

PAROIL 15W40 PAROIL 5W30

Engine coolant PARCOOL EG

Yearly (max. 500h) 2912 6041 04

Every 1000h 2912 6042 05

Every 2000h 2912 6043 06

5 l

(1.3 US gal) 1615 5953 00 1604 6060 00

20 l

(5 US gal) 1615 5954 00 1604 6059 00

210 l

(55 US gal) 1615 5955 00

5 l

(1.3 US gal) 1604 5308 00

20 l

(5 US gal) 1604 5307 01

210 l

(55 US gal) 1604 5306 00
