8 2954 2100 01
QAS 14 - 20 Pd
2. Leading particulars
2.1 General description
The QAS 14 and QAS 20 are AC generators, built for continuous
running at sites where no electricity is available or as stand-by in
cases of interruption of the mains.
The generator operates at 50/60 Hz, 230/240 V in line-to-neutral mode
and 400/480 V in line-to-line mode.
The QAS 14 and QAS 20 generators are driven by a fluid-cooled
diesel engine, manufactured by PERKINS.

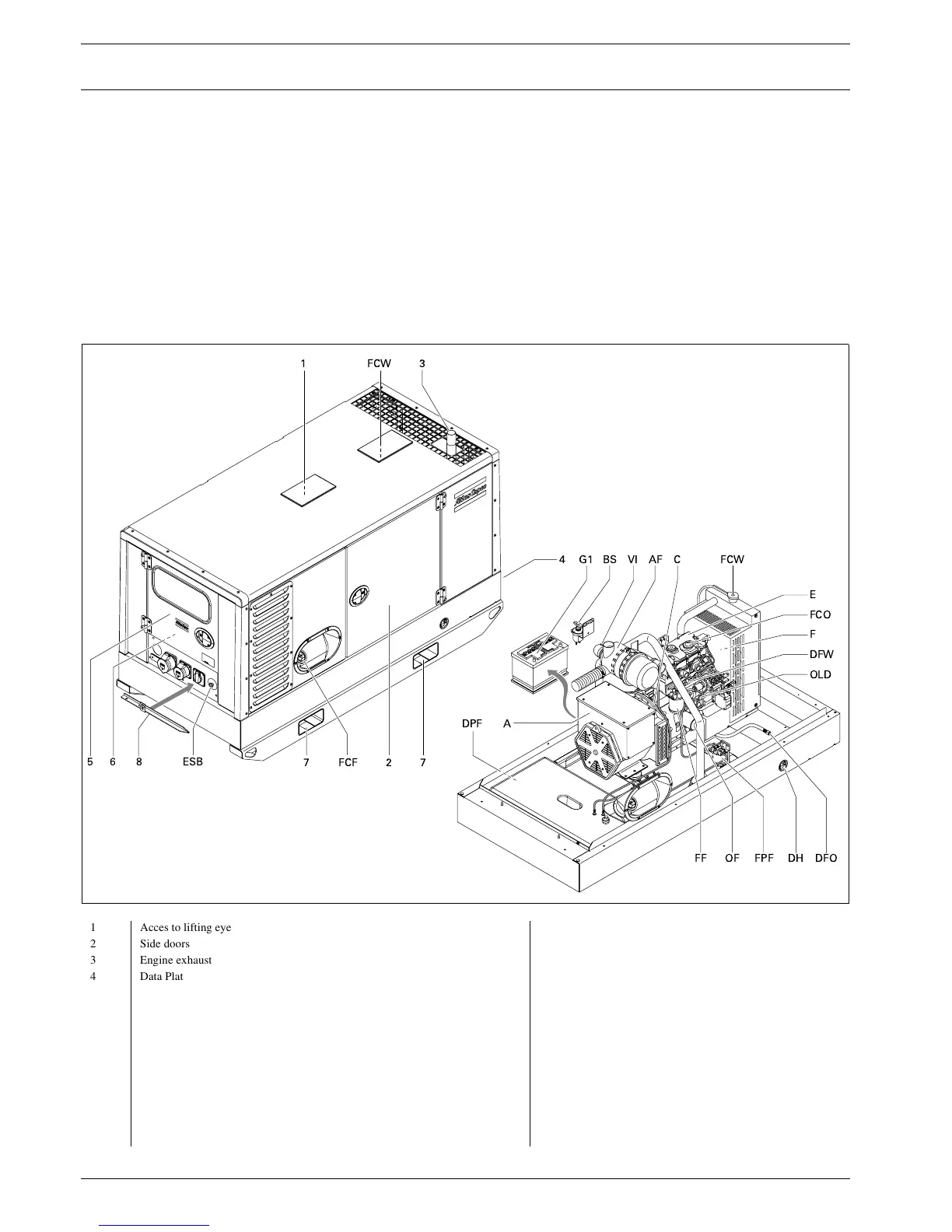

An overview of the main parts is given in the diagram below.
27
6
FCF
7
DPF A
ESB85
FCW 31
BSG14 AFVI C
F
DFW
OLD
FCO
E
FCW
FPF DH DFOFF OF
1 Acces to lifting eye
2 Side doors
3 Engine exhaust
4 Data Plate
5 Door, access to control and indicator panel
6 Output terminal board
7 Hole for forklift
8 Earthing rod (Not available in combination with an IT-relay)
AAlternator
AF Air filter
BS Battery switch
C Coupling
DFO Drain flexible engine oil
DFW Drain flexible coolant
DH Drain and access hole (in the frame)
DPF Drain plug fuel
E Engine
ESB Emergency stop button
FFan
FCF Filler cap fuel
FCO Filler cap engine oil
FCW Filler cap coolant
FF Fuel filter
FPF Fuel pre-filter
G1 Battery
OF Oil filter
OLD Engine oil level dipstick
VI Vacuum indicator
