3.9 Outputs menu
Menu icon, Outputs
Function
To call up information regarding the actual status of some outputs such as the condition of the
Fan motor overload contact, the general warning contact, etc.
Procedure
Starting from the Main screen,
•
Move the cursor to the action button Menu and press the Enter key. Following screen
appears:

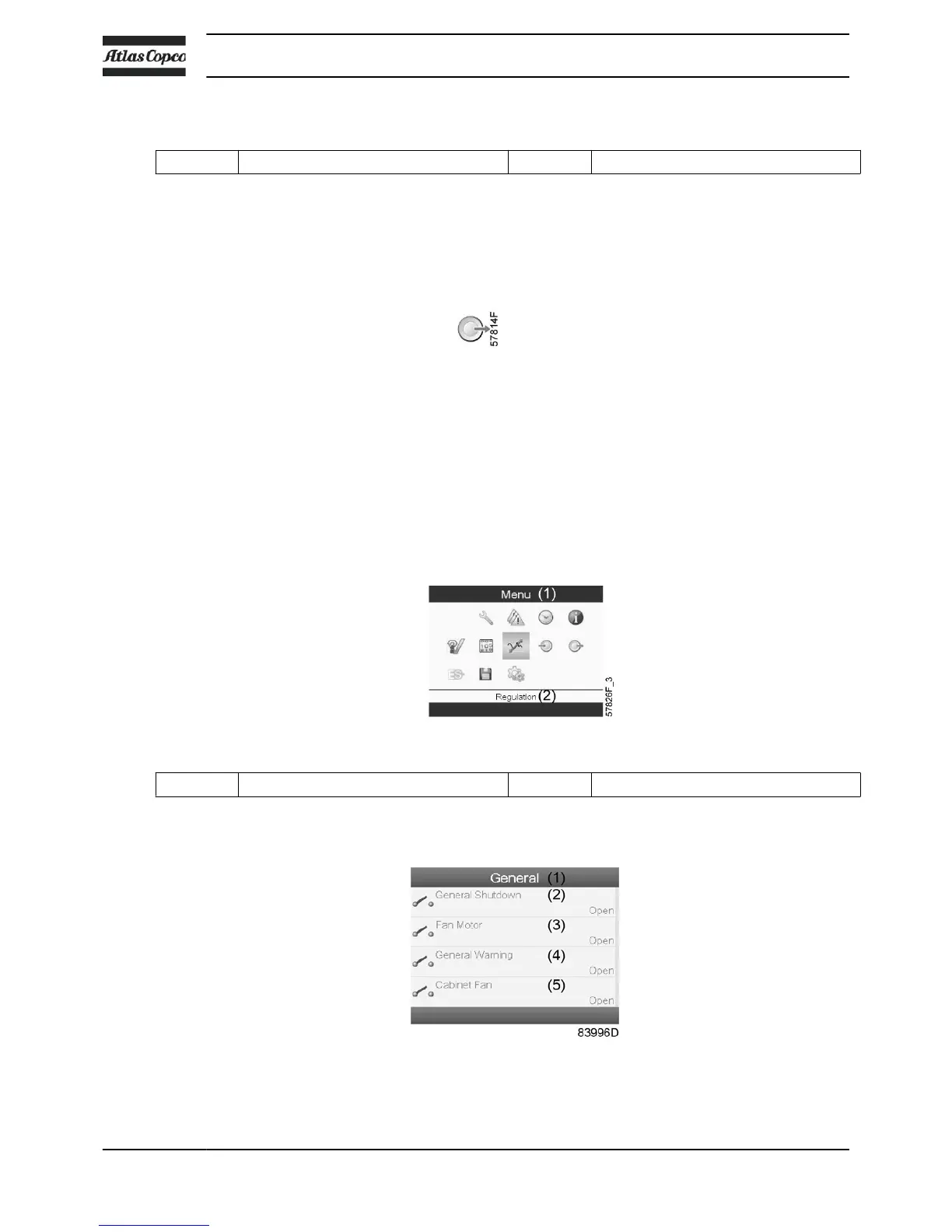

Text on image
(1) Menu (2) Regulation
• Using the Scroll keys, move the cursor to the outputs icon (see above).
•
Press the Enter key. A screen similar to the one below appears:
Outputs screen (typical)
Instruction book
42 2920 7140 52
