Atlas Copco ZS 4 VSD User Manual

3.2 Control panel

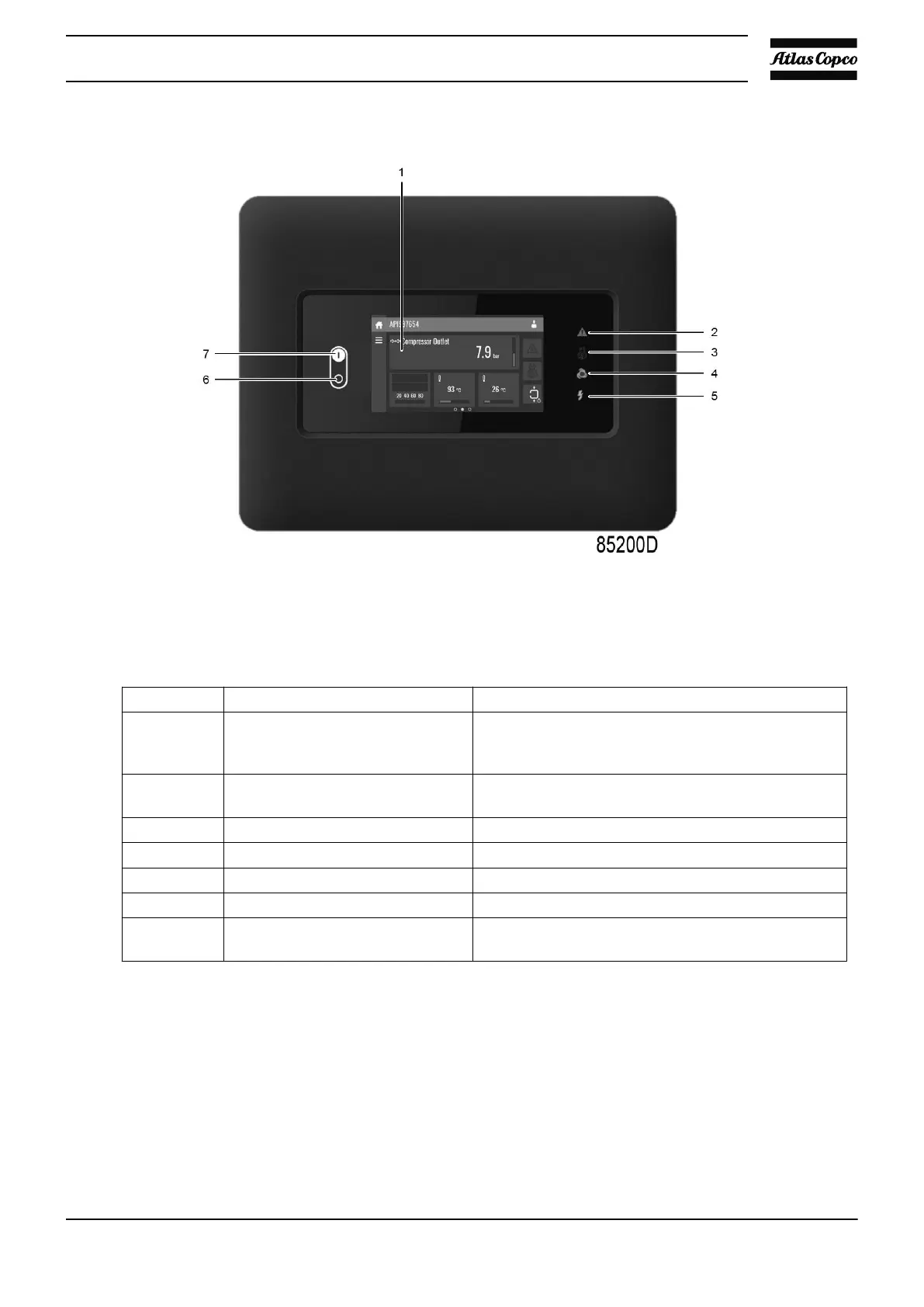

Control panel
Parts and functions
Reference Designation Function
1 Touch screen Shows the unit operating condition and several icons
to navigate through the menu.
The screen can be operated by touch.
2 Warning sign Flashes in case of a shut-down and is lit in case of a
warning condition.
3 Service sign Lit when service is needed.
4 Operation sign Lit when the unit is running in automatic operation.
5 Voltage sign Indicates that power is switched on.
6 Stop button Stops the unit.
7 Start button Starts the unit. The operation sign (4) lights up. The
controller is operative.
