2.1.1.2 MP-11x Rear Panel
The device's rear panel provides the ports for cabling the device to the various interfaces.

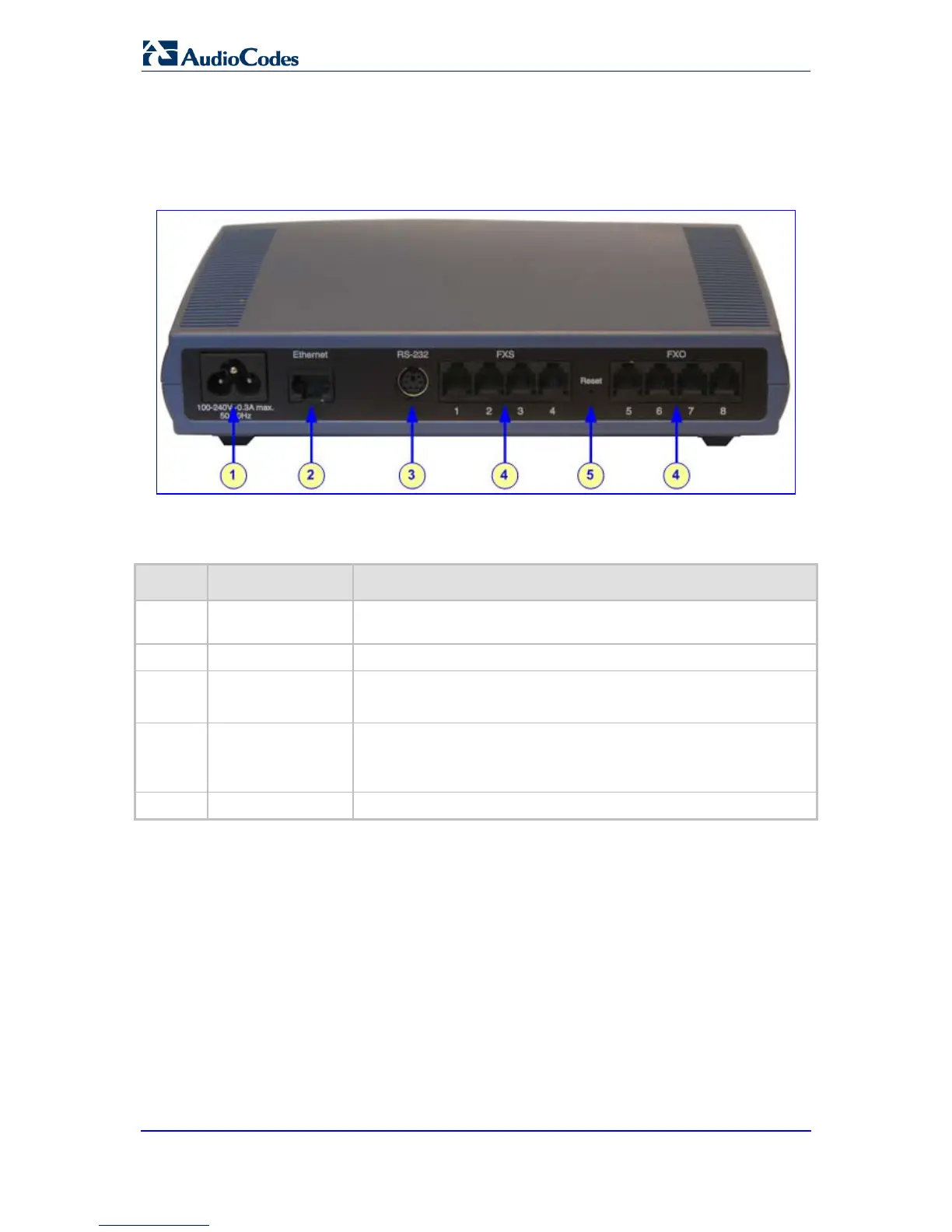

The figure below displays the rear panel of the MP-118 device (as an example).
Figure 2-2: MP-11x (e.g., MP-118) Rear Panel Connectors
The following table describes the MP-11x rear panel ports:
Table 2-1: MP-11x Rear Panel Component Descriptions
Item # Label Component Description
1 AC power supply socket.
100-240~0.3A
max.
2 10/100Base-TX Uplink port.
Ethernet
3
RS-232 status port (requires a DB-9 to PS/2 adaptor).
RS-232
Note:
4
MP-112 does not provide a serial port.
FXS and/or
Provides two, four, or eight FXS/FXO ports (depending on
MediaPack model).
FXO
Note:
5
MP-112 does not support FXO interfaces.
Reset button for resetting the device.
Reset
2.1.2 Unpacking and Checking Package Contents
Follow the procedure below for unpacking the carton in which the MP-11x is shipped.
To unpack the MP-11x, take these 6 steps:
1. Open the carton and remove the packing materials.
2. Remove the MP-11x unit from the carton.
3. Check that there is no equipment damage.
