Label Type Color State Function
Data
Packet
Status
Green Blinking Transmitting RTP packets.
Red Blinking Receiving RTP packets.
- - No traffic.
Channels
Telephone
Interface
Green On Off-hook or ringing.
Red On Line malfunction.
- -
Normal.
4.2 Web Interface
The Web interface's 'Home' page provides a graphical display of the device's front panel,
displaying color-coded icons depicting the status of the device's ports and channels, as well
as other interfaces of the device. In addition, the 'Home' page allows you quick access to
viewing active alarms.
4.2.1 Viewing Alarms
The 'Home' page allows you quick access to the 'Active Alarms' page (typically accessed
from the Status & Diagnostics tab > Status & Diagnostics menu > Active Alarms
To view a list of current alarms:
). This
page lists all the device's current alarms.
In the 'Home' page, click the area labeled Alarms

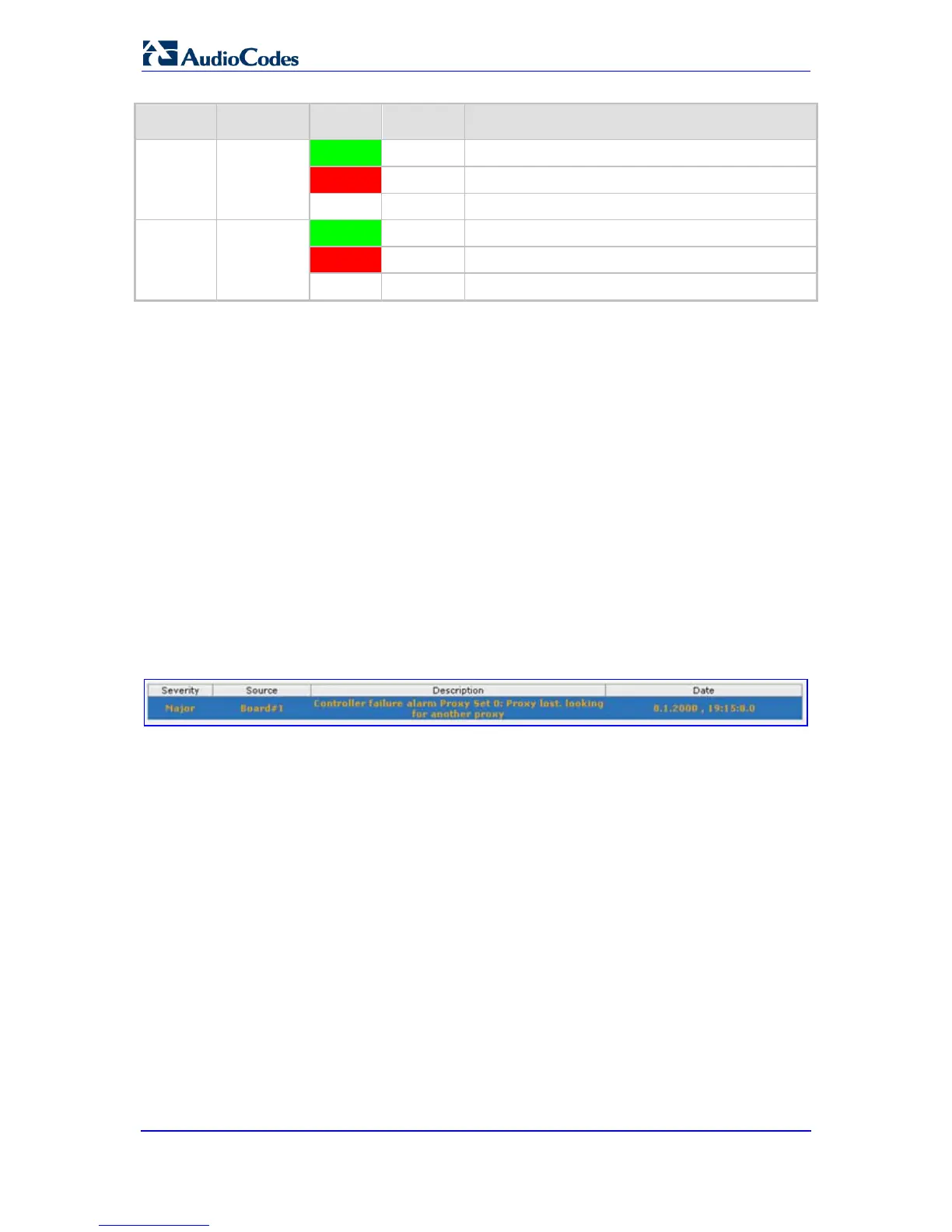

Figure 4-1: Current Alarms in Active Alarms Page
; the 'Active Alarms' page appears:
For each listed alarm, the following information is displayed:
• Severity:
♦ Critical (displayed in red)
severity level of the alarm:
♦ Major (displayed in orange)
♦ Minor (displayed in yellow)
♦ No alarm (displayed in green)
• Source:
•
element from which the alarm was generated
Description:
•
brief explanation of the alarm
Date:
date and time that the alarm was generated
