Installation Manual 2. Installing the Device
4. Insert and fasten the male connector to the female 50-pin Telco connector on the
MP-124 rear panel (labeled Analog FXS Lines 1-24
5. Connect the telephone lines from the MDF adaptor block to a fax machine, modem, or
telephones by inserting each RJ-11 connector on the 2-wire line cords of the POTS
phones into the RJ-11 sockets on the front of an MDF adaptor block, as shown in the
figure below.
).

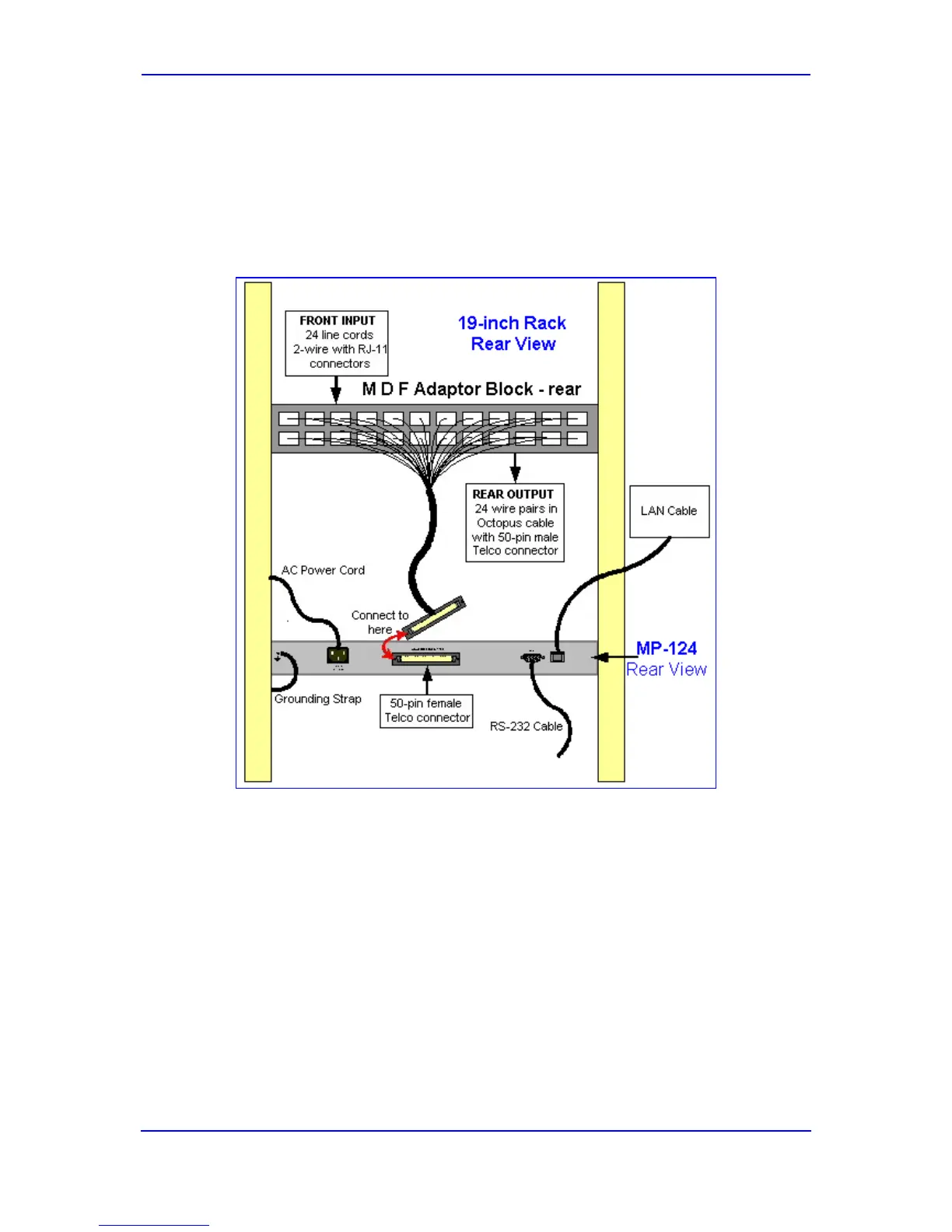

Figure 2-21: MP-124 in a 19-inch Rack with MDF Adaptor
