4 Description of the product
4.1 General description
The thermodynamic water heaters in the SPC range have the following
specifications:
Floor-standing thermodynamic storage water heater.
Thermodynamic unit extracting energy from unheated ambient air or
outside air.
Control panel with display of the volume of water heated and timer
programming.
Heat exchanger for connection to a boiler or a solar circuit (SPC 300S).
1.8 kW steatite immersion heater.
Enamelled tank protected by impressed current anode.
Very thick insulation (0 % CFCs).
The thermodynamic water heater is a hot water tank that can be heated
by:
The heat pump (up to 65 °C).
The immersion heater (Electrical back-up – AUTO and Boost mode) (up
to 70 °C).
The additional heat exchanger (SPC 300S)
4.2 Main components
1
Fan
2
Evaporator
3
Expansion valve
4
Solenoid valve for defrosting
5
Control system
6
Top domestic hot water temperature sensor
7
Impressed current anode
8
Safety thermostat
9
Steatite immersion heater
10
Cold water inlet
11
Air connection
12
HP pressure switch
13
LP pressure switch
14
Compressor
15
Pressure measurement point – High pressure (HP)
16
Ventilation grille
17
Domestic hot water outlet
18
Condenser
19
Middle domestic hot water temperature sensor

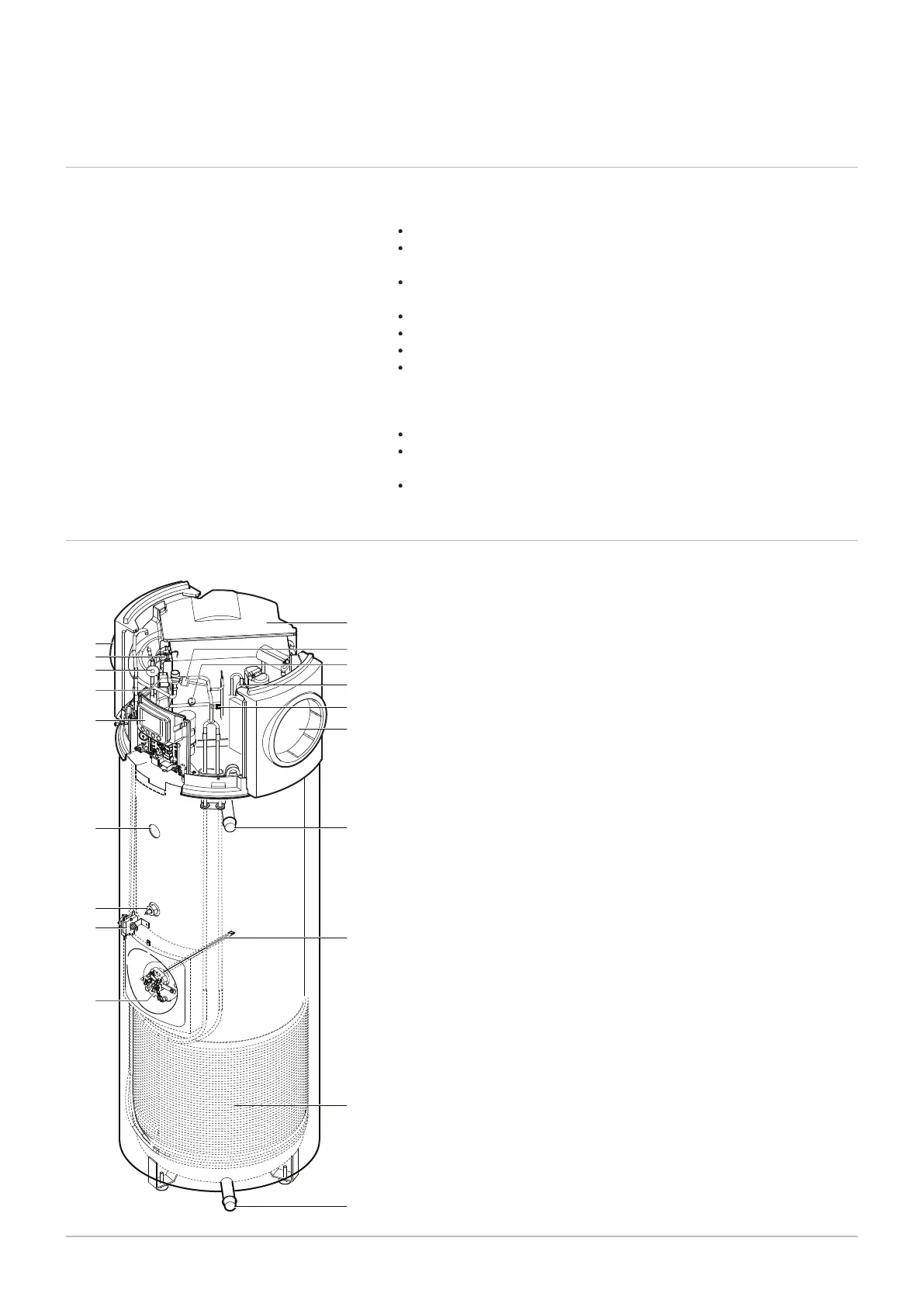

Fig.3
MW-1000361-2
5
6
2
1
3
4
15
16
13
12
14
17
19
11
10
18
8
7
9
4 Description of the product
7734712 - v01 - 22052019 15
