5.4.3

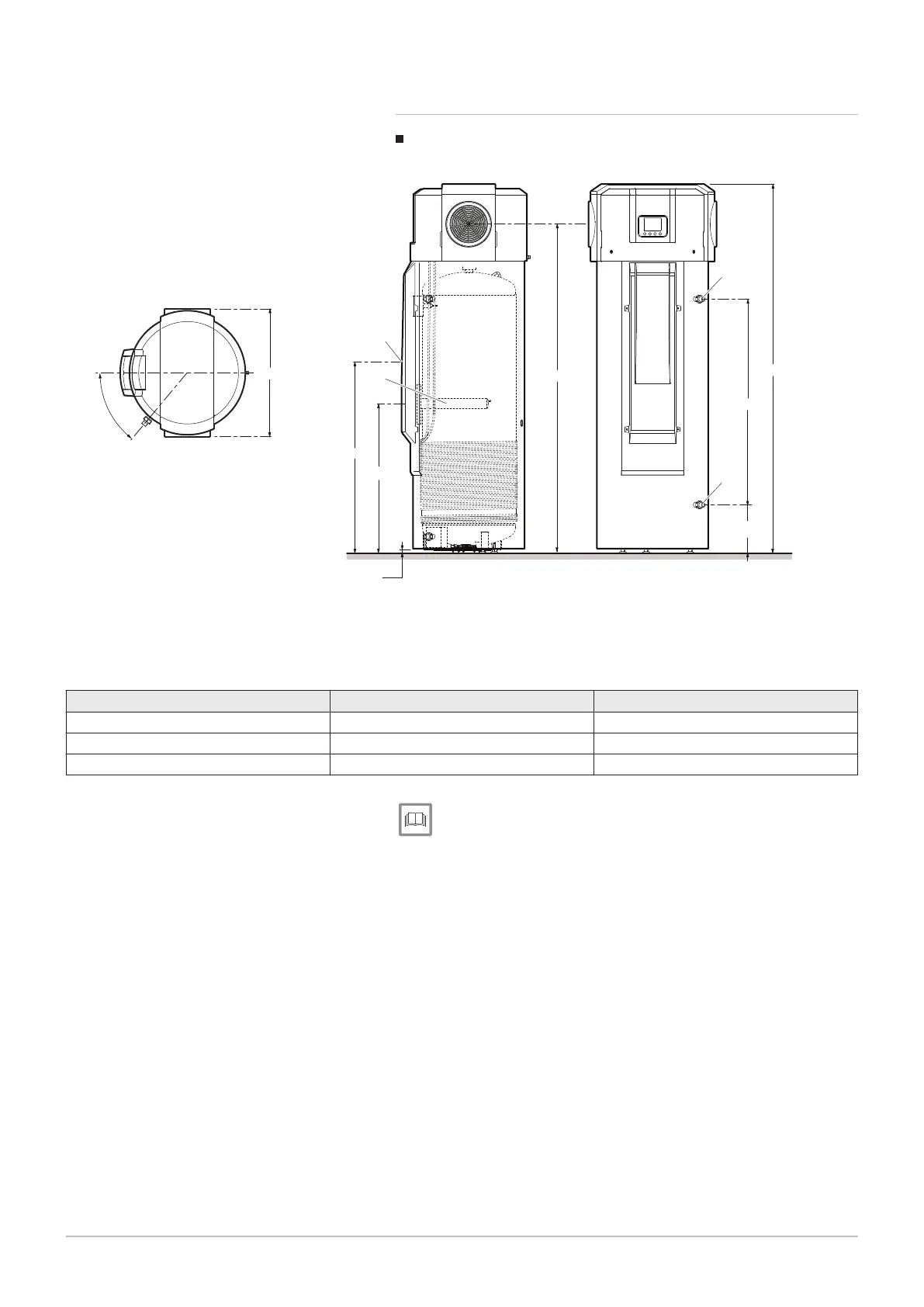

Main dimensions
SPC 200 - SPC 300
Fig.10
MW-1000357-2
50°
690
A
249
B
C
3
4
1025
810
4
(1)
1
2
1
Impressed current anode
2
1.8 kW steatite immersion heater
3
Domestic hot water outlet G 3/4"
4
Domestic hot water inlet G 3/4"
(1)
Adjustable feet
Tab.11
SPC 200
SPC 300
A
1690
2000
B
820
1133
C
1475
1785
For more information, see
Positioning the appliance, page 22
Unpacking the appliance, page 22
5
Installation
7734712 - v01 - 22052019
21
20
22
Table of Contents
Table of Contents
2
Safety
4
Installation
4
Water Connections
4
Electrical Connections
5
Website
5
Others
6
Recommendations
6
Liabilities
6
Manufacturer's Liability
6
Installer's Liability
7
Safety Data Sheet: Refrigerant Fluid R-134A
7
Product Identification
7
Hazard Identification
7
Composition Of/Information on the Ingredients
8
First Aid
8
Fire Prevention Measures
8
In the Event of Accidental Spillage
9
Handling
9
Personal Protection
9
Considerations on Disposal
10
Regulations
10
About this Manual
11
Symbols Used in the Manual
11
Abbreviations
11
Technical Specifications
12
Homologations
12
Certifications
12
2014/68/UE Directive
12
Factory Test
12
Technical Data
12
Specifications for the Domestic Hot Water Sensor
12
Appliance Specifications
12
Heating Curve for the DHW Tank as a Function of the Air Temperature
14
Heating Curve for the Maximum Domestic Hot Water Set Point Reached by the Heat Pump as a Function of the Air Temperature
14
Description of the Product
15
General Description
15
Main Components
15
Operating Principle
16
Installation
17
Installation Regulations
17
Package List
17
Standard Delivery
17
Accessories
17
Storage and Transport of the Appliance
17
Transport
18
Choice of the Location
18
Data Plate
18
Position of the Appliance
18
Main Dimensions
21
Positioning the Appliance
22
Unpacking the Appliance
22
Positioning the Appliance
23
Levelling the Appliance
23
Water Connections
23
Connecting the Tank to the Domestic Water Circuit (Secondary Circuit)
23
Connecting to a Boiler (SPC 300S Model)
25
Connecting to Solar Collectors (SPC 300S Model)
26
Condensate Discharge
27
Electrical Connections
27
Recommendations
27
Connecting the Back-Up Authorisation - X7 Connector (SPC 300S Model)
28
Connection with Timer Programming
29
Connection with Timer Programming and Photovoltaic Signal
30
Electrical Diagram
31
Filling the Thermodynamic Water Heater
32
Commissioning
33
Control Panel Description
33
Description of the Keys
33
Description of the Display
33
Browsing in the Menus
34
Points to Check before Commissioning
35
Commissioning the Appliance
35
Checks and Settings after Commissioning
35
Selecting the Operating Mode
35
Reading out Measured Values
36
Measurements Menu
36
Counters
37
Modifying the Installer Parameters
38
Accessing the Parameters
38
List of Parameters
39
Control System Sequence
42
Restoring the Factory Settings
42
Decommissioning
43
Shutting down the Installation
43
Frost Protection
43
Maintenance
44
General Instructions
44
Standard Inspection and Maintenance Operations
44
Refrigerant Circuit
44
Check the Hydraulic Circuit
44
Aeraulics
44
Impressed Current Anode
45
Checking the Safety Valve or Safety Unit
45
Descaling the Thermodynamic Water Heater
45
Cleaning the Condensate Discharge Pipe
46
Accessing the Bottom Inspection Trap
46
Maintenance Form
46
Troubleshooting
48
Messages (Bxx or Exx-Type Codes)
48
Type Error Codes
48
Messages
50
Type Codes))
50
Log of Messages and Faults
51
Error Display Err
52
Displaying Lockouts Bl
52
Resetting the Lockout and Error Memory to Zero
52
10 Appendix
53
EC Declaration of Conformity
53
Information on the Ecodesign and Energy Labelling Directives
53
Specific Information
53
