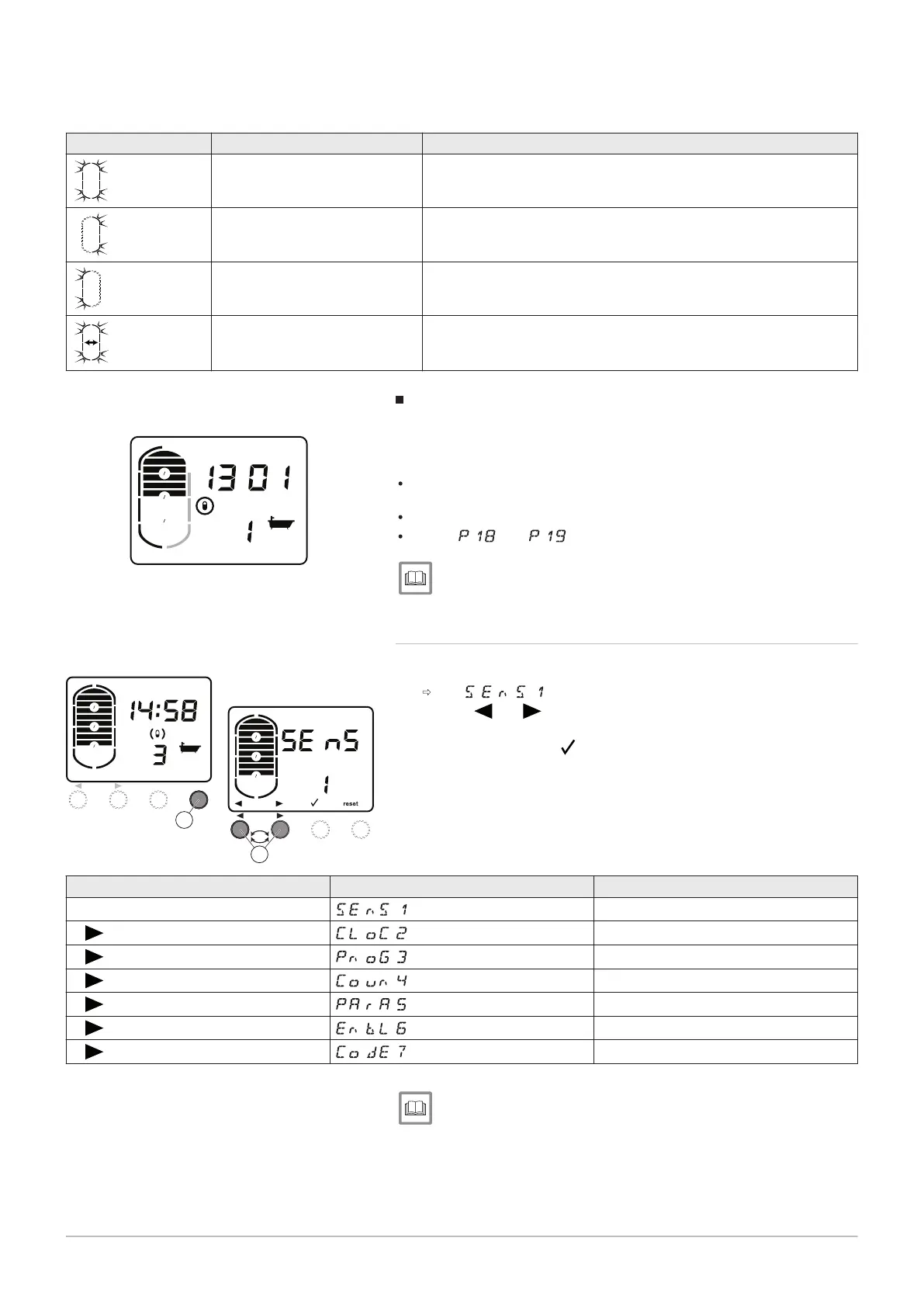

Tab.12
Display Domestic hot water production Description
Heat pump The two sections of the tank flash simultaneously when domestic hot
water production is provided by the heat pump
Electrical back-up The right-hand section of the tank flashes when domestic hot water
production is provided by the electrical back-up
Hydraulic back-up The left-hand section of the tank flashes when domestic hot water
production is provided by the hydraulic back-up (SPC 300S model)
Heat pump and electrical back-
up or hydraulic back-up
The two sections of the tank flash in turn when domestic hot water
production is provided by the heat pump, the electrical back-up or
the hydraulic back-up (SPC 300S model).
Indicator for the available volume of water
During production of domestic hot water, the display indicates the number
of baths available and the filling level for the tank (available quantity of hot
water).
The number of baths is calculated based on a domestic hot water
temperature of 40 °C.
The tank is filled based on the set point temperature.
Set the and parameters according to the appliance model.
For more information, see
Modifying the installer parameters, page 38
6.1.3 Browsing in the menus
1. Press the MENU key.
The menu is displayed.
2. Use the and keys to scroll through the menus (see table
below).
3. Press the MODE key ( ) to go into the selected menu.
4. Press the MENU key to return to the previous display.
5. Press the MENU key once to return to the main display.
Accessing the menu Menu Description
1 x MENU
Measurements menu
1x
Setting the time and date
2x
Modifying a timer program
3x
Counters
4x
Setting parameters
5x
Error history
6x
Installer parameters
For more information, see
Reading out measured values, page 36
Counters, page 37
Log of messages and faults, page 51
Modifying the installer parameters, page 38
Fig.24
Fig.25
MW-1000341-1
MODE MENU
1
4
3
4
1
2
MODE MENU
3
1
4
3
4
1
2
1
2
6 Commissioning
34 7734712 - v01 - 22052019
