162 MAINTENANCE
DIAGNOSTIC SOCKET
Detaching the diagnostic
socket
CAUTION
Incorrect procedure when
disconnecting the diagnostic
socket for onboard diagno-
sis
Vehicle experiences malfunc-
tions
Do not have the diagnos-
tic socket disconnected ex-
cept during BMW Motorrad
service by a specialist work-
shop or other authorized
persons.
Have work carried out by
appropriately trained per-
sonnel.
Observe the specifications
of the vehicle manufacturer.
Removing the front-fairing
panel ( 154).

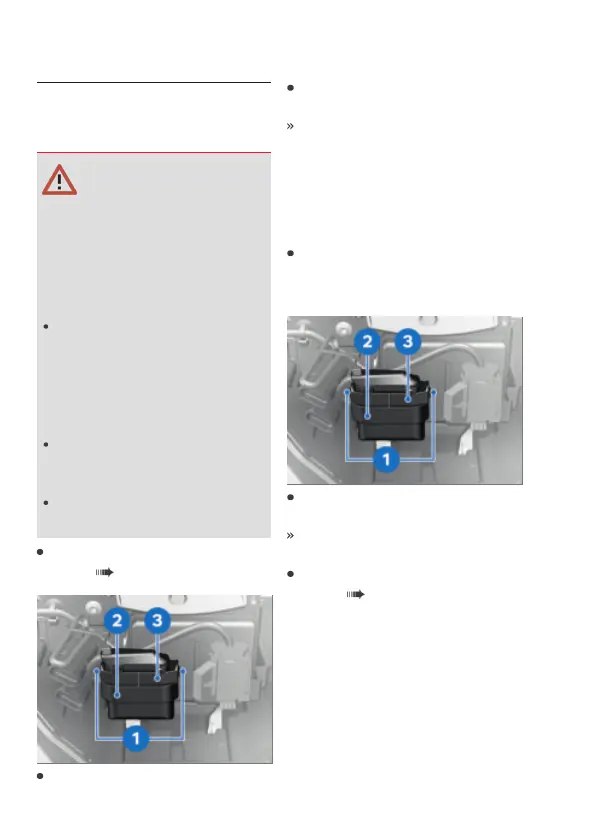

Press locks 1 on both sides.
Detach the diagnostic
socket 2 from the holder 3.
The interface for the diagnos-
tics and information system
can be connected to the diag-
nostic socket 2.
Fastening the diagnostic
socket
Disconnect the interface for
the diagnostics and informa-
tion system.
Insert the diagnostic socket 2
into the holder 3.
The locking mechanisms 1
engage on both sides.
Installing the front-fairing
panel ( 154).
