E61 Sports Wagon
System Components
The xDrive/DXC8+ system is composed ofthe following major components:
• ATC 300 transfer case
• Adjusting levers
• Servomotor with motor position and temperature sensor
• Coding/classification resistor
• Transfer case control unit
• DXC8+ control unit
• Wheel speed sensor
• DSC sensor (Y-sensor 2)

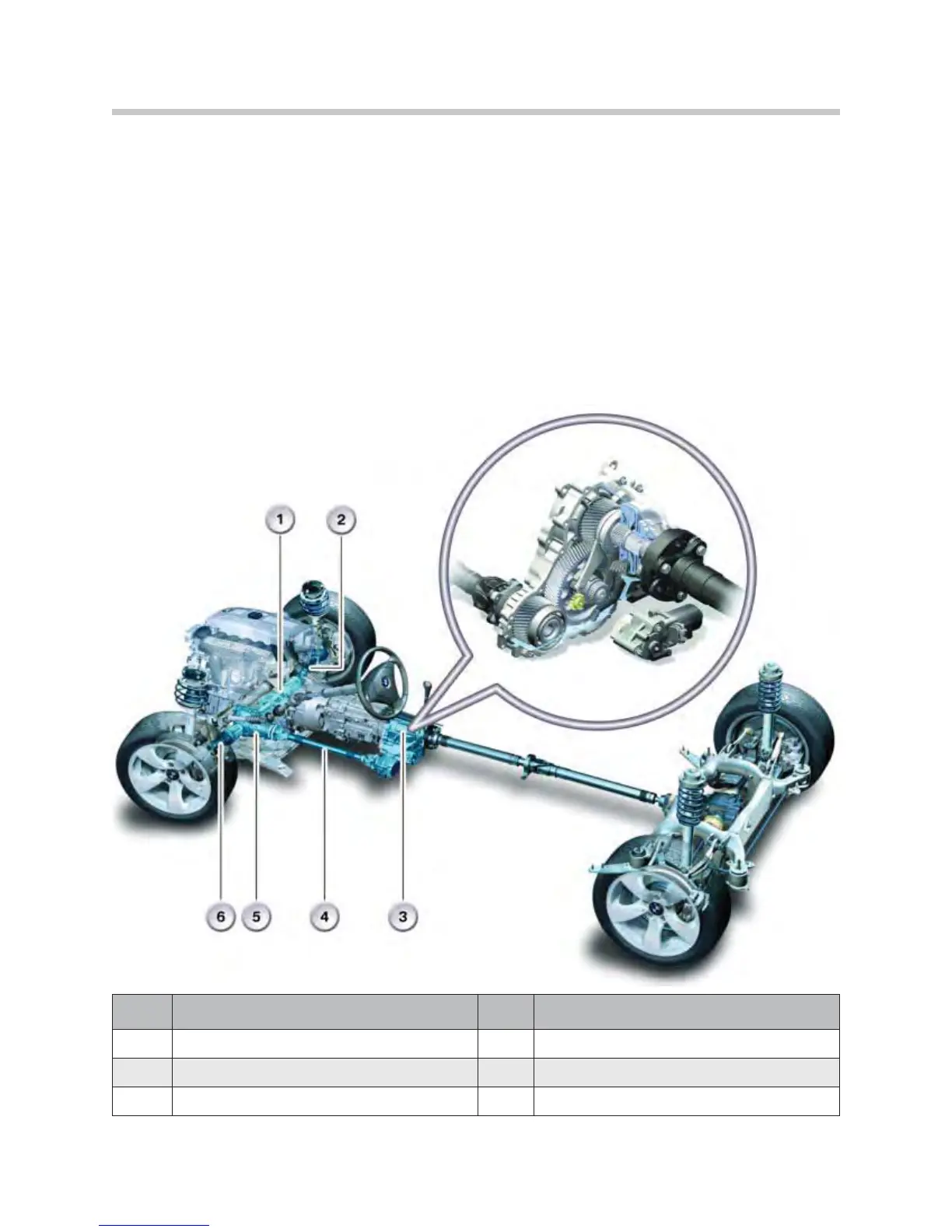

Index Explanation Index Explanation
1
Oil Pan lead through
4
Propeller shaftto front axle
2
Right drive shaft, front
5
Front axle differential
3
Transfer case
6
Left drive shaft, front
