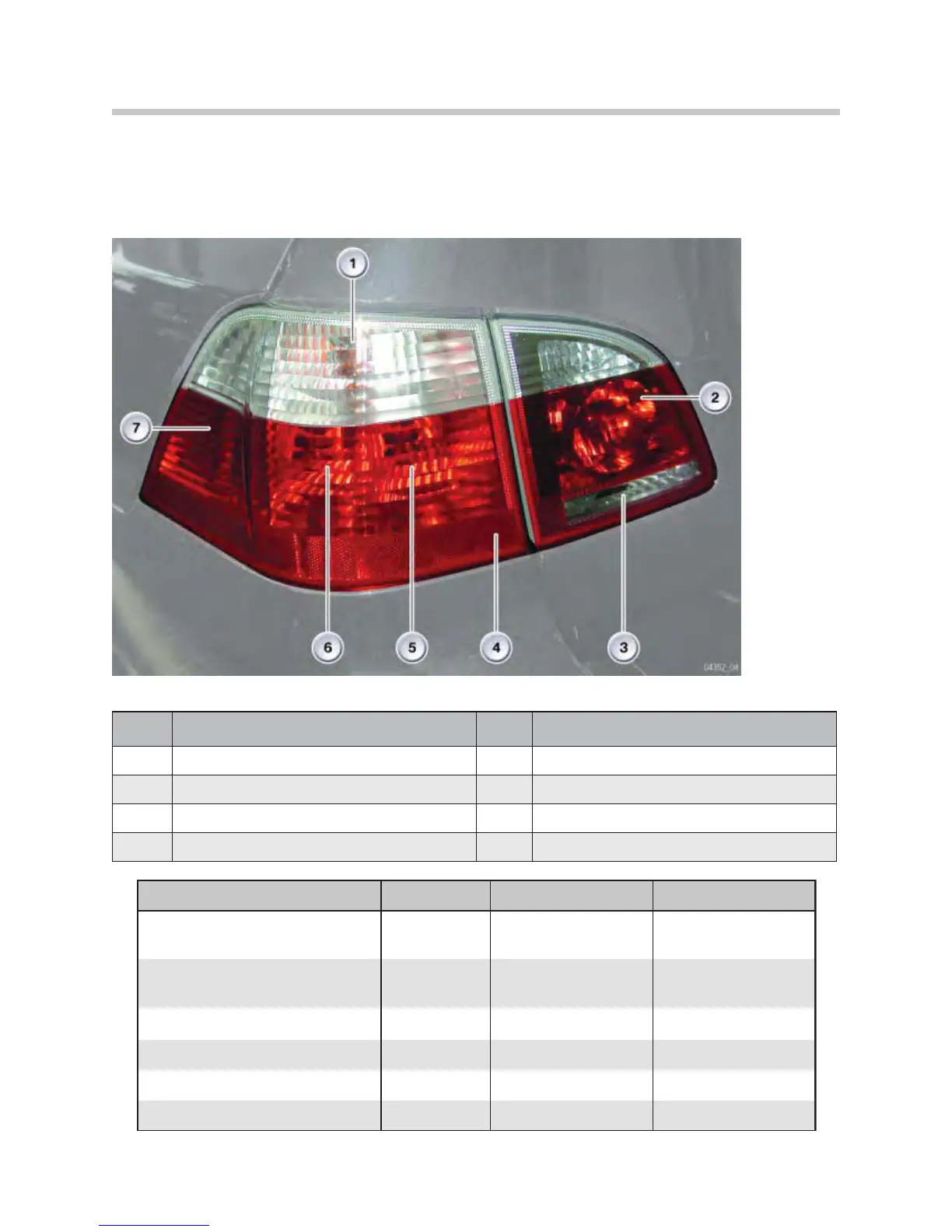

Tail Light Cluster
The tail light cluster is a split unit. One part is located in the side panel and the other in
the rear hatch. The tail lights are divided in 6 sections.
69
E61 Sports Wagon
Tail light cluster
Index Explanation Index Explanation
1
Direction Indicator light
5
Tail light/brake light
2
Two-stage brake light
6
Tail light/brake light
3
Reversing light
7
Side marker light
4
Rear Deflector
Light Quantity Operating voltage Output at 12 V
Tail light/brake light 2 6 V / 1 3.5 V 21 W
21 W
Tail light/brake light 2 6 V / 1 3.5 V 21 W
21 W
Thir d brake light 1 System voltage 0.5 W
Reversing light 2 13.5 V 16 W
Direction indicators 2 13.5 V 21 W
Rear fog light 2 13.5 V 16 W
