System Components
The HKL system is made up of the following components:
• Electric motor for the hydraulic pump
• Hydraulic valve,
• Angle Hall sensor
• Control buttons
- Rear hatch button on inside of rear hatch
- Rear hatch button on outside of rear hatch
- Rear hatch button on inside of vehicle
- Rear hatch button on vehicle key
Hydraulic System
The hydraulic system is self-bleeding and maintenance-free. The hydraulic unit is located
on the driver’s side of the luggage compartment behind the audio system amplifier.

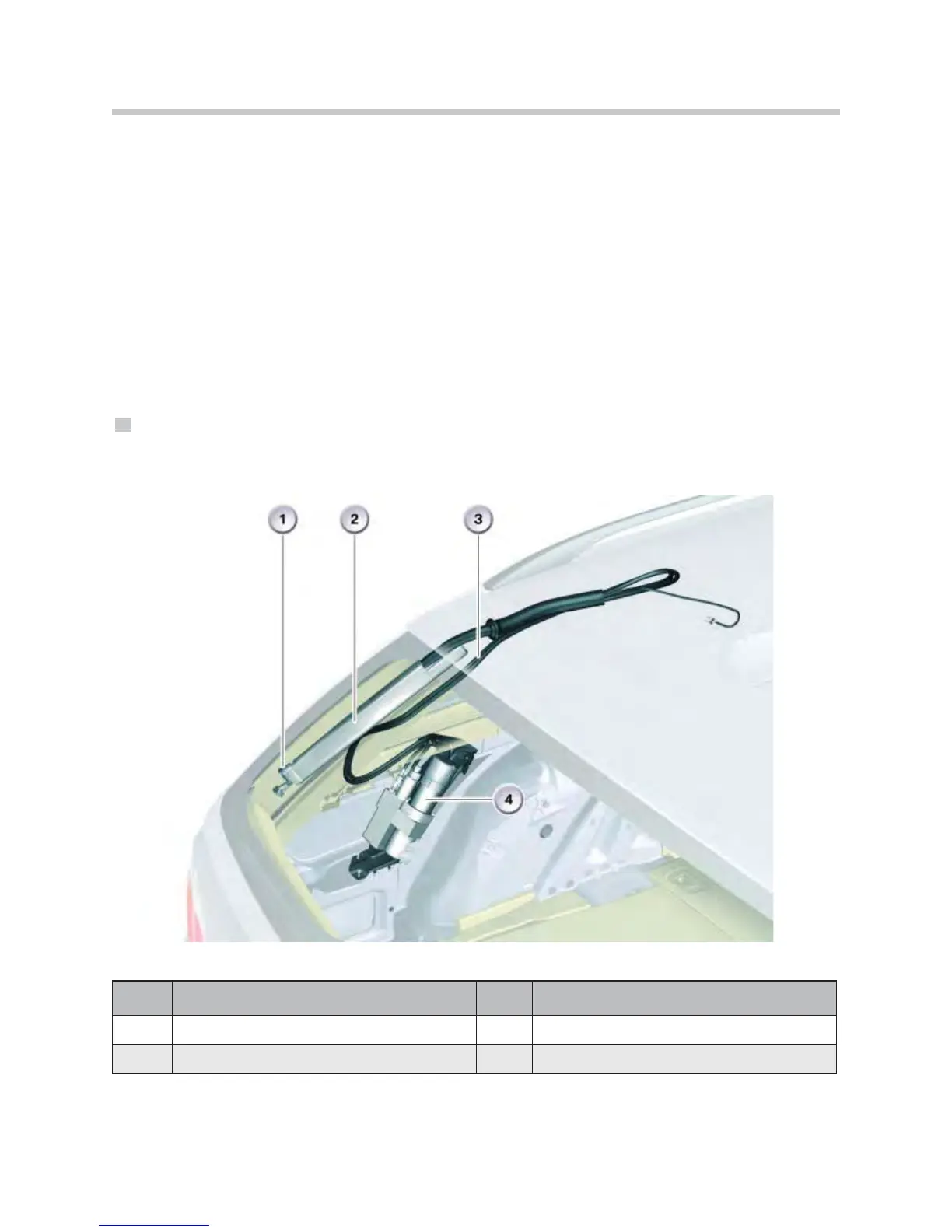

Overview of Hydraulic System for Opening Rear Hatch
Index Explanation Index Explanation
1
Hall sensor (angle sensor)
3
Hydraulic lines
2
Hydraulic cylinder
4
Hydraulic unit
62
E61 Sports Wagon
