System Components
The panorama glass sunroof assembly consists of the following components:
• Panorama Glass Sunroof control module, MDS
• 2 Drive Motors
• 2 Part floating headliner
• 2 Glass covers
• Wind deflector
Multi Drive Sunroof Control Module
The MDS contains the following components:
• Control Electronics
• K-CAN Interface
• Drive motor Relay
• Hall Sensor Power Supply
The Multi Drive Sunroof MDS controls and monitors the electric motors and therefore
the movement ofthe panorama glass sunroof.
The MDS is installed on the carrier behind the glove compartment.
43
E61 Sports Wagon

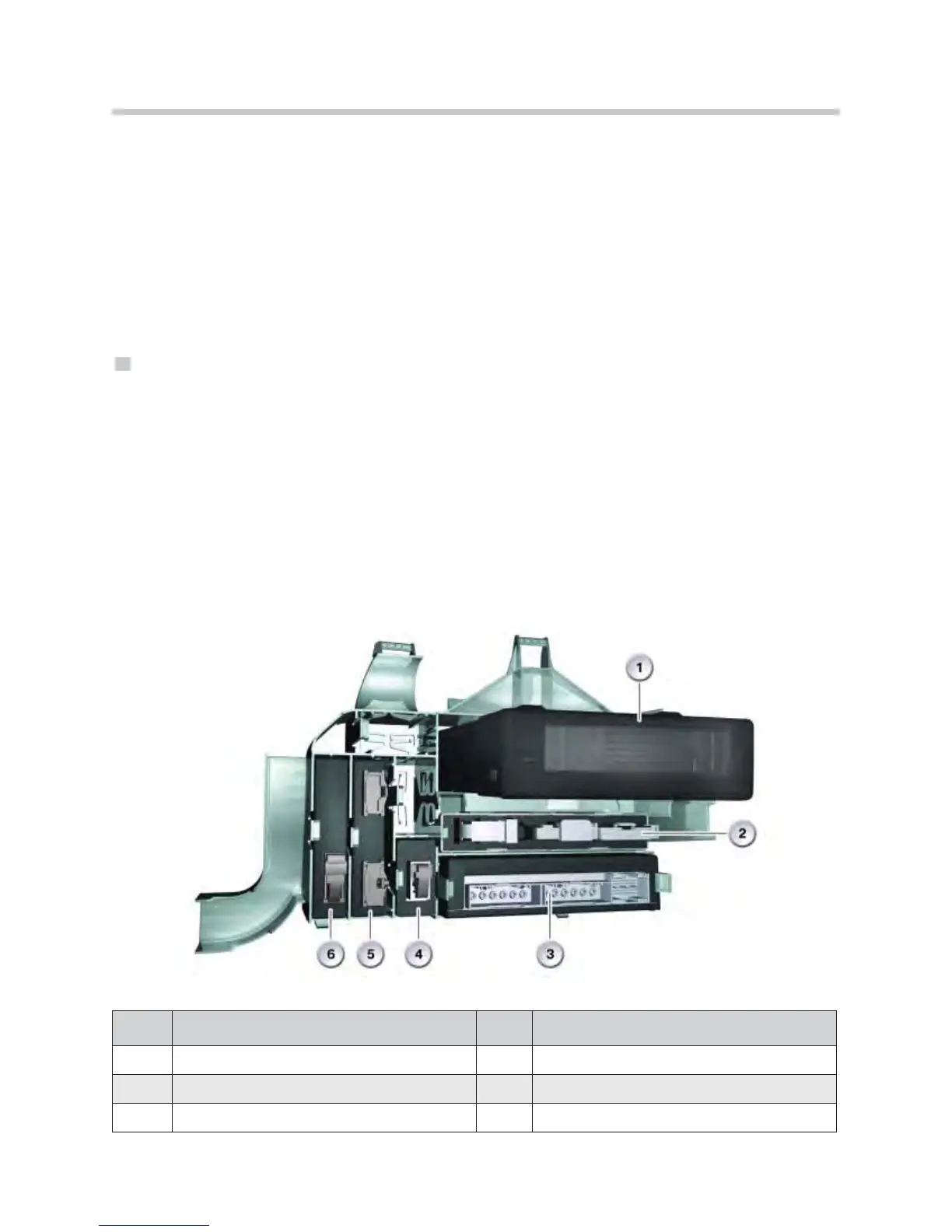

Control units in the carrier behind the glove compartment
Index Explanation Index Explanation
1
CD changer CDC
4
Adaptive headlight AHL
2
Basic body module KBM
5
Multi Drive Sunroof MDS
3
Safety and gateway module SGM
6
Comfort Access (9/2005)
