BMW G 650 Xmoto Rider's Manual

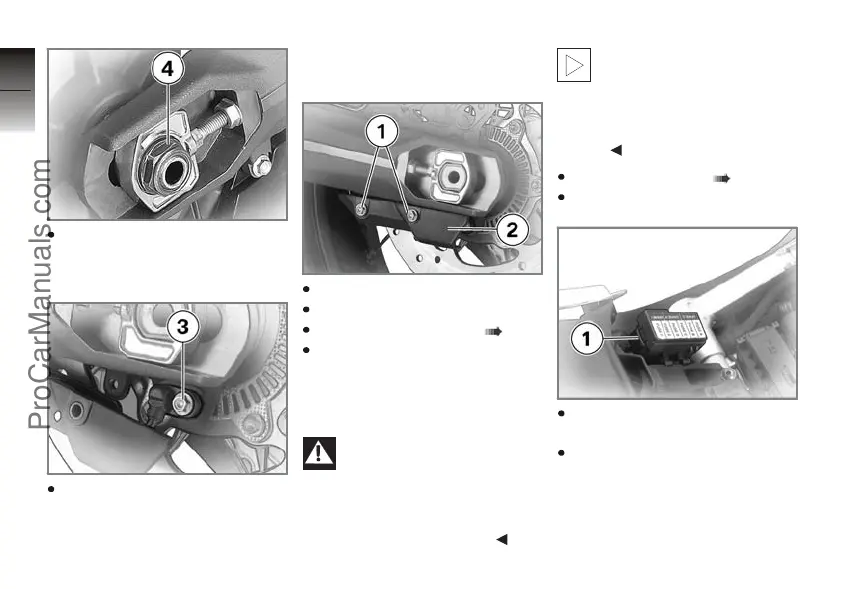

Install quick—release axle
nut 4, but do not tighten it
at this point.
Seat the speed sensor
in the holder and install
screw 3 of the speed
sensor.
Place cover 2 in position.
Install 2 screws 1.
Adjust chain tension ( 70)
Remove the auxiliary stand.
Fuses
Removing fuses
Risk of fire if an attempt
is made to jumper de-
fective fuse.
Always replace defective
fuses with new fuses of the
correct amperage rating.
If fuse defects recur fre-
quently have the electric
circuits checked by a spe-
cialist workshop, preferably
an authorised BMW Motorrad
dealer.
Remove the seat ( 33)
Switch off the ignition.
Push latching lever 1 and
open the fuse cover.
Check the fuse—assignment
diagram and pull the defect-
ive fuse up and out of the
fuse box.
7
78
z Maintenance
ProCarManuals.com

BMW G 650 Xmoto Specifications

General

Displacement	652 cc
Bore x Stroke	100 mm x 83 mm
Compression Ratio	11.5:1
Max Power	53 hp (39 kW) @ 7, 000 rpm
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Transmission	5-speed
Front Tire	120/70 ZR17
Rear Tire	160/60 ZR17
Engine Type	Single cylinder, four-stroke
Max Torque	60 Nm (44 lb-ft) @ 5, 250 rpm
Front Suspension	45 mm
Front Brake	Single disc, 2-piston caliper
Rear Brake	Single disc, 240 mm, 1-piston caliper
Fuel Capacity	9.5 l
