Bosch BBS266 User Manual

English – 6
1 270 U20 XBC | (09.04.2019) Bosch eBike Systems
(8)
(9)
(10)
(11)
(14)
(13)
(15)
(12)
(8)

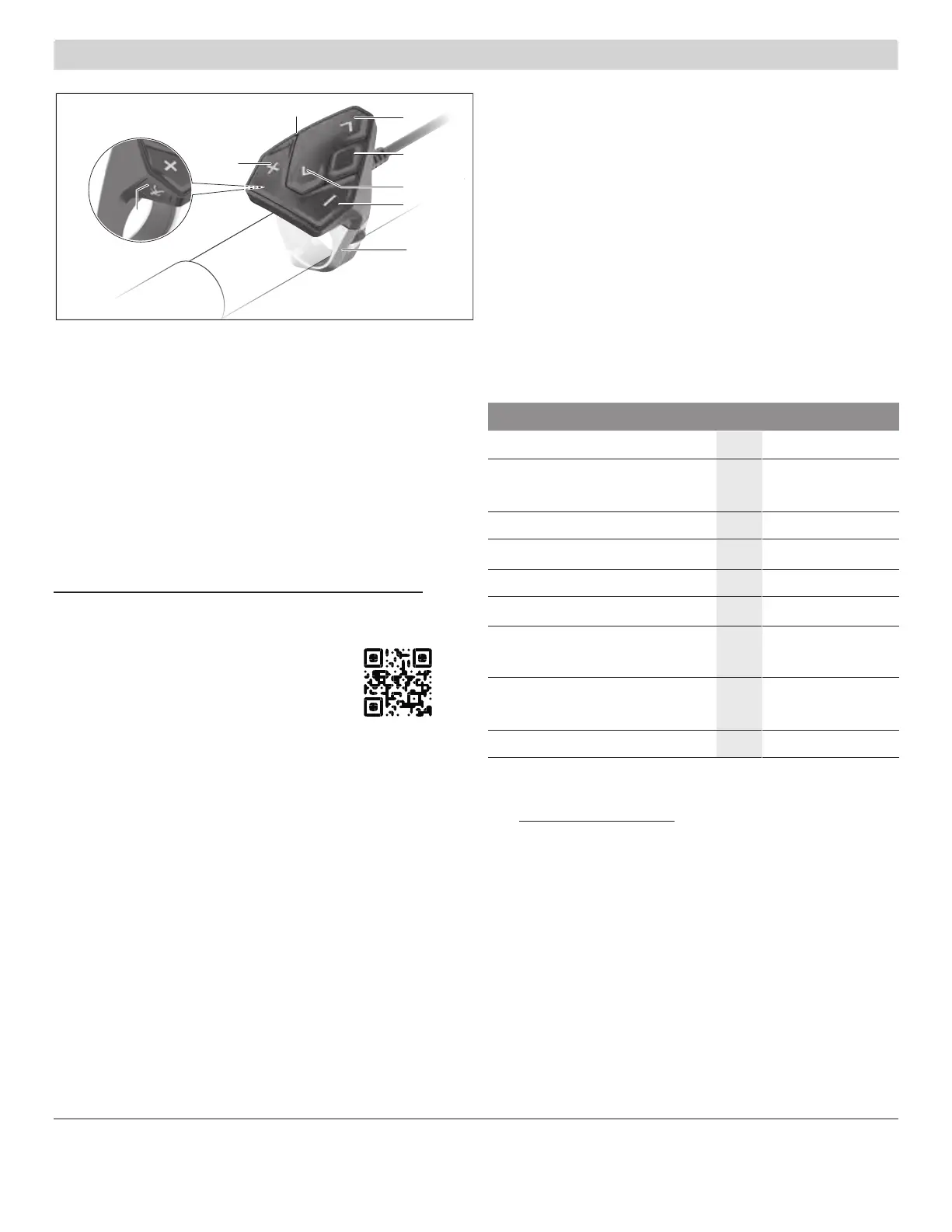

Next page button
(9)
Select button
(10)
Previous page button
(11) Decrease assistance level button –
(12)
Holder for operating unit
(13) Start/push assistance button WALK
(14) Increase assistance level button +
(15)
Operating unit
Intended use
The SmartphoneHub is designed to control Bosch
eBike systems and display cycling data.
In addition to the functions shown here, changes to
software relating to troubleshooting and functional
enhancements may be introduced at any time.
The description of additional functions can be found
in the online version of these instructions at
www.Bosch-eBike.com/smartphonehub-manual
.
The SmartphoneHub is intended for use with a smart-
phone.
The basic cycling data, however, is
shown on the display of the Smart-
phoneHub. Additional information and
functions can be added via the
COBI.Bike smartphone app.
Communication between the SmartphoneHub and
smartphone takes place via a Bluetooth® connection.
The SmartphoneHub is not compatible with the
Bosch BDU2xx drive units.
Technical data
On-board computer SmartphoneHub
Product code CUI100
Max. USB port charging
current
mA 1000
USB port charging voltage V 5
Operating temperature °F 23 to 104
Storage temperature °F 14 to 122
Charging temperature °F 32 to 104
Internal lithium-ion battery V
mAh
3.7
300
Protection rating
A)
IP 54 (dust and
splash-proof)
Weight, approx. kg 0.12
A)
When the USB cover is closed
The Bosch eBike system uses FreeRTOS
(seehttp://www.freertos.org
).
EN-106
