Technical Data
On-board computer Intuvia
Product code BUI251/BUI255
Max. USB port charging
current
mA 500
USB port charging voltage V 5
USB charging cable
A)
1 270 016 360
Operating temperature °F +23 to +104
Storage temperature °F +14 to +122
Charging temperature °F +32 to +104
Internal lithium-ion bat-
tery
V
mAh
3.7
230
Protection rating
B)
IP 54 (dust and
splash-proof)
Weight, approx. lb 0.30
A)
Not included with the product as standard
B)
When the USB cover is closed
The Bosch eBike system uses FreeRTOS
(seehttp://www.freertos.org
).
Assembly
Inserting and removing the battery
For inserting and removing the eBike battery in/from
the eBike, please read and observe the battery oper-
ating instructions.

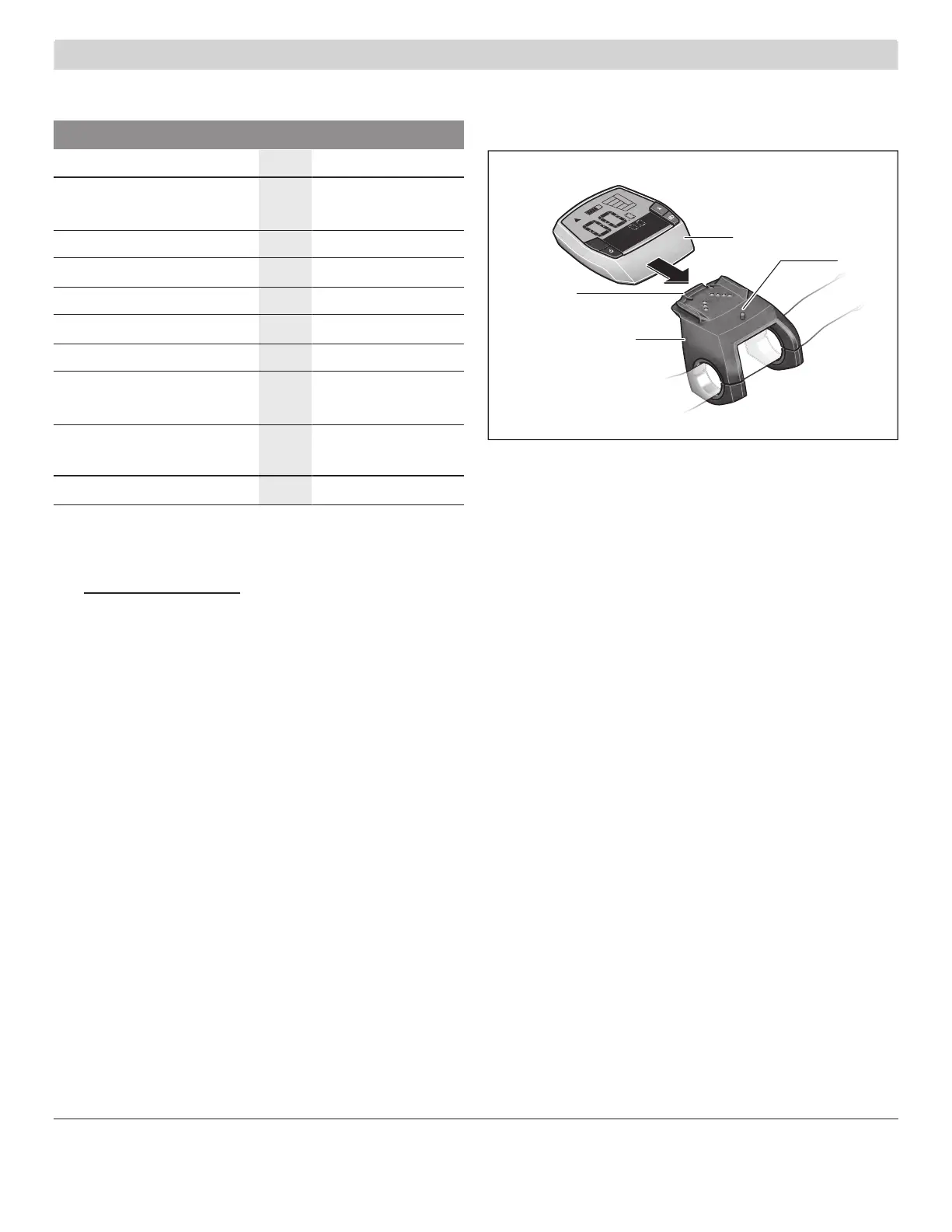

Inserting and removing the on-board
computer
ECO
MPH
KM/H
Range
KM/H
RES
ET
ECO
MPH
KM/H
Range
KM
/H
(15)
(3)
(4)
(14)
(3)
On-board computer
(4)
Holder for on-board computer
(14)
Locking mechanism for on-board computer
(15)
Locking screw for on-board computer
To insert the on-board computer(3), slide it into the
holder(4) from the front.
To remove the on-board computer(3), push on the
locking mechanism(14) and slide it forwards out of
the holder(4).
u When you park up the eBike, remove the on-
board computer.
The on-board computer can be secured in place to
prevent it from being removed from the holder. To do
this, remove the holder(4) from the handlebars. Put
the on-board computer in the holder. Screw the lock-
ing screw(15) (M3 thread, 8mm long) from below
into the corresponding thread in the holder. Mount
the holder back on the handlebars.
Note: The locking screw is not designed to prevent
theft.
English – 5
Bosch eBike Systems 1 270 U20 XBI | (28.02.2019)
EN-70
