To replace the power distributor:
1. Turn off the unit and remove the plug from the wall socket or power strip.
2. Remove all cable connections to the power supply from the motherboard, backplane, and
other components. Also, remove both power supplies.

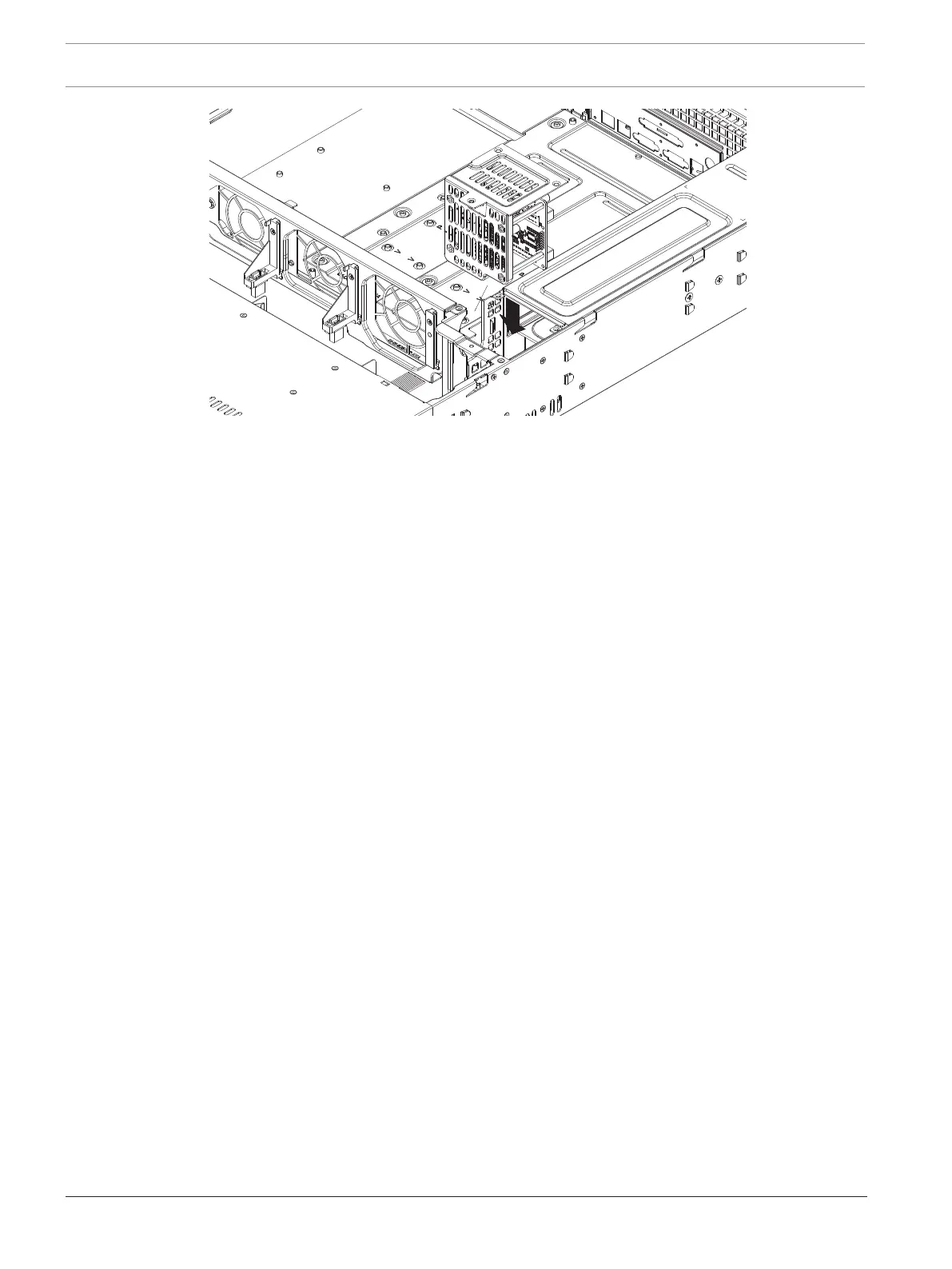

3. Locate the power distributor between the power supply and the fan row.
4. Remove the three screws securing the power supply.
5. Gently pull the power distributor from the chassis. Gently guide all the cables through the
power distributor housing.
6. Slide the new power distributor module into the power distributor housing. Make that
you slide the cables through the bottom of the housing.
7. Reconnect all the power cables, replace the power supply, and insert the plug into the
wall.
10.13 Monitoring the system
The system provides tools for health monitoring.
To activate the monitoring functionality:
1. Turn on the unit and log on as user BVRAdmin. The default screen is displayed.
2. Double-click the SuperDoctor 5 service icon on the screen.
3. Log on to the web interface using the following default credentials:
User Name: ADMIN
Password: ADMIN
4. Click the Configuration tab, then click Password Settings and change the default
password.
5. Click the Configuration tab, then click Alert Configuration.
6. Activate the SNMP Trap feature and specify the IP address of the receiver for SNMP
traps.
10.14 Recovering the unit
Following procedure describes how to restore the factory default image.
To restore the unit to factory default image
1. Turn on the unit and insert the system recovery DVD1.

Bosch DIVAR IP 7000 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi	No
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RAID levels	5, 6
Storage drive size	3.5 \
Storage drive capacity	120 GB
Storage drive interface	-
Installed storage drive type	SSD
Supported storage drive types	HDD & SSD
Total installed storage capacity	0.24 TB
Number of storage drives supported	10
Bus type	QPI
Stepping	C0
Scalability	1S
Processor code	SR14S
Processor cache	8 MB
Processor model	E3-1275V3
System bus rate	- GT/s
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor codename	Haswell
Processor frequency	3.5 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	84 W
On-board graphics card model	Intel® HD Graphics P4600
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Internal memory	8 GB
Memory clock speed	1666 MHz
Internal memory type	DDR3
Thermal solution specification	PCG 2013D
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Intel Identity Protection Technology version	1.00
Chassis type	Rack (2U)
Cooling type	Active
Product color	Black
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	740 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Type	Storage server
Optical drive type	DVD-RW
Operating system installed	Windows Storage Server 2012 R2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
Certification	CE, UL
Processor ARK ID	75464

Weight and Dimensions

Depth	648 mm
Width	437 mm
Height	89 mm
Weight	23600 g
