Bosch DVR-3000 User Manual

Quick install
To get the unit operational, perform the following quick install steps:
1.
Make all the hardware connections – see Connections, page 17.
2. Power up the system – see Powering up, page 20.
3. Log in – see Login, page 21.
4. Correctly configure your system software with the Startup wizard (this appears the first
time the unit is started) – see Startup Wizard, page 21.
After completing this initial setup, the system is ready to run and will show a live view of the
camera image(s). If required, you can alter the settings later using the menus and/or factory
defaults, or you can run the Startup wizard again.
Connections

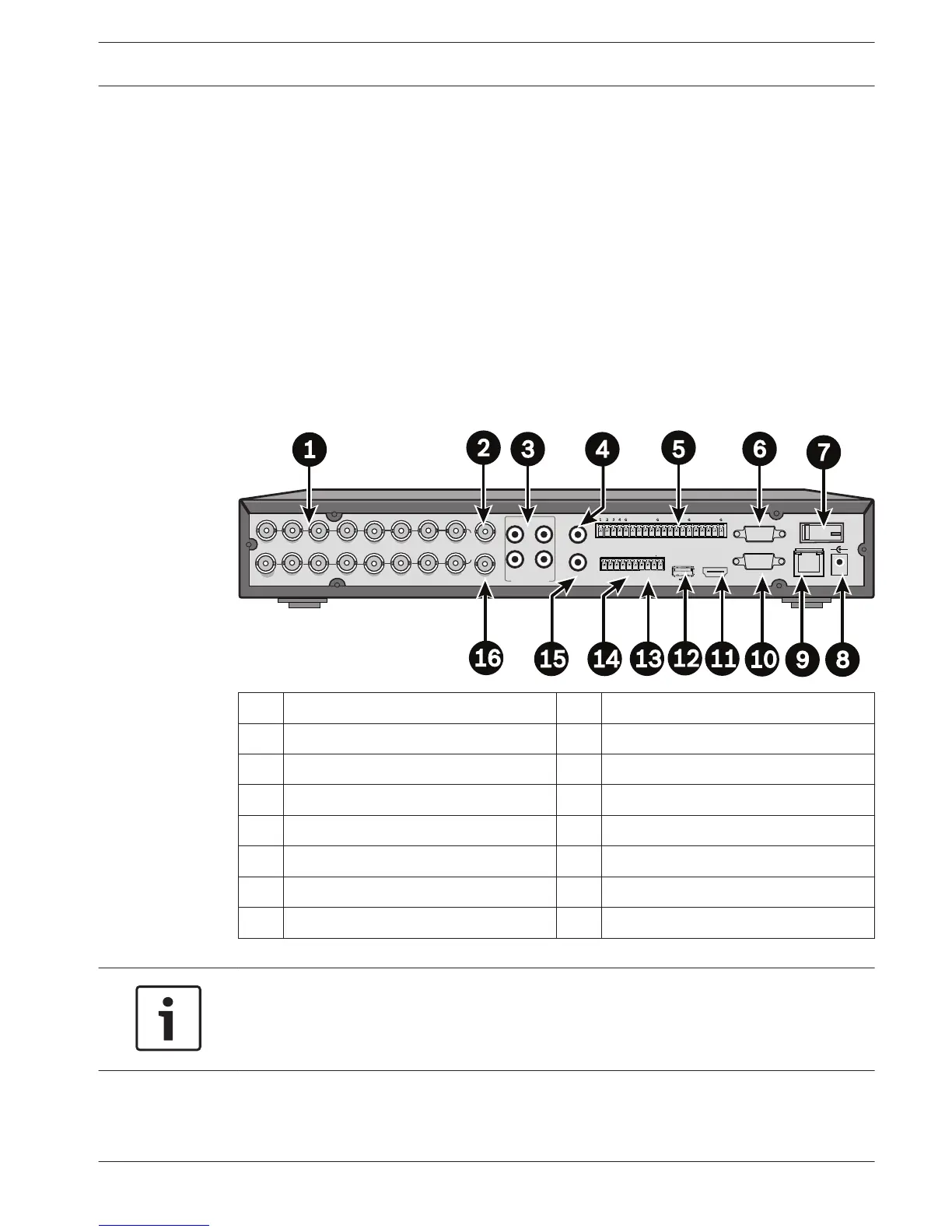

Connections on back of DIVAR 3000 (16-channel version)
12VDC
5
6 7 8 9 10 11 12 13 14 15 16
+
-
1
2
3
4
ALARM OUT
RS-485
A
UDIO OUT
ETHERNET
C3
ALARM IN
G
+
_
G
NO3
NO1 NO2 C2
C1
AUDIO IN
0
ON
OFF
HDMI MON
.A
RS-232
VGA MON.A
MIC IN
1
2
3
4
5
6
7
8
9
1
0
11
12
13
14
15
16
VIDEO IN
CVBS MON. B
CVBS MON. A
1 Camera inputs 9 RJ45 ethernet connector
2 CVBS output - Monitor A 10 VGA output - Monitor A
3 Audio inputs 11 HDMI output - Monitor A
4 Audio output 12 USB connector
5 Alarm inputs 13 RS485 connector for Dome control
6 RS232 connector for Dome control 14 Alarm outputs
7 Power ON/OFF switch 15 Microphone input
8 12 VDC Power connector 16 CVBS output - Monitor B
Notice!
The 4- and 8-channel DIVAR 3000 models have a slightly different back panel. Video in
connectors 5 to 16 for 4-channel are covered, and video out connectors 9 to 16 for 8-channel
are covered.
4
4.1
DIVAR 3000/5000 Digital Video
Recorder
Quick install | en 17
Bosch Security Systems Operator Manual 2013.05 | 1.0 | DIVAR 3000/5000 Digital Video
Recorder
