ENGLISH
L
-+
R
Bosch Rexroth AG
D-97419 Schweinfurt
Made in Germany
7210
CNR: R12345678
TYP: MKR-110-NN-3
CS: 9876543210 0030 0001
FD: 5129
s
max
(mm) u (mm/U) v
max
(m/s) a
max
(m/s
2
) M1
max
(Nm) d i
-- -- -- -- -- -- --
MNR: R055722902
Rexroth
4 1 2 3 5 7
8 9 10 11 12 13 14
15
6
R320103169/2020-08 | Linear modules MKK/MKR-xxx-NN-3 Bosch Rexroth AG 33/62
12 M1
max
Maximum drive torque at motor journal
13 d Direction of motor rotation to move in
positive(+) direction
CW=clockwise
CCW=counterclockwise
14 i Gear ratio
15 QR code(for start-up)
10.1 Easy start-up using the integrated wizard
EasyWizard is the standard wizard integrated in the Rexroth engineering framework IndraWorks DS to help you
start up linear motion system drives easily and quickly. Start-up has never been easier thanks to pre-configured
data sets and aname plate on the linear motion systems that is keyed to the wizard.
• Quick, easy and intuitive start-up
• Text-based and graphic online help for the individual input fields
• Plausibility checks for free data entry
• Compatible with all Rexroth linear motion systems
• Incorrect parameter settings are minimized by the similar arrangement of the data on the name plate and the
wizard input mask
• For system optimization, the axis can be traversed in the test mode after parameterization

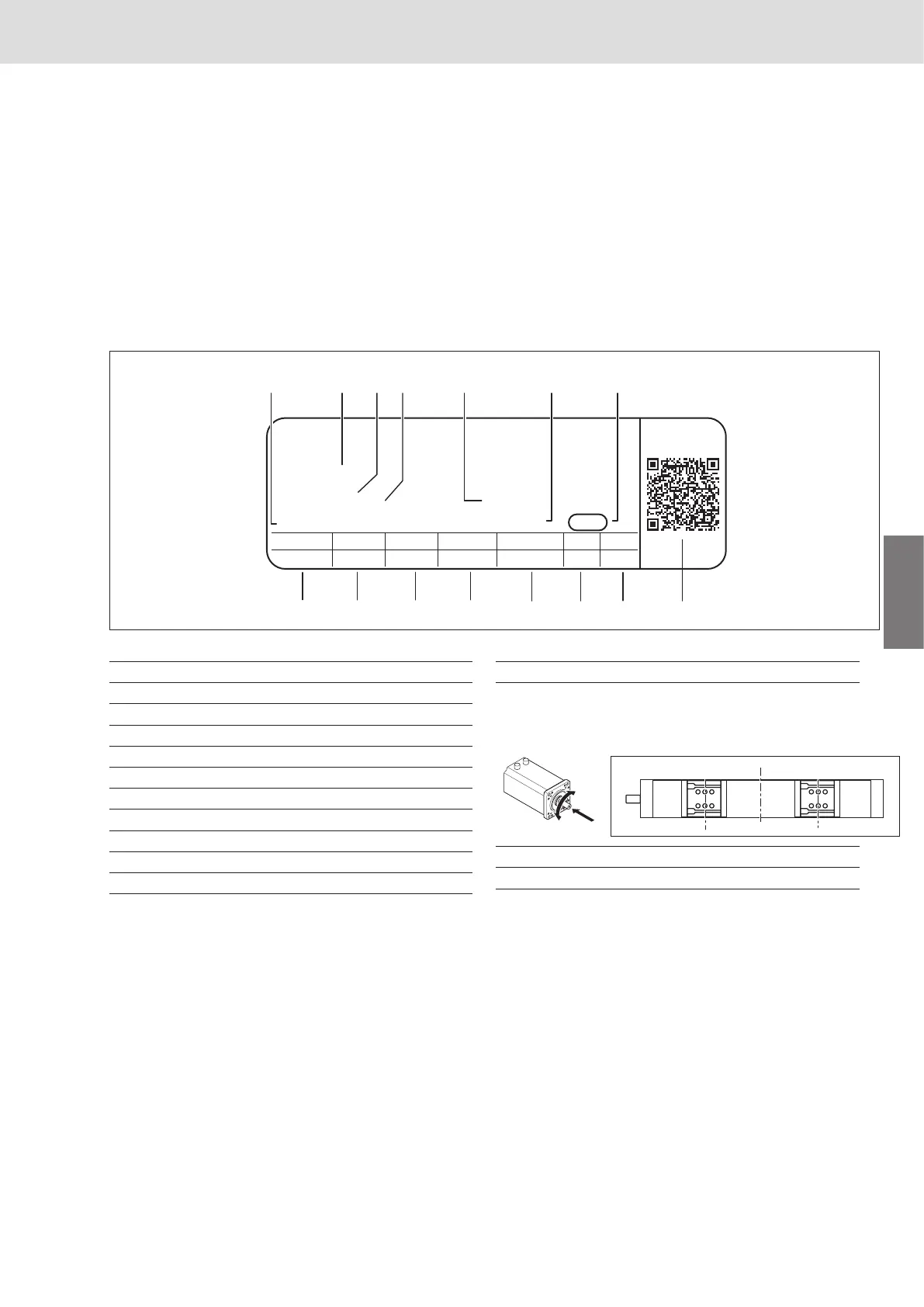

Fig�34: Name plate (example)
10.2 Checking the operating conditions
X Observe ambient temperature, load, travel speed and stroke ! Chapter "Operating conditions" and
"Linearmodules" catalog.
X For special operating conditions, please contact us.
1 CNR Customer's material number
2 TYPE Short product name
3 110 Size
4 CS Customer information
5 MNR Material number
6 FD Date of manufacture
7 7210 Manufacturing location
8 s
max
Maximum travel range
9 u Feed constant without motor attachment
10 v
max
Maximum speed
11 a
max
Maximum acceleration rate
CW
CCW
X
