13.5 Initial lubrication MKx-NN-3
40/62 Bosch Rexroth AG Linear modules MKK/MKR-xxx-NN-3 | R320103169/2020-08
Lubrication version LSS:
Initial lubrication carried out by BoschRexroth.
Linear modules (MKx-165-NN-2) come with initial greasing with Dynalub 510 and are only designed for grease
lubrication using amanual grease gun.
Lube version LCF and LCO:
Specified quantities applied at lube fittings.
Lubrication version LPG:
For the ideal distribution of the lubricant in the ball rail system as well as the ball screw assembly, the basic
lubrication takes place in three partial quantities. After each lubrication with apartial quantity (TM), the
carriage (TT) of the linear axis is moved with three double strokes. The double stroke should be larger than 3
times the carriage length.
Procedure for the basic lubrication:
1. Pre-lubricate the linear module with apartial quantity 1 (TM1) by slowly applying pressure to the grease gun.
2. Move the carriage three times with the double stroke (DH) at aslow speed (<0.5 m/s).
3. Pre-lubricate the linear module with apartial quantity 2 (TM2) by slowly applying pressure to the grease gun.
4. Repeat steps 2 and 3.

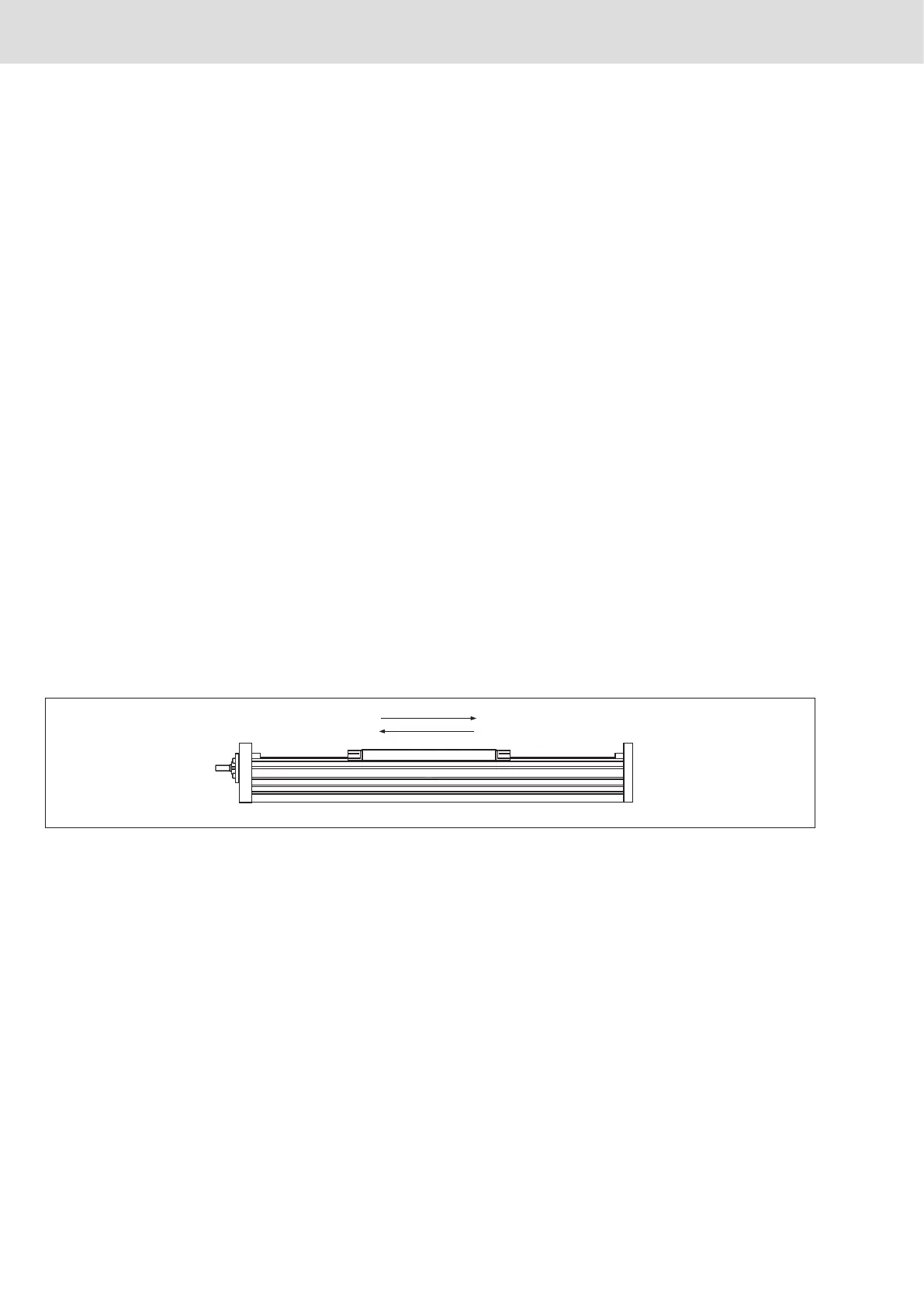

Fig�37: Double stroke
f Pay attention to the notes on lubrication ! 13
f Lubricants
! 13.3
f Lube fittings
! 13.4
f Note the operating conditions
! 17
