Bosch MKK-040 User Manual

2b
2a
1b
1a
1b
3b
1a
3a
MKK-xxx-NN-3 MKR-040/-065/-080/-110/-140-NN-3 MKR-145-NN-3
1b
1a
1a / 1b lube fitting (lubrication point) for ball runner block (MKK / MKR), for cam roller runner block (MLR):
2a / 2b lube fitting (lubrication point) for ball screw assembly (MKK)
3a / 3b lube fitting (lubrication point) (in addition to lube fitting 1a/1b) for ball runner block (MKR-145-NN-3);
4a / 4b lube fitting (lubrication point) for ball runner block (MKK / MKR -165-NN-2) and ball screw assembly (MKK-165-NN-2)
Lubrication via funnel-type lube nipples DIN 3405-A at the respective lube fitting. Optionally side aor b.
38/62
Bosch Rexroth AG Linear modules MKK/MKR-xxx-NN-3 | R320103169/2020-08
Lubrication version LSS LPG LCF
LCO
Size MKx-065 / -080 / -110 /
-140 / -145
MKx-040 MKx-065 / -080 / -110 /
-140 / -145
MKx-040 MKx -040 / -065 / -080 / -110 / -140 / -145
MKx -040 / -065 / -080 / -110 / -140 / -145
Basic lubrication
Dynalub 510
Dynalub 520
Preserved, basic lubrication required
(seeinstructions)
required, see instructions
required, see instructions
Consistency class
NLGI 2 (DIN51818)
NLGI 00 (DIN 51818)
– NLGI 00 (DIN 51818)
–
Identification
KP2K-20 (DIN51825)
GP00K-20 (DIN51826)
– GP00K-20 (DIN51826)
–
Lubrication with grease gun
yes
yes
yes –
–
Prepared for connection to
central lubrication systems
–
• only via single-line piston distributor system
• smallest permissible piston distributor size:
MKx -040, -065, -080, -145: 0.2 cm
3
; MKx -110, -140: 0.3
cm
3
• only via single-line piston distributor system
• smallest permissible piston distributor size:
MKx -040, -065: 0.2cm
3
; MKx -080: 0.4 cm
3
; MKx -110, -140, -145:
0.6 cm
3
Recommended lubricants
Dynalub 510
(Grease lubricant)
(NLGI2 DIN51818)
Dynalub 520
(Liquid grease)
(NLGI00 DIN 51818)
Dynalub 510
(Grease lubricant)
(NLGI2 DIN51818)
Dynalub 520
(Liquid grease)
(NLGI00 DIN 51818)
Dynalub 520 (liquid grease)
(NLGI00 DIN51818)
Shell Tonna S3 M220 (lubricant oil)
Features
• Good water resistance
• Corrosion protection
• Temperature range: -20 to +80 °C
• Good water resistance
• Corrosion protection
• Temperature range: -20 to +80 °C
• Special demulsifying oil CLP or CGLP as per DIN51517-3 for
machine bed tracks and tool guides
• A blend of highly refined mineral oils and additives
• Can be used even when mixed with significant quantities of
metalworking fluids
Material numbers
R3416 037 00
(400 g cartridge)
R3416 043 00
(400 g cartridge)
R3416 037 00
(400 g cartridge)
R3416 043 00
(400 g cartridge)
R3416 043 00
(400 g cartridge)
–
R3416 035 00
(25 kg container)
R3416 042 00
(5 kg bucket)
R3416 035 00
(25 kg container)
R3416 042 00
(5 kg bucket)
R3416 042 00
(5 kg bucket)
–
Alternative lubricants
• Tribol GR 100-2 PD
• Elkalub GLS 135/N2
• Tribol GR 100-00 PD
• Elkalub GLS 135/N00
• Tribol GR 100-2 PD
• Elkalub GLS 135/N2
• Tribol GR 100-00 PD
• Elkalub GLS 135/N00
• Dynalub 520
• Klüberplex BEM 34-132
• Tribol GR 100-00 PD
• Elkalub GLS 135/N00
• Tribol GR 100-00 PD
• Elkalub GLS 135/N00
• Special demulsifying oil CLP or CGLP as per DIN51517-3
for machine bed tracks and tool guides
Alternative lubricants with H1
approval
–
• Berulub FG H2 SL
• Cassida Grease EPS2
• VP 874
• Berulub FB 34-00
• Elkalub GLS 367/N00
–
–

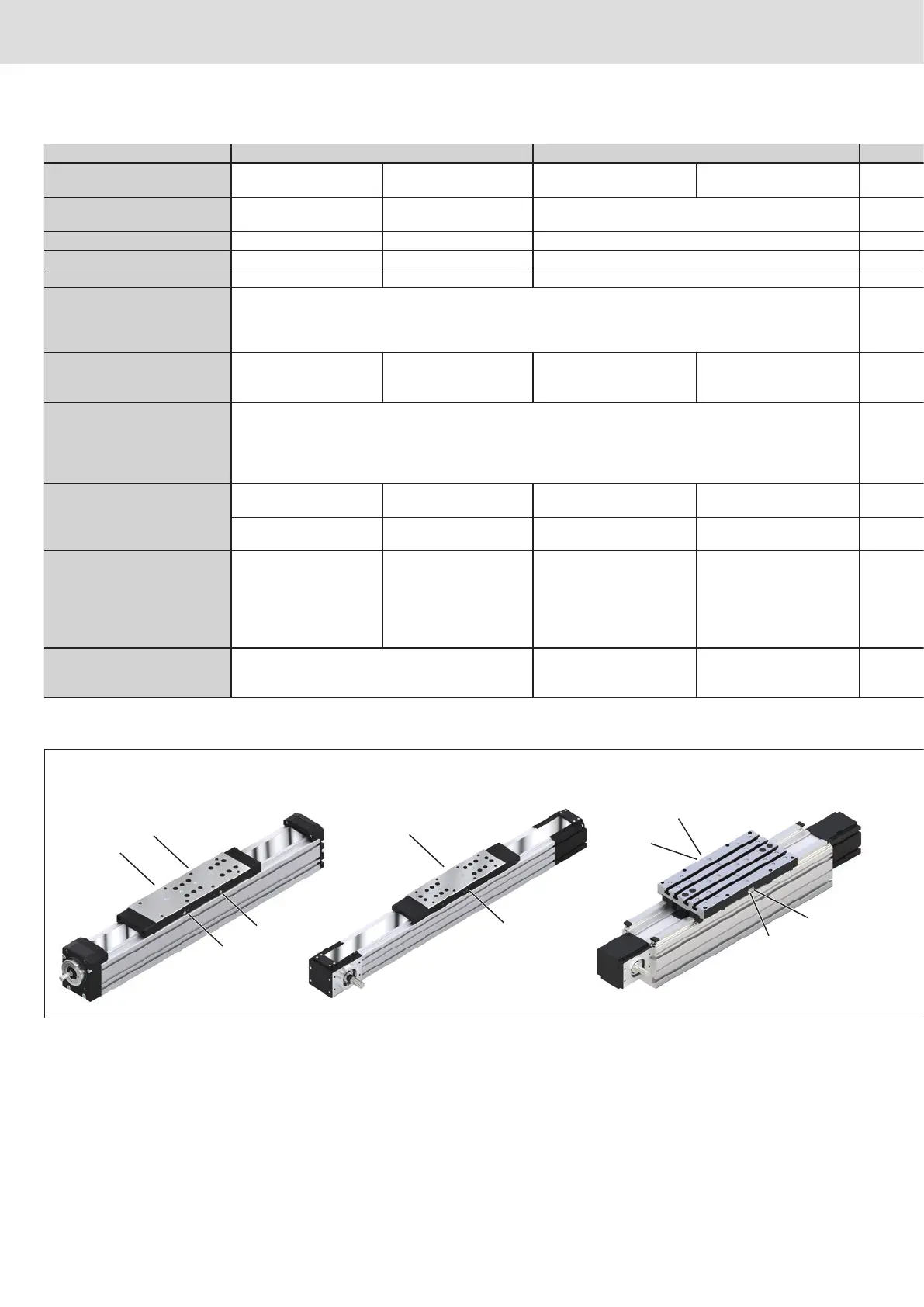

Fig�36: Lube fittings/lubrication points
Table 8: Lubricants MKx-NN-3
13.3 Lubricants
13.4 Lube fittings
