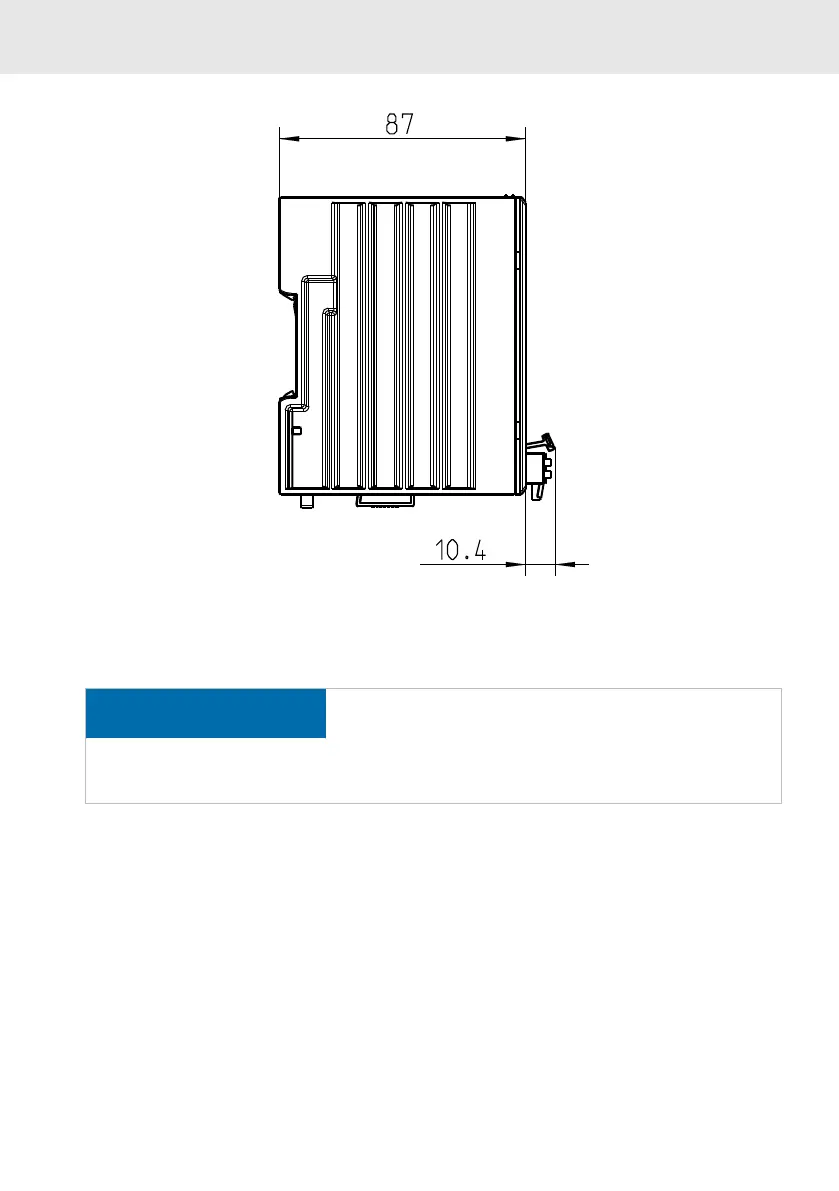

Fig. 6: Side view
10.2 Installation notes
NOTICE
Destruction of the device due to electrostatic discharge
The device contains components that can be damaged or
destroyed by electrostatic discharge. Comply with the required
safety measures against electrostatic discharge (ESD) acc. to EN
61340-5-1 when operating the control.
• Mounting location
The control has the degree of protection IP20 and is thus intended for the use in a closed control
cabinet or control box (terminal box) of the degree of protection IP54 or higher.
•
Mounting rail
Mount the control on a 35 mm standard mounting rail. Only use a mounting rail with an design
height of 7.5 mm (corresponds to TH 35-7.5 acc. to EN 60715).
The fastening distance of the mounting rails may not exceed 200 mm. This distance is required to
ensure stability while mounting and dismounting the control.
