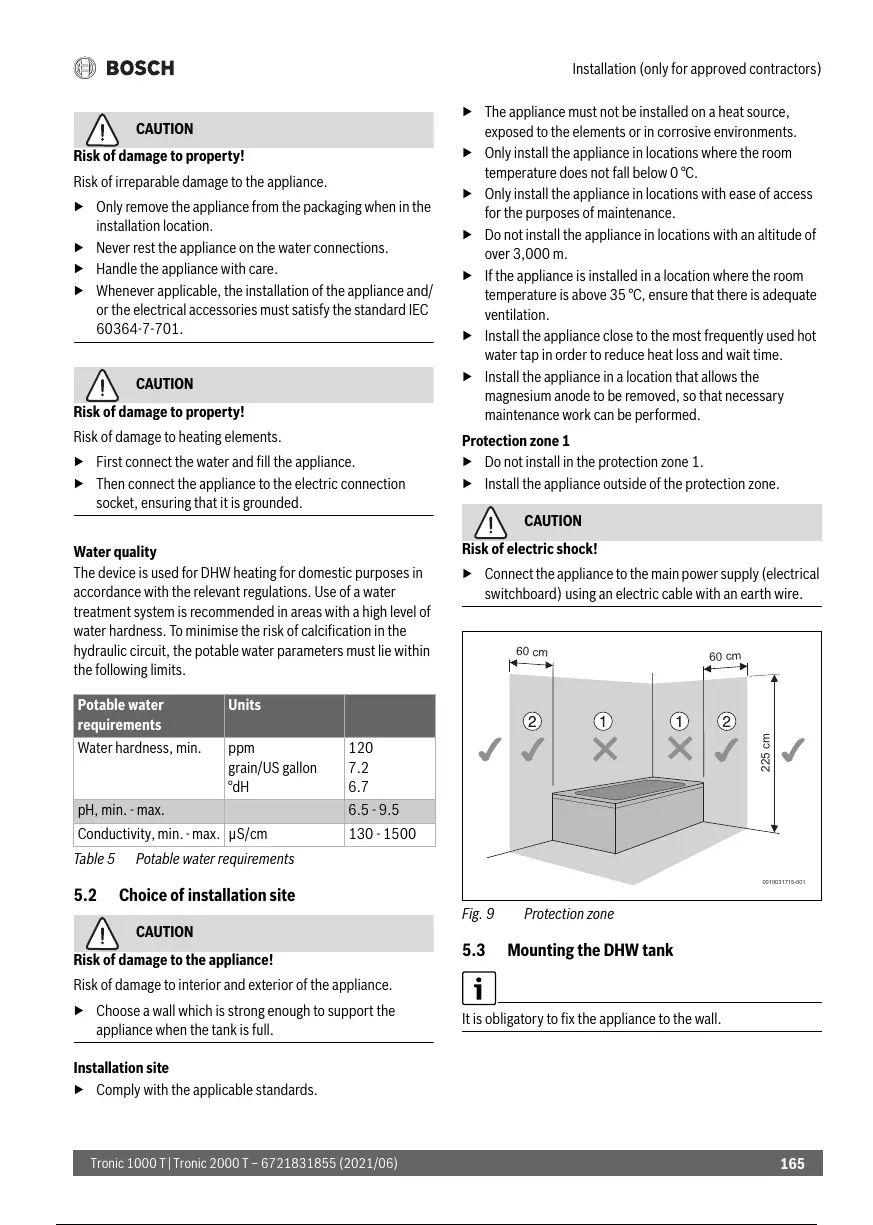

Installation (only for approved contractors)
165
Tronic 1000 T | Tronic 2000 T – 6721831855 (2021/06)
CAUTION
Risk of damage to property!
Risk of irreparable damage to the appliance.
Only remove the appliance from the packaging when in the
installation location.
Never rest the appliance on the water connections.
Handle the appliance with care.
Whenever applicable, the installation of the appliance and/
or the electrical accessories must satisfy the standard IEC
60364-7-701.
CAUTION
Risk of damage to property!
Risk of damage to heating elements.
First connect the water and fill the appliance.
Then connect the appliance to the electric connection
socket, ensuring that it is grounded.
Water quality
The device is used for DHW heating for domestic purposes in
accordance with the relevant regulations. Use of a water
treatment system is recommended in areas with a high level of
water hardness. To minimise the risk of calcification in the
hydraulic circuit, the potable water parameters must lie within
the following limits.
Table 5 Potable water requirements
5.2 Choice of installation site
CAUTION
Risk of damage to the appliance!
Risk of damage to interior and exterior of the appliance.
Choose a wall which is strong enough to support the
appliance when the tank is full.
Installation site
Comply with the applicable standards.
The appliance must not be installed on a heat source,
exposed to the elements or in corrosive environments.
Only install the appliance in locations where the room
temperature does not fall below 0 °C.
Only install the appliance in locations with ease of access
for the purposes of maintenance.
Do not install the appliance in locations with an altitude of
over 3,000 m.
If the appliance is installed in a location where the room
temperature is above 35 °C, ensure that there is adequate
ventilation.
Install the appliance close to the most frequently used hot
water tap in order to reduce heat loss and wait time.
Install the appliance in a location that allows the
magnesium anode to be removed, so that necessary
maintenance work can be performed.
Protection zone 1
Do not install in the protection zone 1.
Install the appliance outside of the protection zone.
CAUTION
Risk of electric shock!
Connect the appliance to the main power supply (electrical
switchboard) using an electric cable with an earth wire.
Fig. 9 Protection zone
5.3 Mounting the DHW tank
It is obligatory to fix the appliance to the wall.
Potable water
requirements
Units
Water hardness, min. ppm
grain/US gallon
°dH
120
7.2
6.7
pH, min. - max. 6.5 - 9.5
Conductivity, min. - max. µS/cm 130 - 1500
60 cm
60 cm
225 cm
0010031715-001
166 / 242 165 / 240 166 / 242
