Installation (only for approved contractors)
Tronic 1000 T | Tronic 2000 T – 6721831855 (2021/06)
166
NOTICE
Risk of damage to property!
Use screws and supports with specifications above the
weight of the appliance when the tank is full and which are
appropriate for the type of wall.
Vertical installation

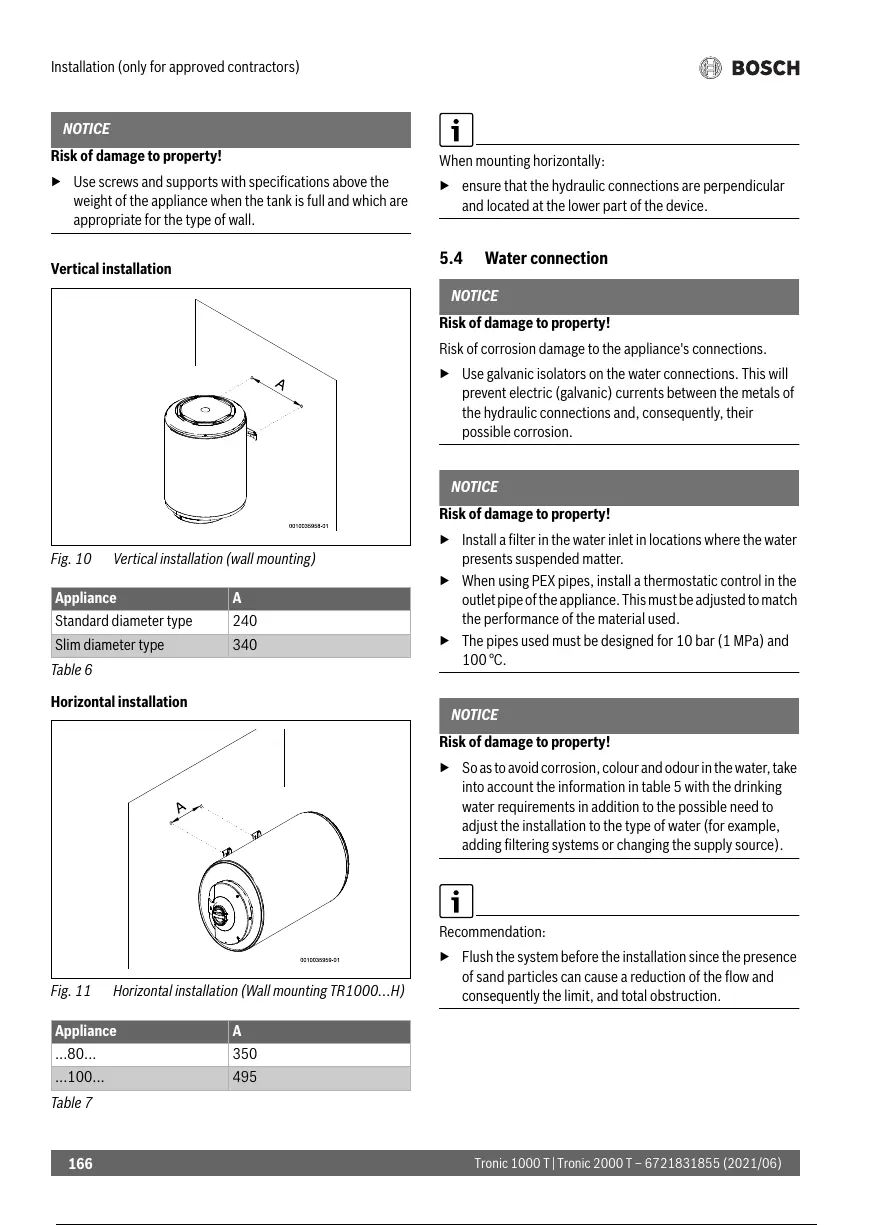

Fig. 10 Vertical installation (wall mounting)
Table 6
Horizontal installation
Fig. 11 Horizontal installation (Wall mounting TR1000...H)
Table 7
When mounting horizontally:
ensure that the hydraulic connections are perpendicular
and located at the lower part of the device.
5.4 Water connection
NOTICE
Risk of damage to property!
Risk of corrosion damage to the appliance's connections.
Use galvanic isolators on the water connections. This will
prevent electric (galvanic) currents between the metals of
the hydraulic connections and, consequently, their
possible corrosion.
NOTICE
Risk of damage to property!
Install a filter in the water inlet in locations where the water
presents suspended matter.
When using PEX pipes, install a thermostatic control in the
outlet pipe of the appliance. This must be adjusted to match
the performance of the material used.
The pipes used must be designed for 10 bar (1 MPa) and
100 °C.
NOTICE
Risk of damage to property!
So as to avoid corrosion, colour and odour in the water, take
into account the information in table 5 with the drinking
water requirements in addition to the possible need to
adjust the installation to the type of water (for example,
adding filtering systems or changing the supply source).
Recommendation:
Flush the system before the installation since the presence
of sand particles can cause a reduction of the flow and
consequently the limit, and total obstruction.
Appliance A
Standard diameter type 240
Slim diameter type 340
Appliance A
...80... 350
...100... 495
167 / 242 166 / 240 167 / 242
