VPV Vane Pump 39

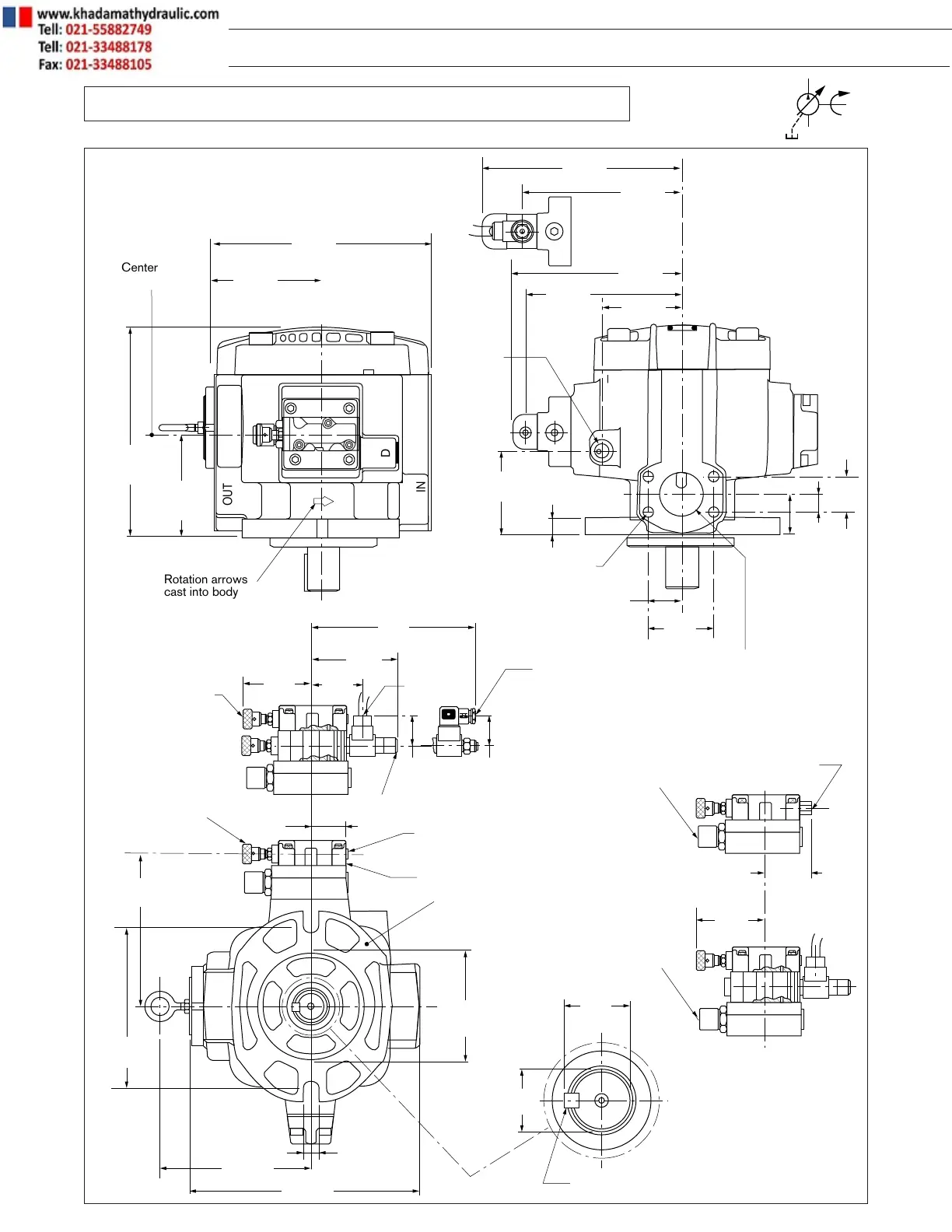

VPV 100/130/164, Single pump, S.A.E. ‘D’ flange, RH rotation
,y
,yz
z
,y
,yz
z
,y
,yz
z
z
,y
{
{|
|
,y
,y
,y
D
IN
OUT
Rotation arrows
cast into body
Centerline of
pump control
1.94
(49.3)
3.82
(97.0)
4.24
(107.8 )
3.89
(99.0)
2.78
(70.8)
4.70
(119.4)
ø1.75
(ø44.4)
0.44
square key
(11.1)
1.67
(42.5)
1.65
(42.0)
SCALE: 2X
2.66
(67.7)
1.91
(48.6)
SINGLE STAGE CONTROL
NOT AVAILABLE ON VPV 45-164
Optional 2 pressure
solenoid operated
vent compensator
Optional 2 pressure
solenoid operated
compensator
Manual override
pushpin
1/2" conduit
connector
(Optional)
DIN 43650 connector
w/ 1/2" NPT compression
fitting and sentinal light
Optional 2 stage with
load compensator
Load sense port
#4 S.A.E.
2 stage compensator
Remote control port
7/16 – 20 UNF, 0.45 deep
ø6.00
(ø152.4)
12.80
(325.0)
0.81
(20.7)
typ.
8.41
(213.7)
SAE "D" mounting flange
8.62
(219.1)
9.00
(229.0)
Compensator
adjusting knob
(CW rotation
increases
pressure setting)
5.77
(146.6)
11.53
(292.9)
12.11
(307.6)
6.06
(153.8)
8.85
(224.7)
11.09
(281.7)
Case
drain port
#8 SAE
4.72
(120.0)
0.95
(24.0)
1.00
(25.4)
2.25
(57.0)
1.75
(44.4)
1/2" -13 UNC, 28 deep,
4 holes
Std SAE 2-1/2" pad suction
2.47
DIA
(62.7)
2.00
(50.8)
4.39
(111.6)
9.36
(237.8)
8.67
(220.2)
3.50
(88.9)
Inches (millimeters)
